Alcatel Vacuum Technology France --- IPUP A100 Instruction manual
Unpacking / Handling / Storage
PRECAUTIONS
l If the equipment has been damaged, take necessary steps with the
carrier and inform Alcatel, if necessary. In all cases, Alcatel
recommends that the packaging be kept, in the event that the
equipment needs to be transported or put into prolonged storage.
l Risk of tilting: compliance with the EEC safety rules is guaranteed
(normal range ± 10°). However, precautions should be taken against
the risk of tilting during product handling, installation and operation.

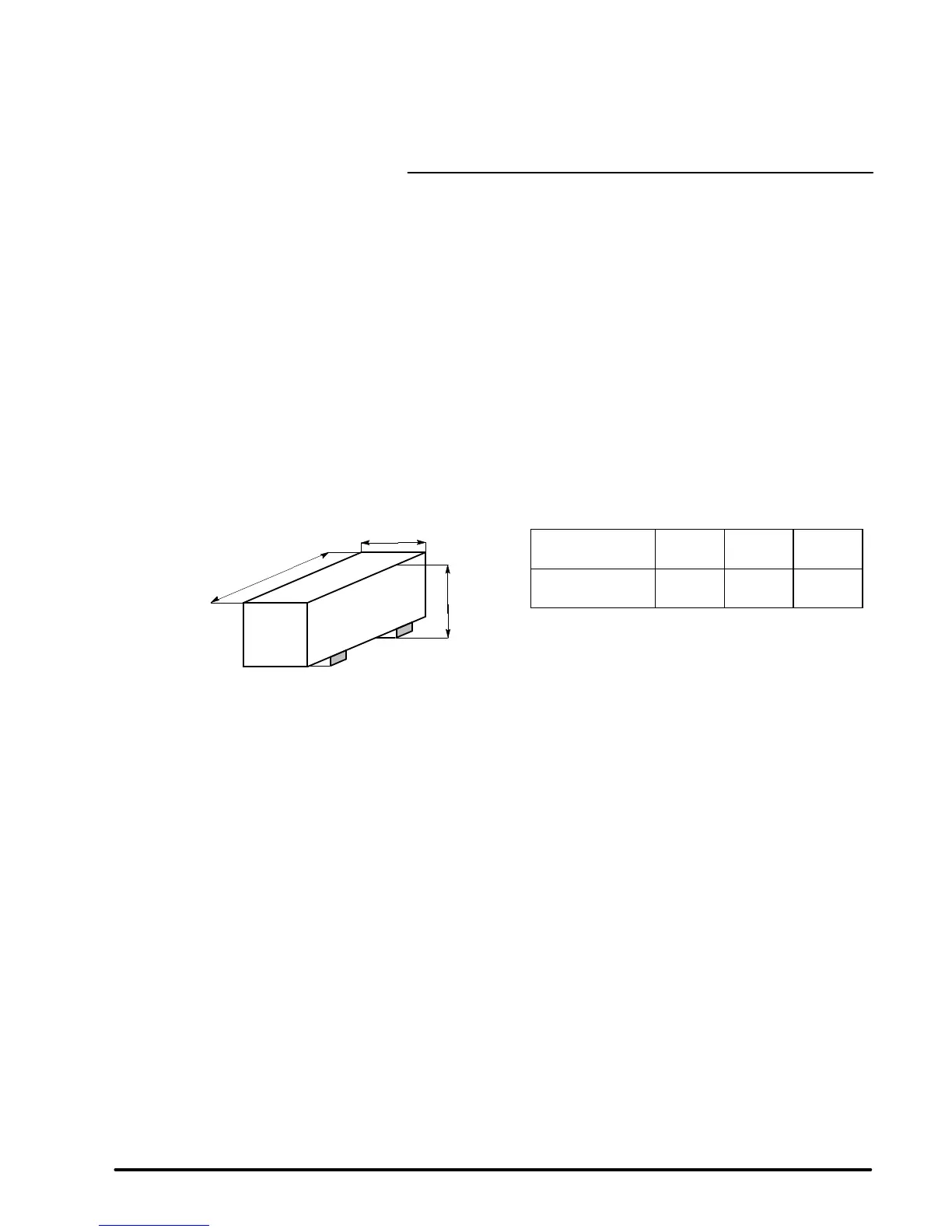

PACKAGING DIMENSIONS
inch ± 2
(mm±50)
A B C
IPUP A100 33.66
(855)
22.05
(560)
17.91
(455)
UNPACKING
Open the crate.
Remove additional packages from the crate and set aside.
These packages contain:
l 3 C HC M8---16 screws,
l 3 M8 washers,
l 3 shackles 8430 WMA 107,
l 1 label ”this product complies with our final quality tests”,
l 1 female nipple 1/4 SH2 63 Y PARKER,
l 1 male nipple 1/4 SH2 63 Y PARKER,
l 1 desiccant for packing “dydragyl”,
l 1 bracket,
l 2 CS M3---8 screws,
l 1 power electrical cable,
l 1 instruction manual.
