Positioning the pump in the
pumping installation
POSITIONING THE PUMP
(CONT’D)
Each pump is equipped with four locking screw jacks. Lock the pump
by adjusting these jacks so that all four feet are resting solidly on the
floor.

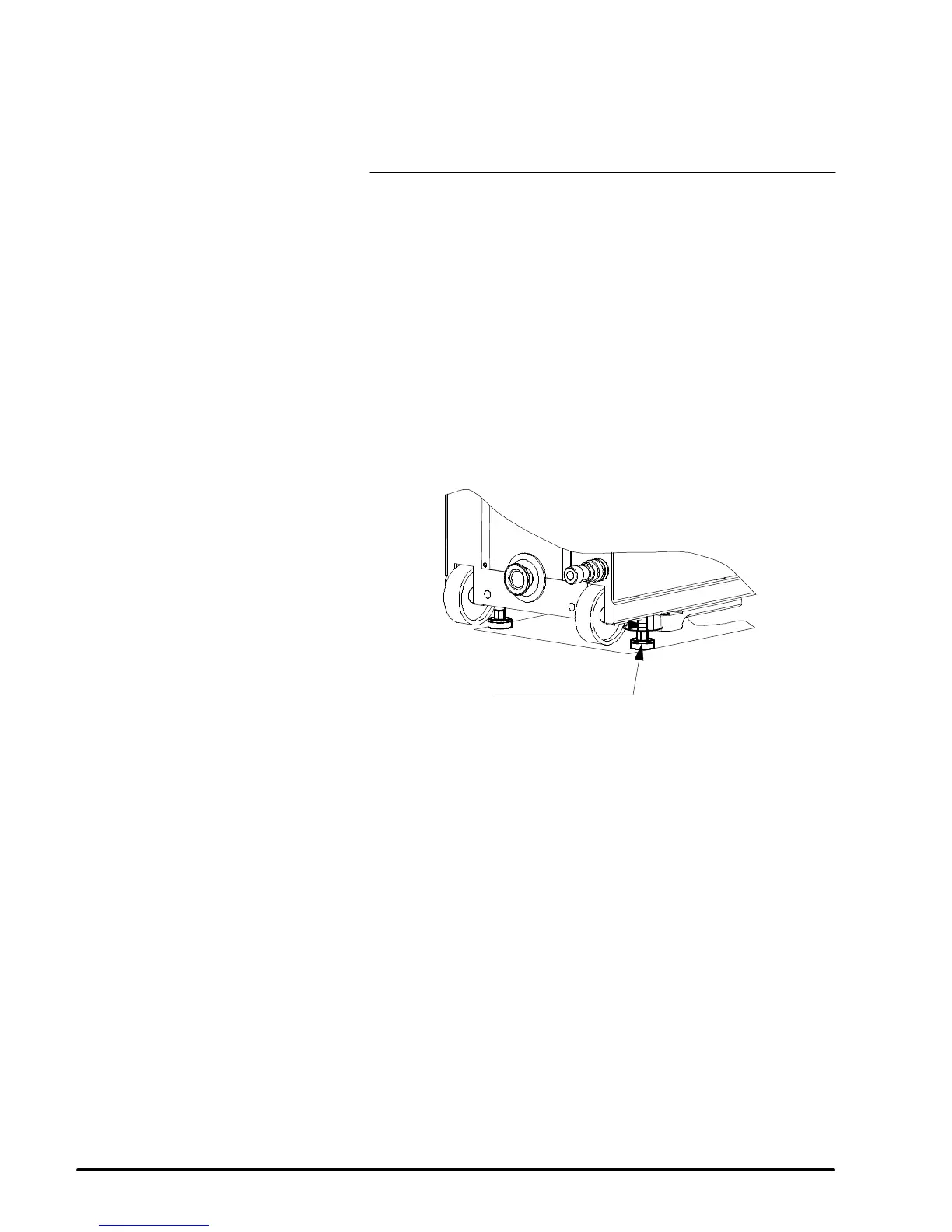

Locking screw jacks
Pump stacking
The pump design enables up to 2 pumps to be stacked without
specific frame accessories.
l Check that the six brackets are correctly secured (3 on the top of
the pump cover and 3 under the pump frame).
l Lock the lower pump by adjusting its jacks solidly on the floor.
l Raise the upper pump using the four screw jacks. The wheels
should not be in contact with the floor.
l Lift the upper pump (as described in B 10) and position it on the
lower pump cover.
l Check that the upper pump screw jacks are positioned in the four
provided bases located on the lower pump cover.
H Lock the upper pump by adjusting its jacks solidly on the lower
pump cover.
H Secure the stacked pump by screwing a CHc M8 screw in each
assembly bracket
