Alcatel IPUP A100 - Inert Gas Purge Connection (N2)

CAUTION
!
B 40
Alcatel Vacuum Technology France --- IPUP A100 Instruction manual
1 / 2
Inert gas purge connection
(N
2
connection)
NITROGEN CHARACTERISTICS
(IPUP A100P VERSION ONLY)
For maximum performances, a filtered dry nitrogen supply with the
following characteristics is required:
l Condensation point < 22° C
l Dust < 1 µm
l Oil < 0.1 ppm
l Pressure between 30 and 105 absolute PSIG (2 and 7 absolute bar)
l Flowrate (see A 40)
A sudden inrush of N
2
into the pressurization circuit may
result in damage to internal parts.
Close the pressure regulator by turning the knob
counter--clockwise before pressurizing the circuit.

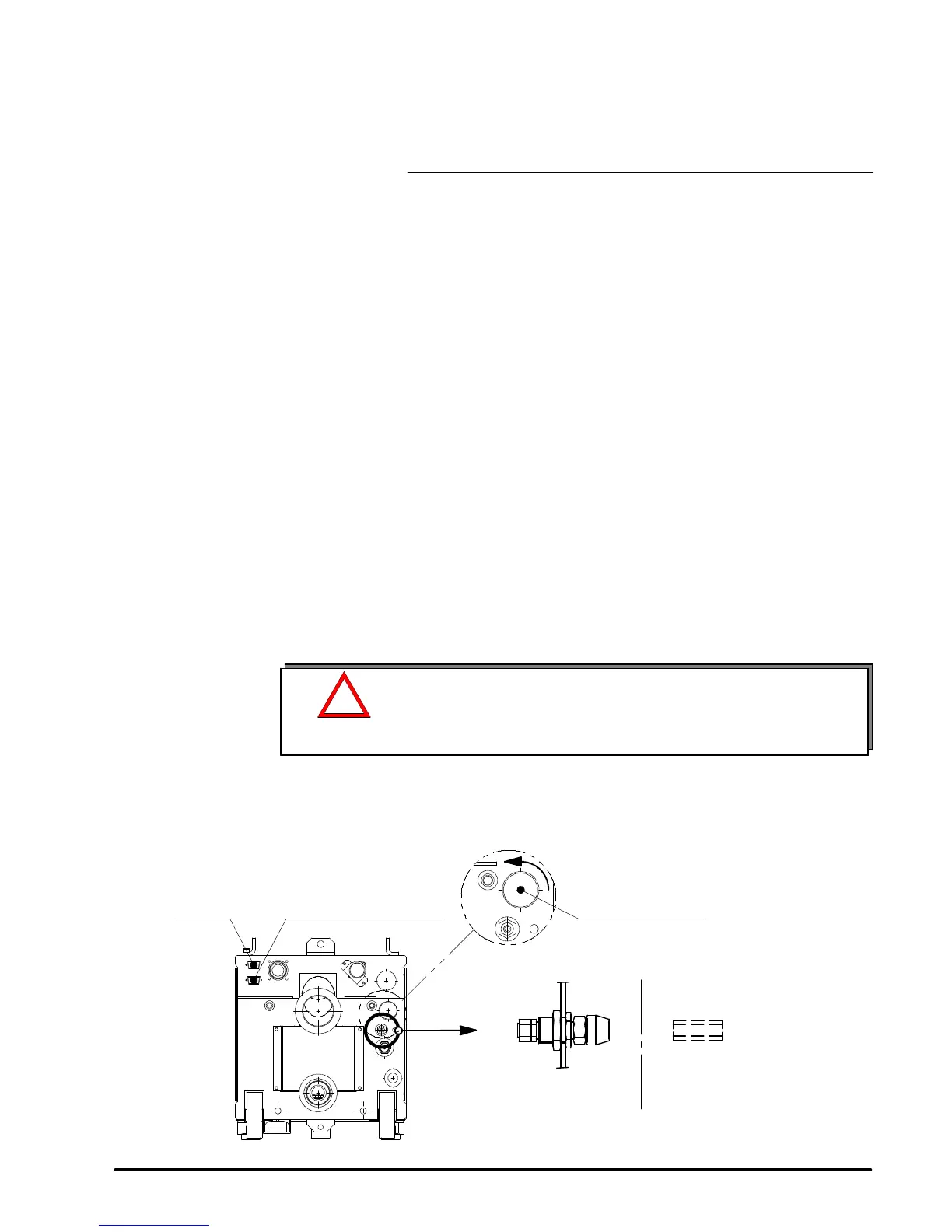

CONNECTION
1/4 Swagelock
Pipe 6.35 mm OD
Supplied in the pump
R
e
a
r
p
a
n
e
l
Pressure regulatorReserved for future useRS 485
1/4 inch tubing
Supplied by the customer
