- 23 -

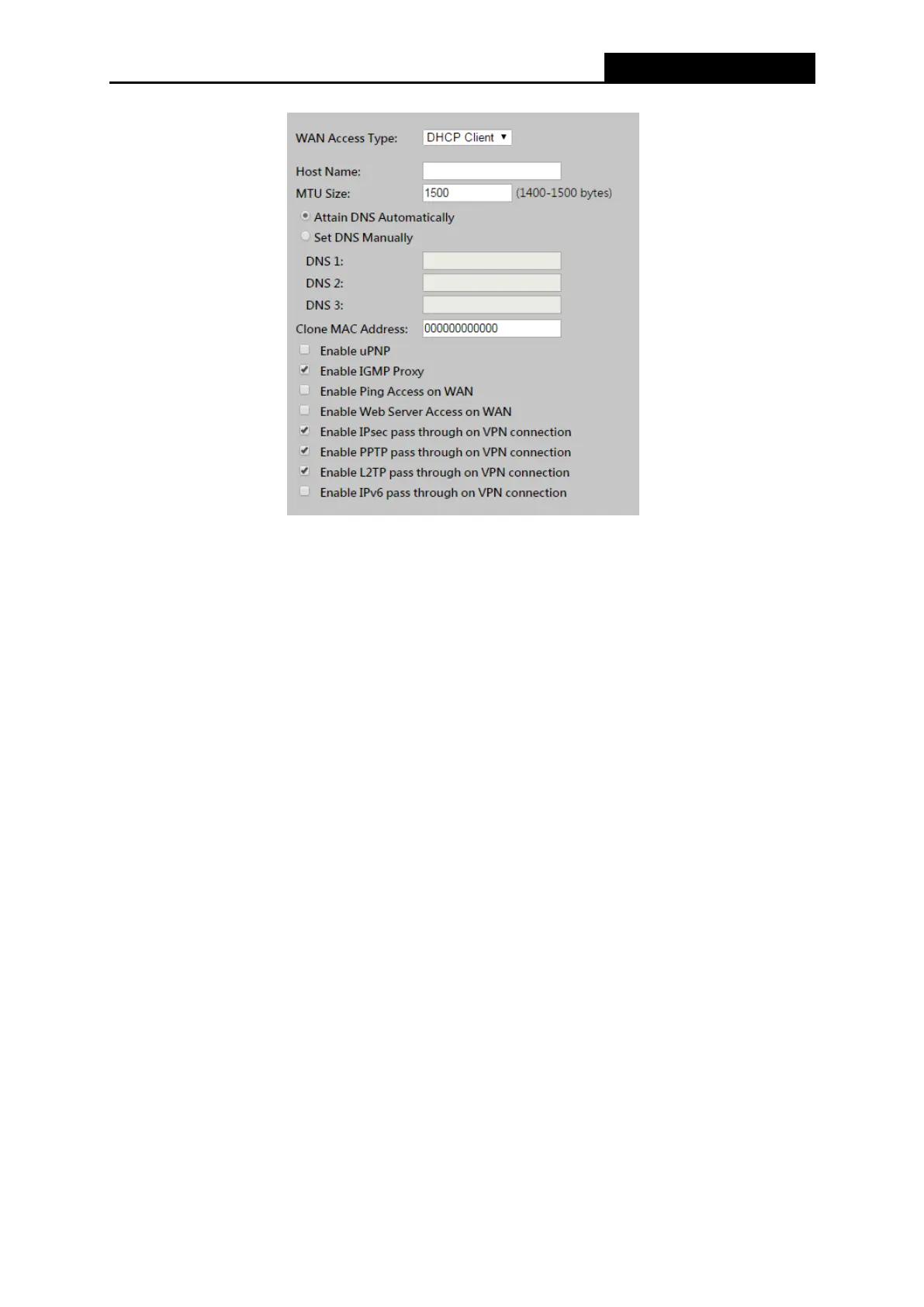

Figure 4-8 WAN – Dynamic IP
Host Name – Enter the host name provided by your ISP, default value is blank.
MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks
is 1500 Bytes. It is not recommended that you change the default MTU Size unless required
by your ISP.
Attain DNS Automatically – Receives DNS address automatically from the ISP.
Set DNS Manually - If your ISP gives you one or two DNS addresses, select Set DNS
Manually and enter the primary and secondary addresses into the correct fields. Otherwise,
the DNS servers will be assigned dynamically from your ISP.
Note:
If you find an error message on the website after entering the DNS addresses, it is likely that
your DNS server has been set up improperly. You should contact your ISP to get DNS server
addresses.
3. If your ISP provides a PPPoE connection, select PPPoE option and enter the following
parameters (Figure 4-9):
