Timy3 - General
-4-

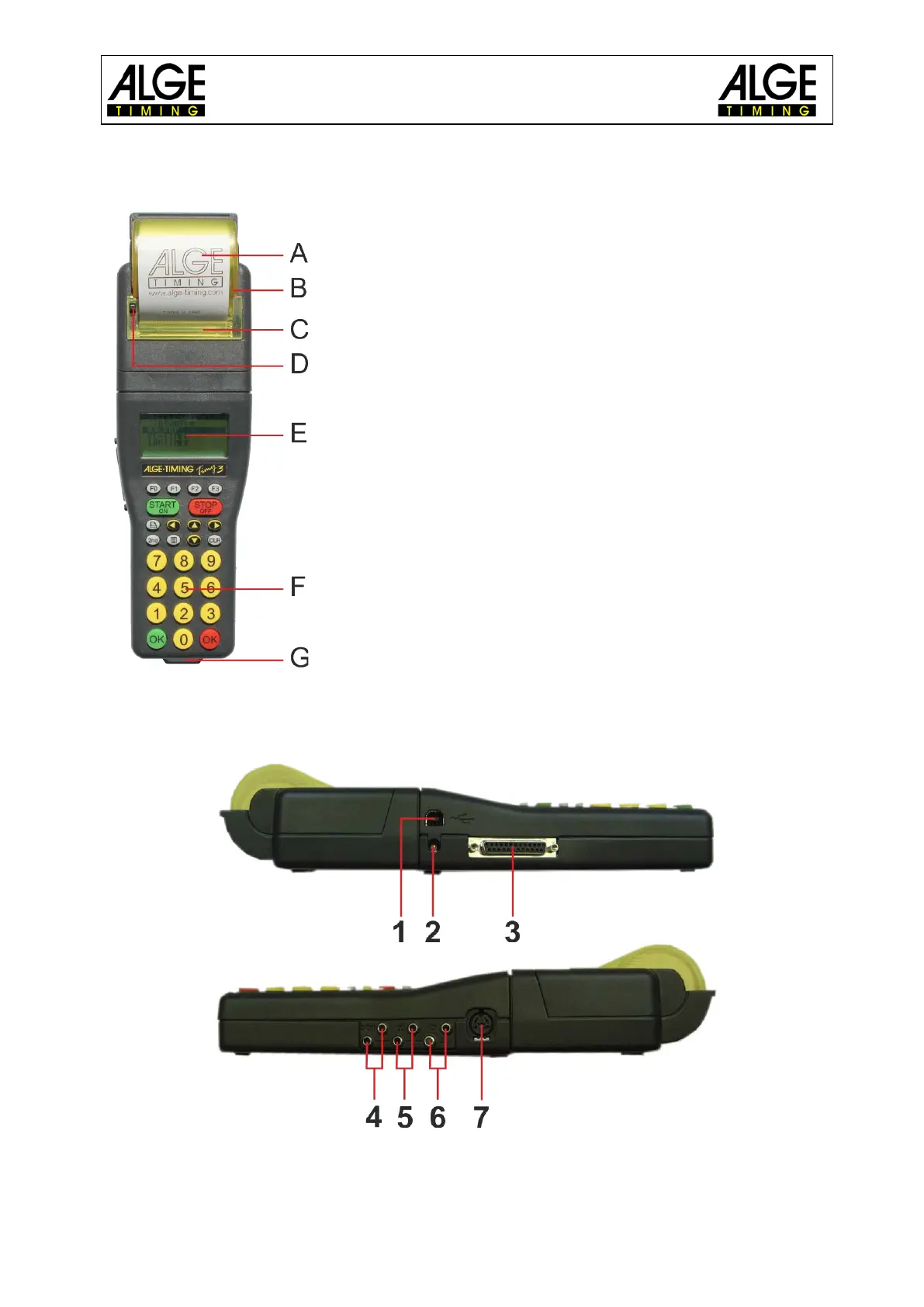

Control elements
A .......... paper roll
B .......... thermal printer
C .......... printer hood
D .......... printer hood opener
E .......... LCD graphic display
F .......... silicon keyboard
G .......... carrying band eyelet
1 ........... USB interface
2 ........... charging socket
3 ........... ALGE-TIMING multiport
4 ........... connection for display board
5 ........... connection for start impulse
6 ........... connection for finish impulse
7 ........... standard ALGE-TIMING photocell
socket
