The full instruction manual can be found on the CD which accompanied the DVR.

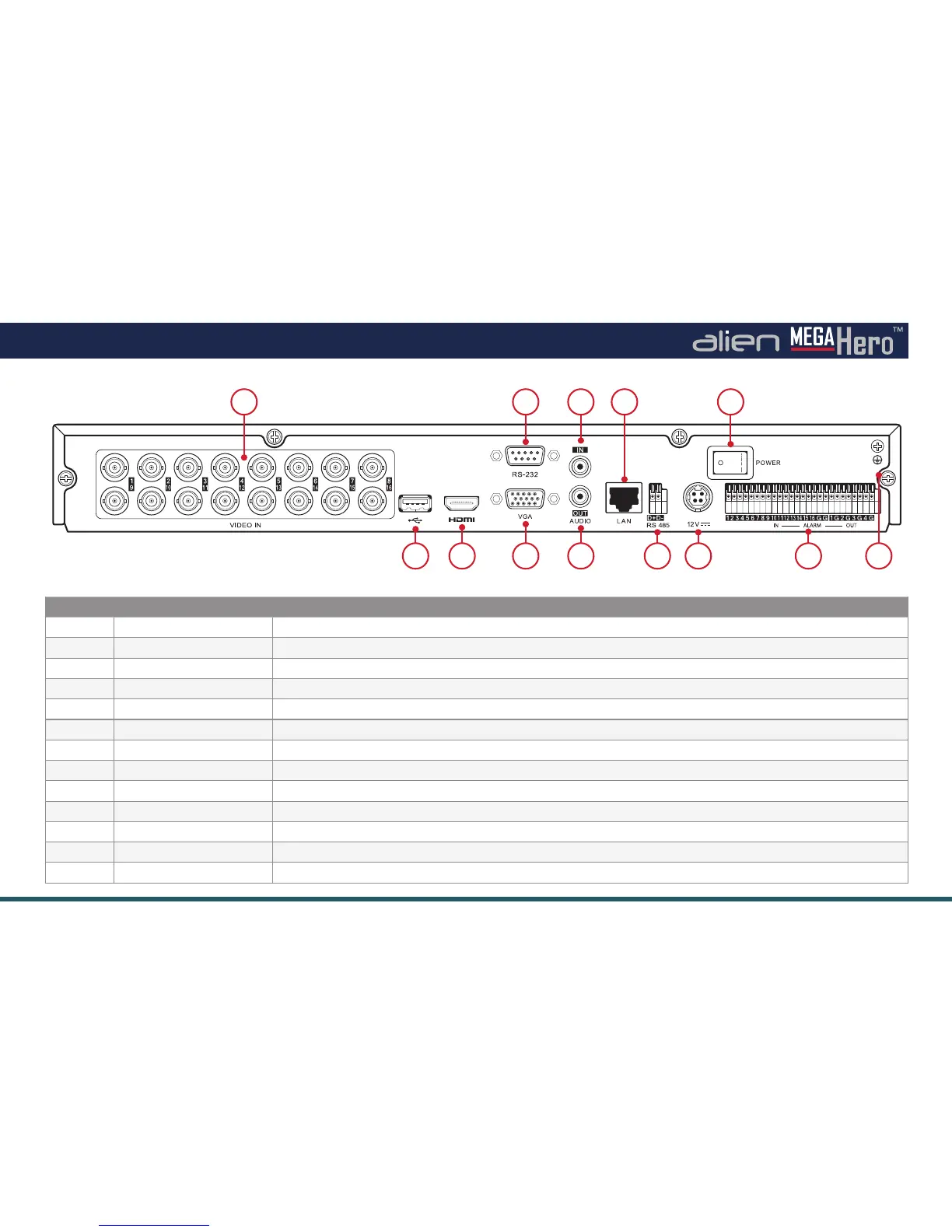

Rear Connections - 16ch
No. Name Function / Description
1 VIDEO IN 16 BNC connectors for analogue & HD-TVI video input.
2 RS232 Connector for RS232 devices such as the VoiceO
(
see pg53
)
.
3 AUDIO IN RCA/Phono connector for audio input.
4 LAN Interface Connector for LAN
(
Local Area Network
). Also used for connecting IP cameras
.
5 POWER Switch for turning the device on/o.
6 USB Interface Connects USB mouse or USB ash memory devices.
7 HDMI HDMI video output.
8 VGA DB15 connector for VGA output. Display local video output and menu.
9 AUDIO OUT RCA/Phono connector for audio output.
10 RS485 Interface Connector for RS485 devices. Connect the D+ and D- terminals to T+ and T- of PTZ receiver respectively.
11 12V 12VDC power supply.
12 Alarm In/Out Connection for 16 alarm inputs and 4 alarm outputs.
13 GND Ground
(
needs to be connected when DVR starts up
)
.
1 2 3 4 5
6 7 8 9
11 12 1310
MegaHero 16ch Rear Connections
