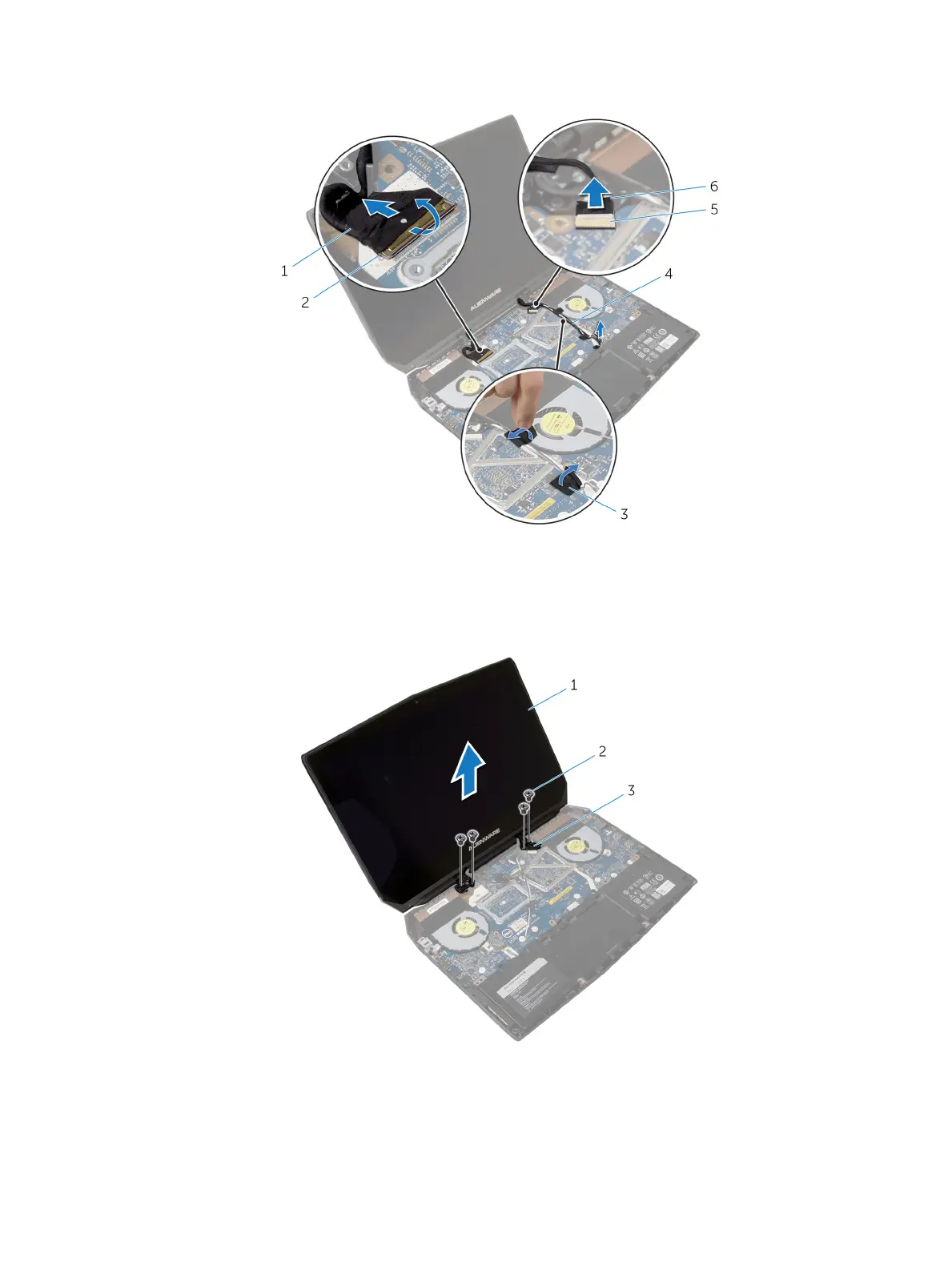

13 Disconnect the logo-board cable from the system board and remove it from the routing guides on the display hinges.
1 display cable 2 connector latch
3 adhesive tapes (2) 4 antenna cables (2)
5 connector 6 logo-board cable
14 Remove the screws that secure the display assembly to the computer base.
1 display assembly 2 screws (4)
3 display hinges (2)
15 Lift the display assembly o the computer base.
