Removing the display hinges
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the
instructions in
After Working Inside Your Computer. For more safety best practices, see the Regulatory Compliance
home page at dell.com/regulatory_compliance.
Prerequisites
NOTE: This chapter is applicable only if you have purchased a laptop with non-touchscreen display.
1 Remove the base panel.
2 Follow the procedure from step 1 to step 5 in “Removing the solid-state drive”.
3 Follow the procedure from step 1 to step 8 in “Removing the palm rest”.
4 Remove the display assembly.
5 Remove the display bezel.
6 Remove the display panel.
Procedure
1 Remove the screws that secure the display hinges to the display back-cover.
2 Lift the display hinges o the display back-cover.

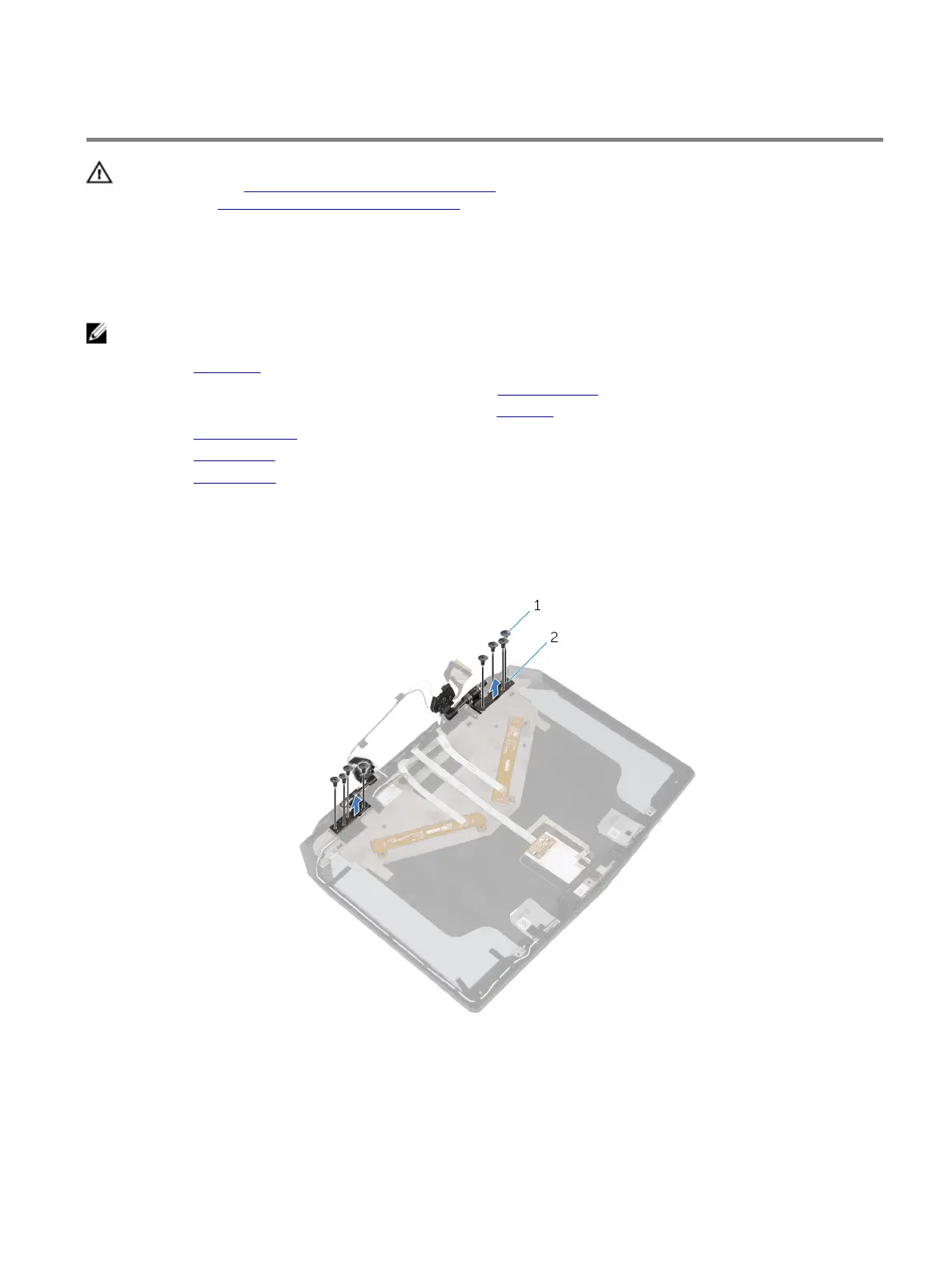

1 screws (8) 2 display hinges (2)
