Upgrading The Computer
6 - 6 Upgrading the Hard Disk Drive(s)
6
4. Release the cable and lift the hard disk assembly up out off the
computer.
5. Remove screws - in order to separate the bracket from the hard
disk(s), and disconnect the cable .
6. Reverse the process to install a new hard disk(s).
6 7
8 15
16

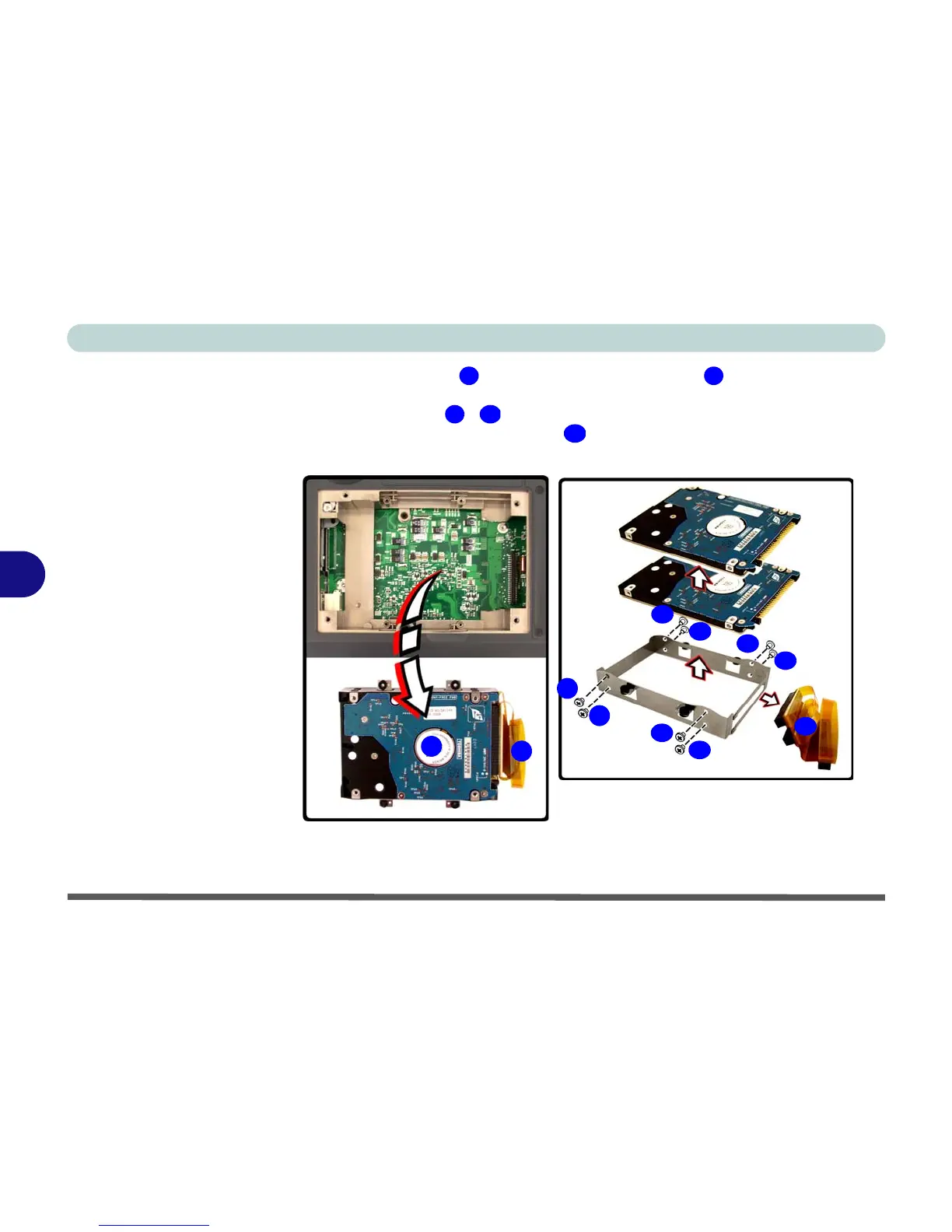

Figure 6 - 3
HDD Assembly
Removal
6
7
8
9
10
16
11
13
12
15
14
