28 | Removing the Center Control Cover
CAUTION: Be extremely careful when removing and handling the
center control cover. Failure to do so could result in scratching the
display panel.
4 Turn the center control cover over and place it on the palm-rest assembly.
5 Lift the connector latch and disconnect the central control cover cable from the
connector on the system board.
6 Remove the center control cover away from the computer.

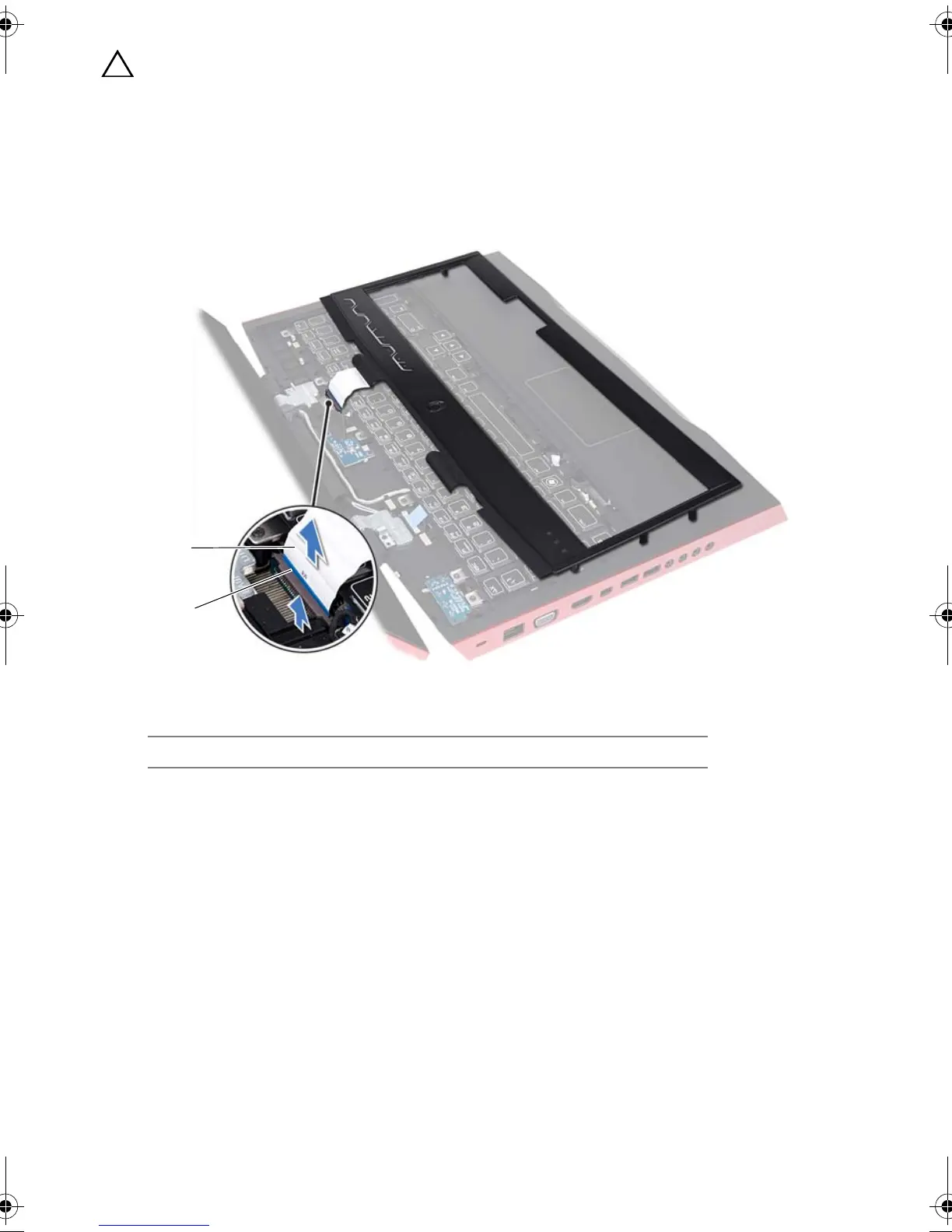

1 center control cover cable 2 connector latch
