ARTIX-7 FPGA Development Board AX7101 User Manual
43 / 51
www.alinx.com

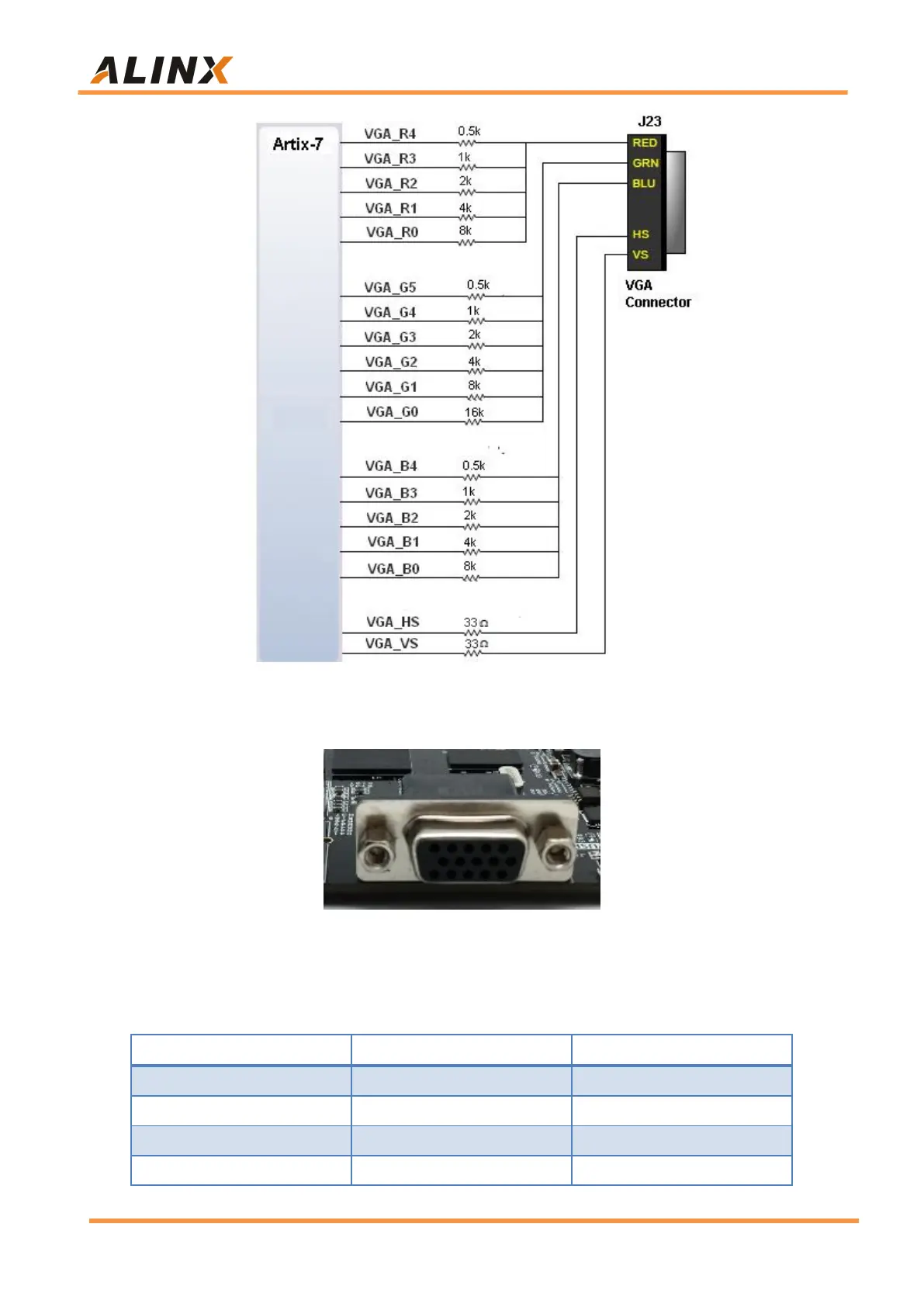

Figure 3-4-2: VGA Display Interface Schematic
Figure 3-4-3: VGA Display Interface on the Carrier Board
VGA Pin Assignment:
Signal Name
FPGA Pin
Description
VGA_B[0]
D14
BLUE[0]
VGA_B[1]
E14
BLUE[1]
VGA_B[2]
E13
BLUE[2]
VGA_B[3]
F13
BLUE[3]
