ARTIX-7 FPGA Development Board AX7101 User Manual

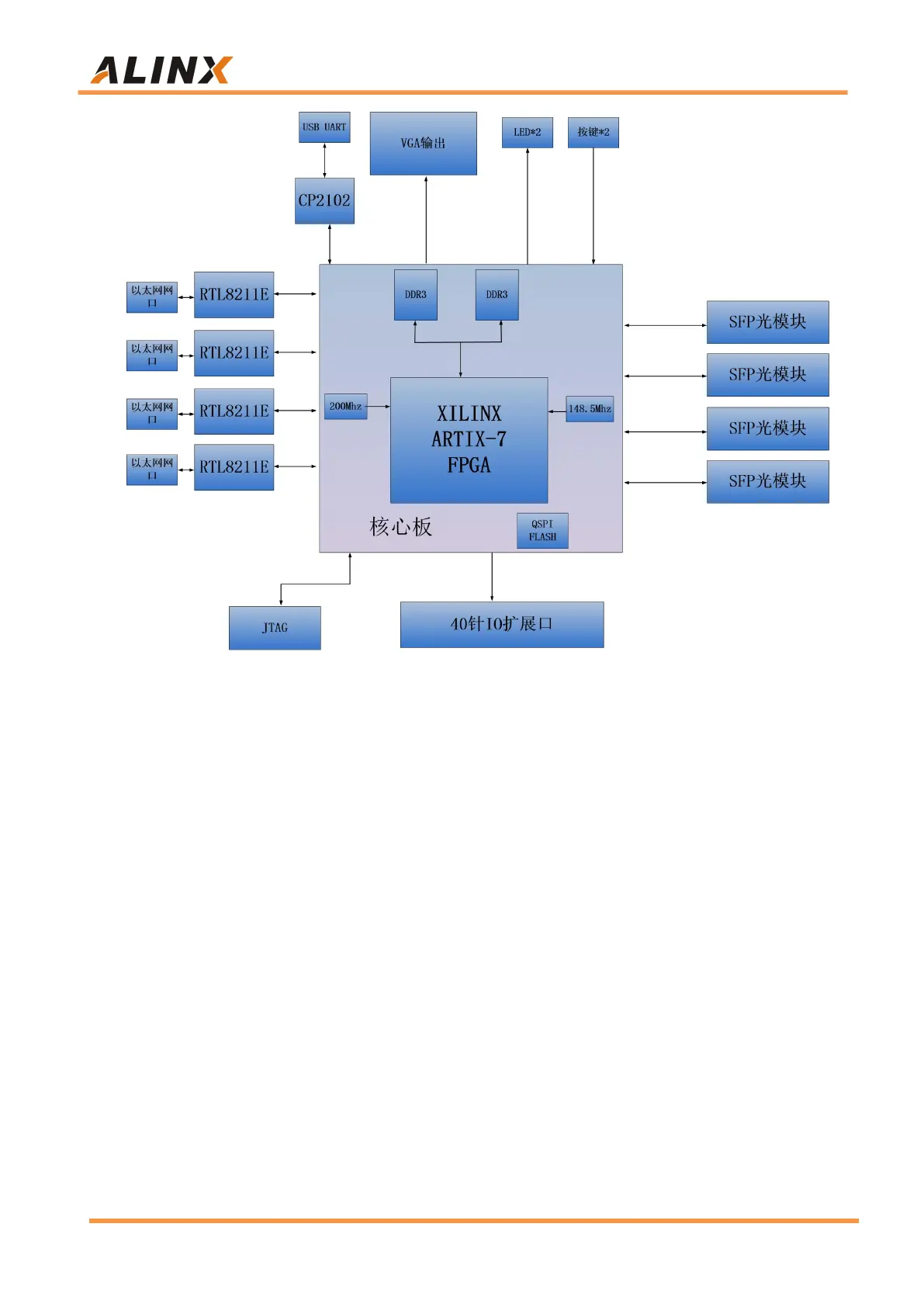

Figure 1-1-1: The Schematic Diagram of the AX7101
Through this diagram, you can see the interfaces and functions that the
AX7101 FPGA Development Board contains:
Artix-7 FPGA core board
The core board consists of XC7A100T + 8Gb DDR3 + 128Mb QSPI
FLASH. There are two high-precision Sitime LVDS differential crystals,
one at 200MHz and the other at 125MHz, providing stable clock input
for FPGA systems and GTP modules.
4-channel Gigabit Ethernet Interface RJ-45 interface
The Gigabit Ethernet interface chip uses Realtek's RTL8211EG
Ethernet PHY chip to provide network communication services to users.
RTL8211EG chip supports 10/100/1000 Mbps network transmission
rate. Full duplex and adaptive
