ALLEN & HEATH CQ Series User Manual

 82
User Guide V1.1.0 Issue 1

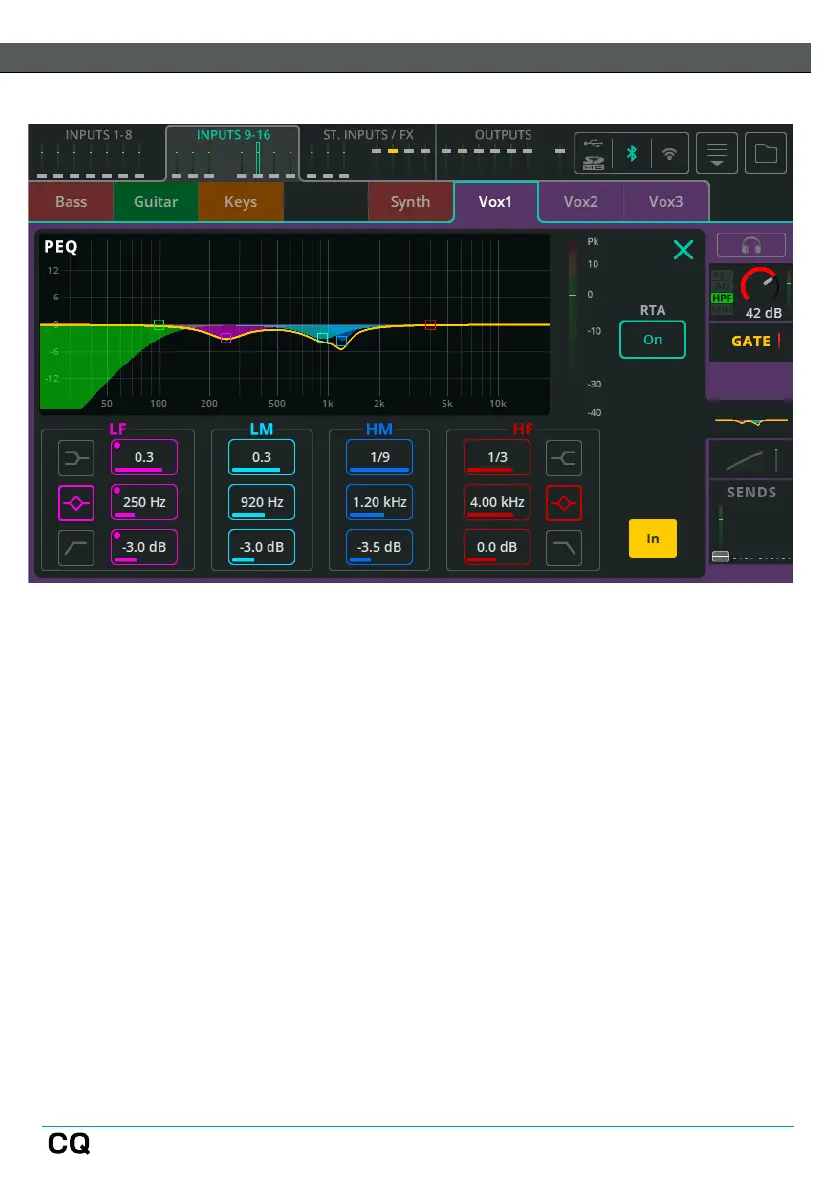

INPUT / PEQ
The 4-band Parametric Equaliser enables adjustments to the tone of the signal by
cutting or boosting around different frequencies.
Type – LF and HF bands include options for Shelf, Bell or HPF/LPF.
Width – Adjust the amount that frequencies around the centre frequency are
affected.
Frequency – Select the centre frequency for adjustment.
Gain – Cut or boost the selected centre frequency by up to +/- 15dB.
RTA – Display Real Time Analyser behind PEQ.
In/Out – Enable or disable the PEQ.

ALLEN & HEATH CQ Series Specifications

General

Type	Digital Mixer
Models	CQ-12T, CQ-18T, CQ-20B
USB Audio	Yes
Bluetooth	Yes
Connectivity	USB, Bluetooth
Control	Touchscreen
EQ	4-band parametric EQ
Compression	Yes
WiFi	Yes
Control App	CQ MixPad
Power Supply	Internal
Effects	Built-in effects engine
