100 Rockwell Automation Publication 1734-UM013C-EN-P - August 2010
Chapter 7 Configure the Module for a SmartGuard Controller

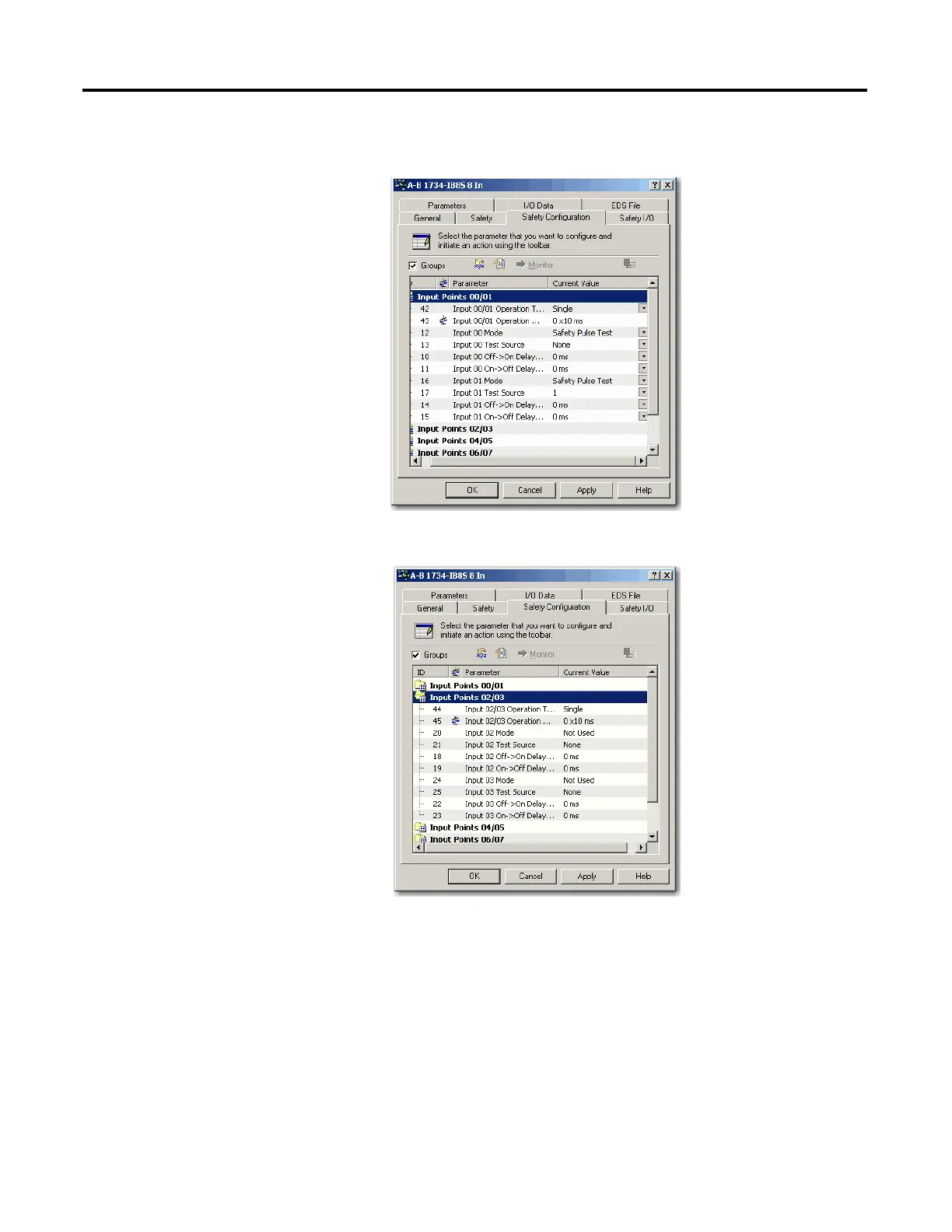

4. Edit the parameters so that the channels are pulse tested by Test sources 0
and 1, respectively.
5. Double-click Input Points 00/01 to minimize and Input Points 02/03 to
expand.
