Chapter 9 Status Indicators

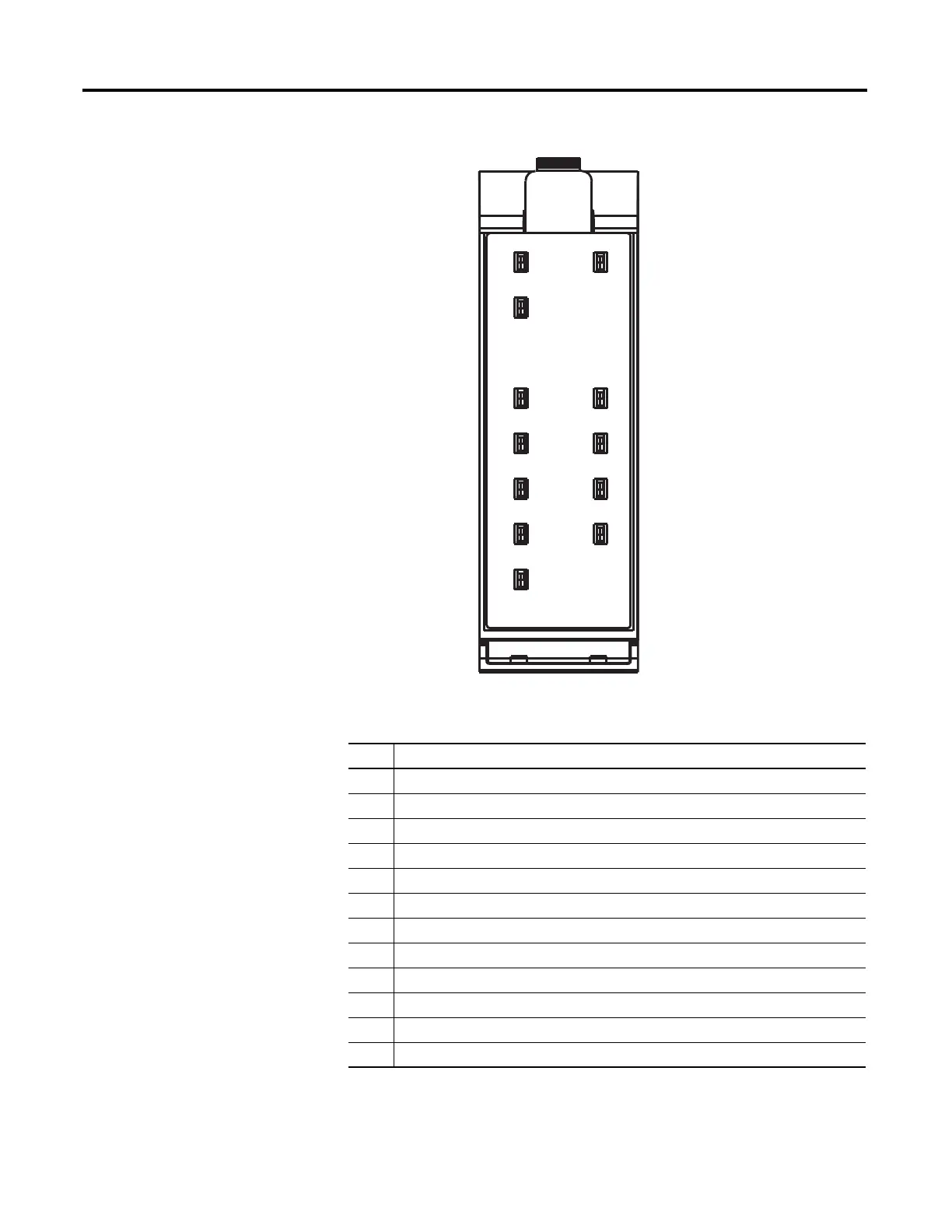

Figure 22 - Status Indicators Placement
12
1
6
11
10
9
8
7
3
4
5
2
Item Description
1 Network status indicator
2 Input/output 4
3 Input/output 5
4 Input/output 6
5 Input/output 7
6 Field Power status indicator
7 Input/output 3
8 Input/output 2
9 Input/output 1
10 Input/output 0
11 Configuration lock status indicator
12 Module status indicator
