Chapter 6 Configure the Module in a GuardLogix Controller

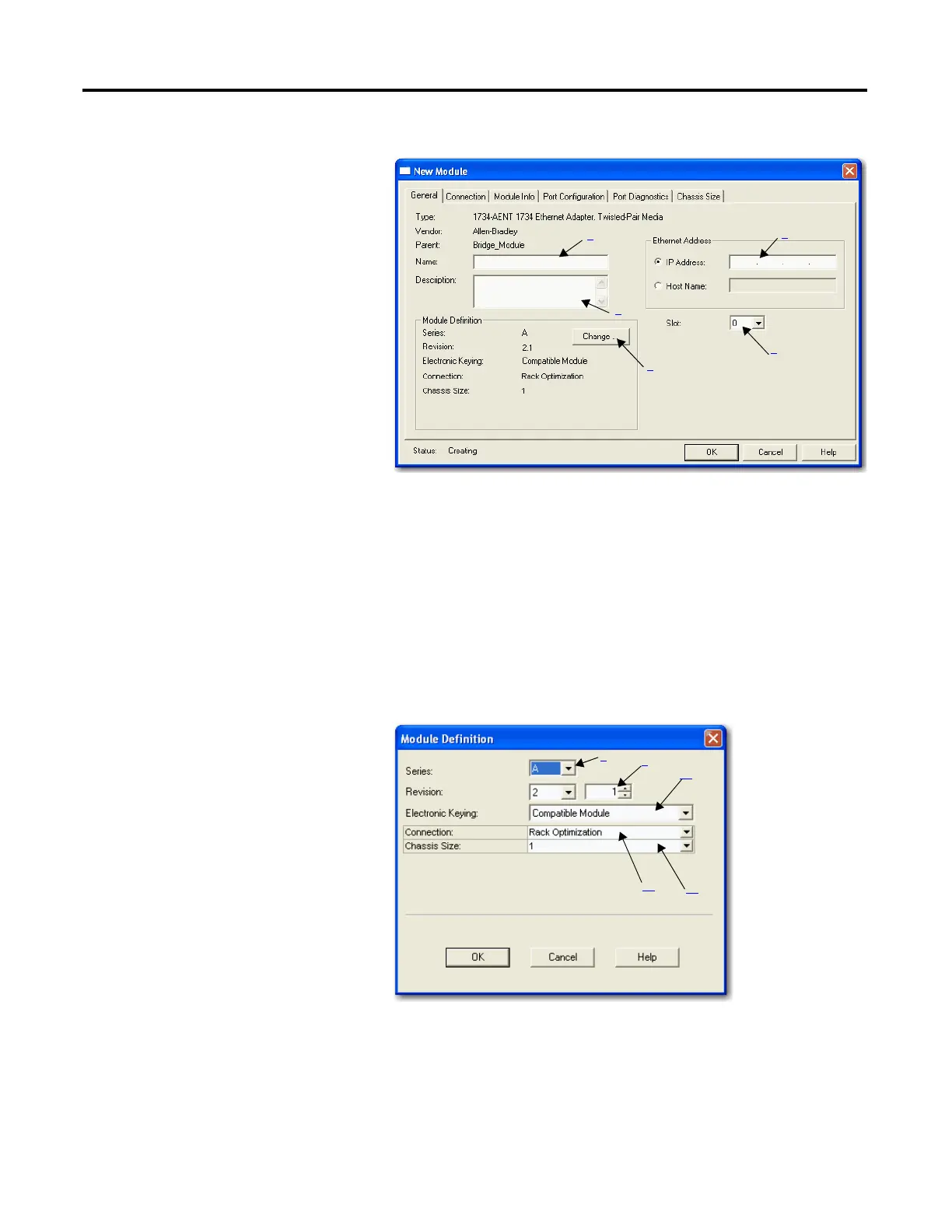

This New Module dialog box appears.
3. In the Name box, type the appropriate name of the 1734-AENT adapter.
4. In the Description box, enter an optional description of the 1734-AENT
adapter.
5. In the IP Address box, enter the appropriate IP address of the 1734-AENT
adapter.
6. In the Slot box, enter the appropriate slot number of the 1734-AENT
adapter.
7. Under Module Definition, click Change.
The Module Definition dialog box appears.
8. In the Series box, enter the appropriate series letter of the 1734-AENT
adapter.
