Fast Module Features Chapter 5
PWM Configuration
Follow these steps to configure PWM.
1. Use program logic or the RSLogix 5000 tag editor to define the Cycle time
and On time for an output point via the PWMCycleTime and
PWMOnTime output tags.
For more information about module tags, refer to Appendix
B.

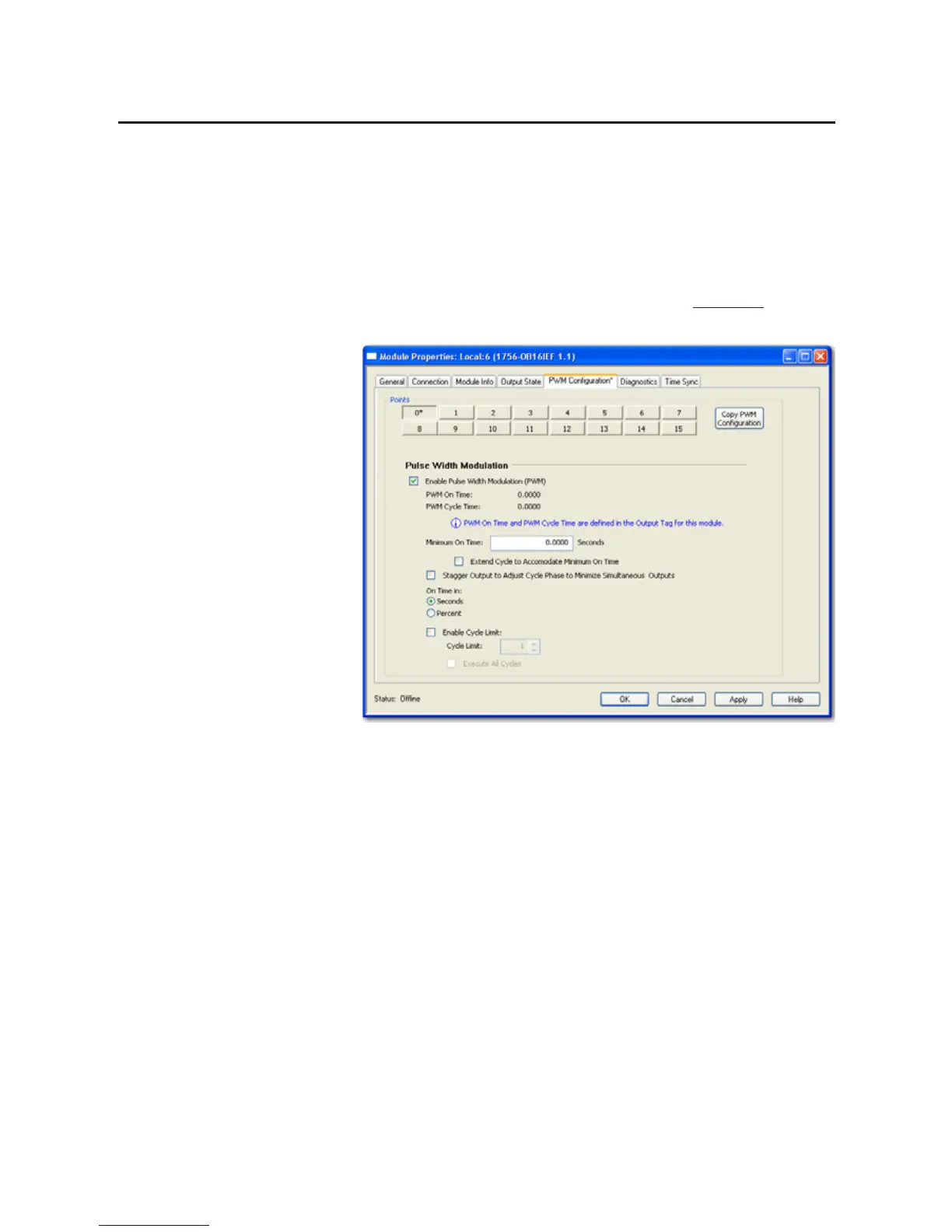

2. On the Module Properties dialog box, click the PWM Configuration tab.
3. In the Points area, click a numbered button to configure the corresponding
output point.
