Diagnostic Module Features Chapter 4
This feature has a corresponding tag that can be examined in the user program in
the event of a fault. For more information on these tags, see Appendix
B.
If an output cannot be verified, a point-level fault is sent to the controller.
Follow these steps to enable the field-side output verification.

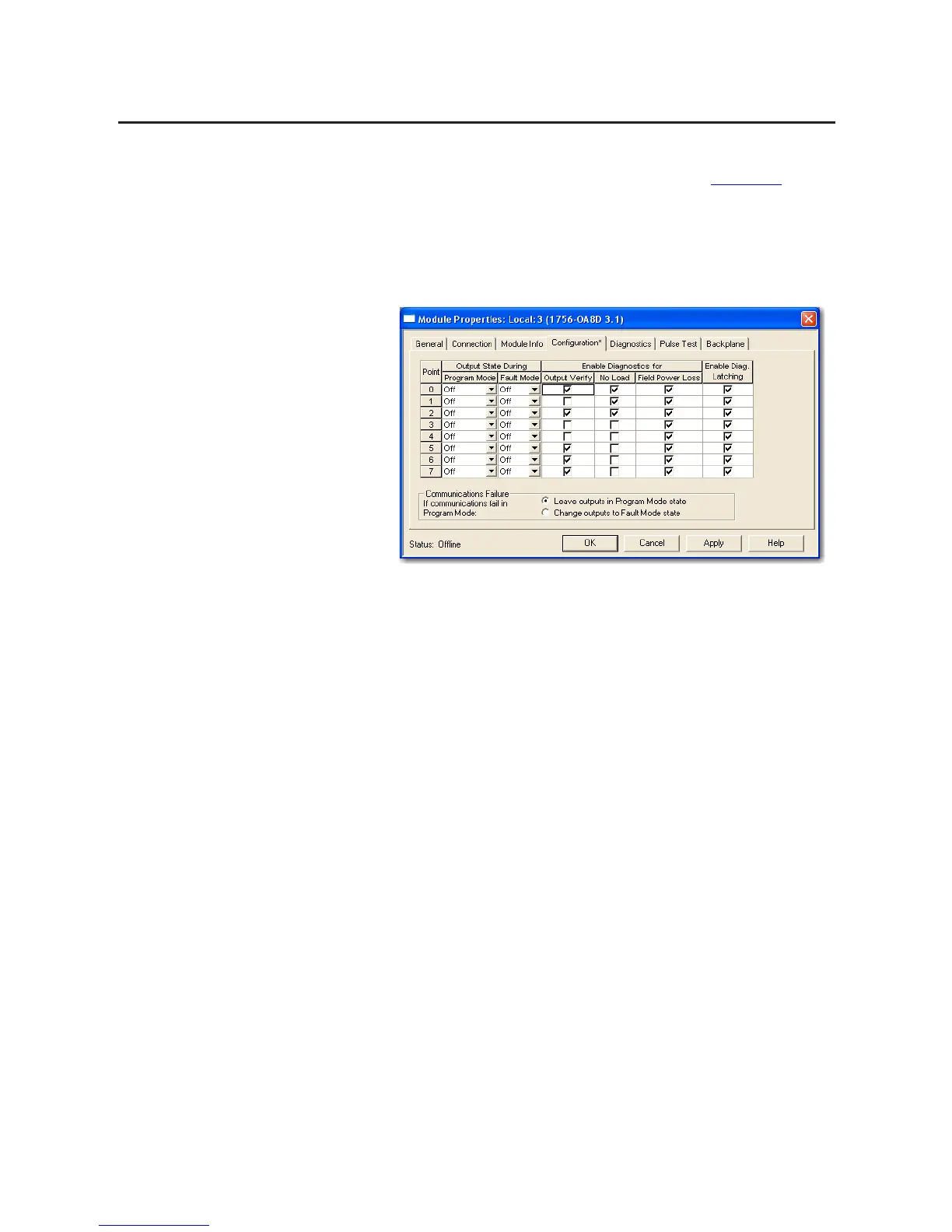

1. On the Module Properties dialog box, click the Configuration tab.
2. Do one of the following in the Output Verify column:
• To enable the feature for a specific point, check the corresponding
checkbox.
• To disable the feature for a specific point, clear the corresponding
checkbox.
3. Click OK.
