8 SSI Servo Module
Publication
1756-IN595A-EN-P - March 2004
2. Push the band until it snaps in place.

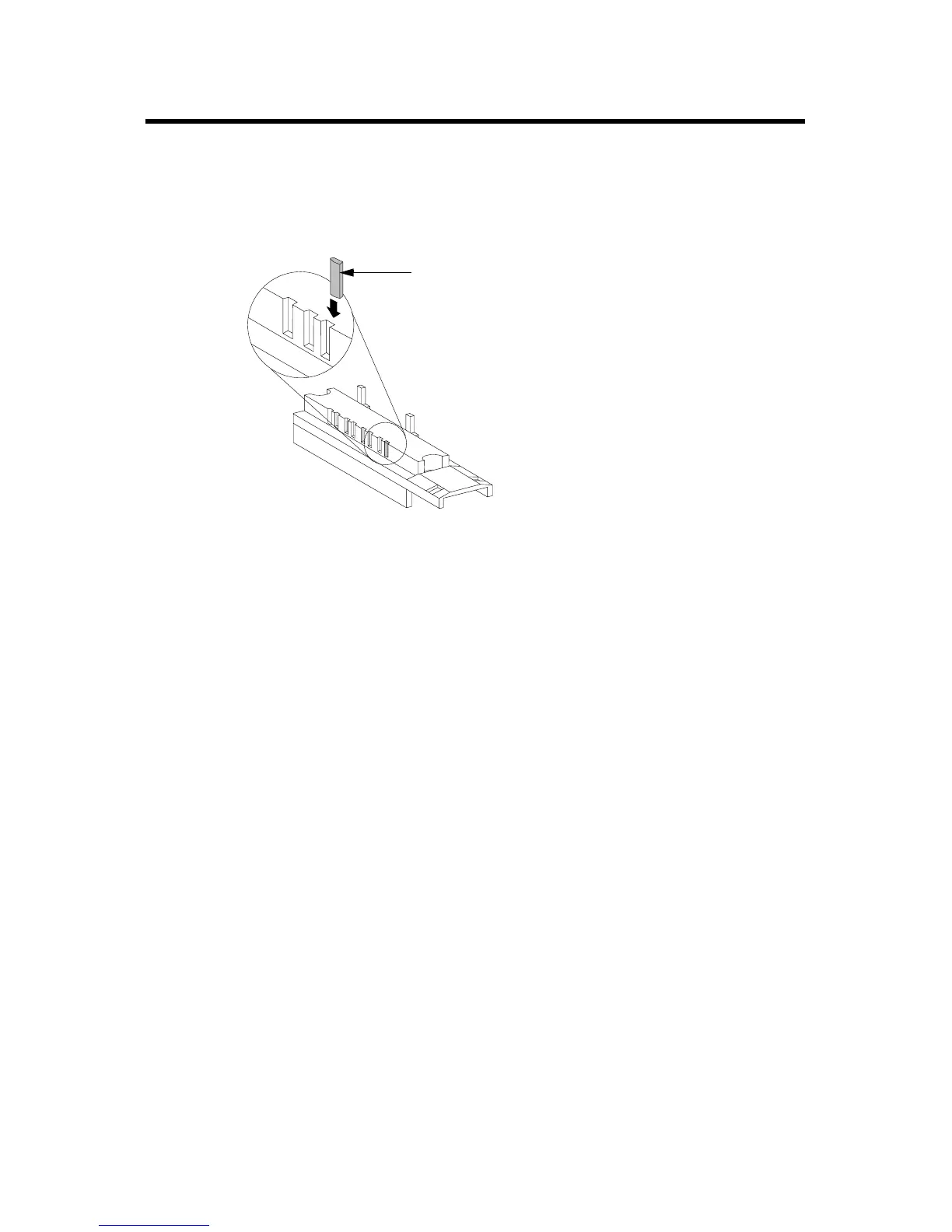

3. To key the RTB or IFM, insert the wedge-shaped tab with rounded
edge first, as shown.
Figure 4 Keying Band
4. Push the tab until it stops.
Reposition the tabs to rekey future module applications.
Wiring a Removable Terminal Block (RTB)
Your 1756-M02AS module uses two types of RTBs (each RTB comes with
housing) to connect wiring.
• Cage clamp - Catalog number 1756-TBCH
• Spring clamp - Catalog number 1756-TBS6H
20851–M
Wedge-shaped tab
