Rockwell Automation Publication 1756-UM013B-EN-P - October 2019 107
Troubleshoot Your Module Appendix A

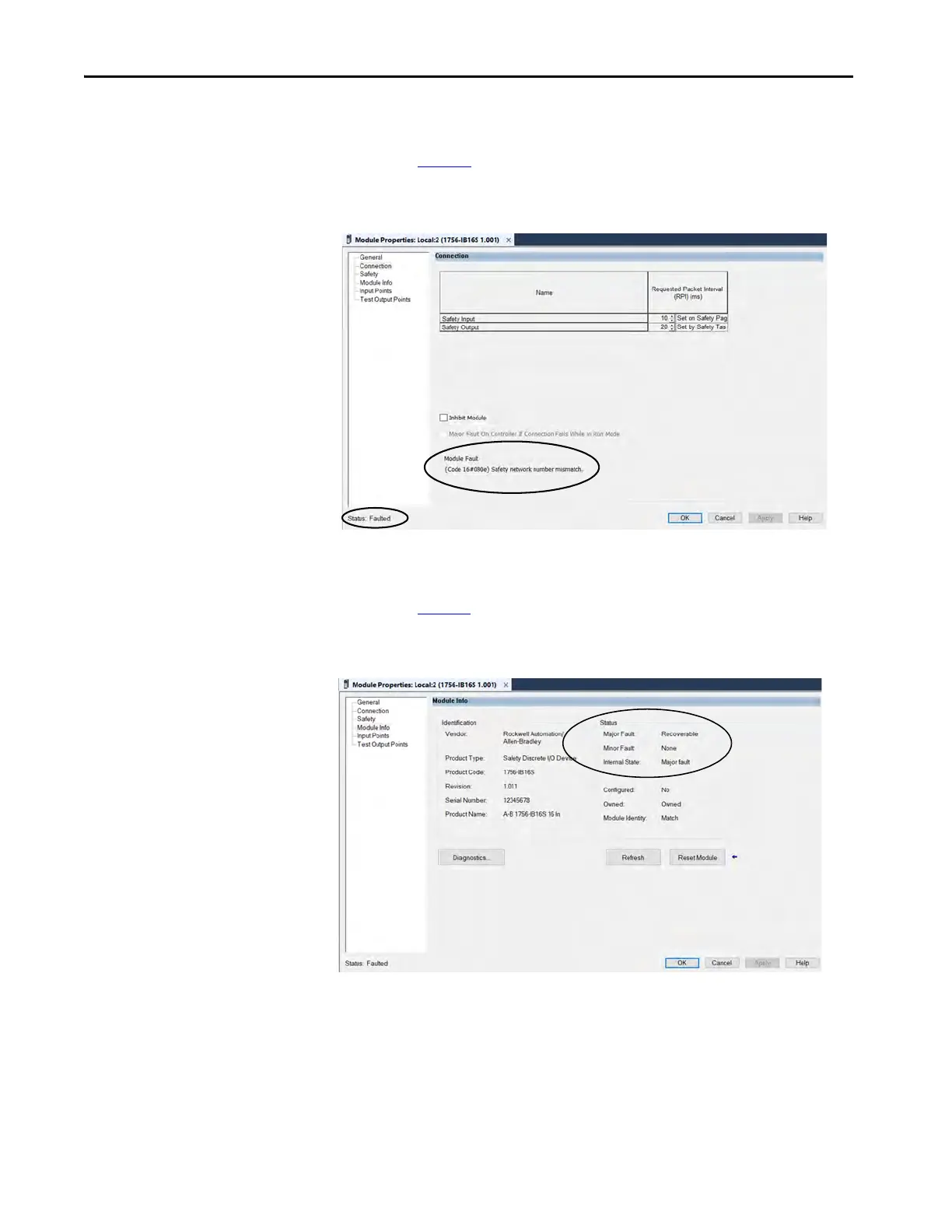

Module Fault Descriptions on Connection Category
As shown in Figure 3, a module fault description that includes an error code that
is associated with the specific fault type is listed on the Connection category.
Figure 3 - Fault Description with Error Code
Module Fault Descriptions on Module Info Category
As shown in Figure 4, major and minor fault information is listed on the Module
Info tab in the Status section.
Figure 4 - Major and Minor Fault Information
