2–4 Installing Your Remote I/O Adapter Module
Publication 17946.5.3 - May 1996
1.4
(35.5)

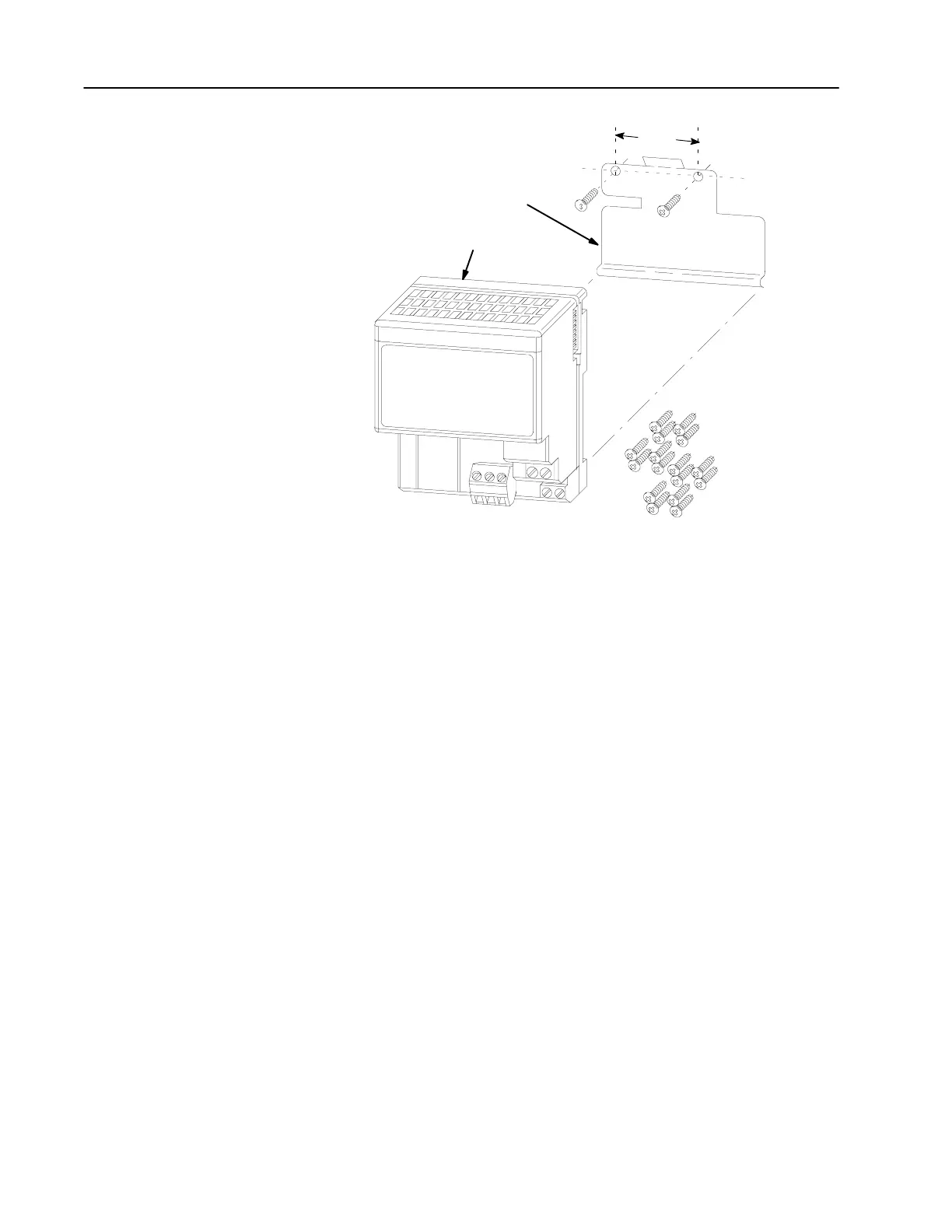

1 - Adapter Mounting Plate
2 - Remote I/O Adapter Module
Mounting Screws(18) -
2 for the mounting plate
and 2 each for the 8
possible modules
4. Hold the adapter (2) at an angle and engage the top of the
mounting plate in the indention on the rear of the adapter module.
5. Press the module down flush with the panel until the locking
lever locks.
6. Position the termination base unit up against the adapter and push
the female bus connector into the adapter.
7. Secure to the wall with two #6 self-tapping screws.
8. Repeat for each remaining terminal base unit.
Note: The adapter is capable of addressing eight modules. Do not
exceed a maximum of eight terminal base units in your system.
