Allen-Bradley 1794ASB Series B User Manual

2–8 Installing Your Remote I/O Adapter Module
Publication 17946.5.3 - May 1996
Starting I/O Group
S1-8 S1-7 Module group
ON ON 0 (1st quarter)
OFF ON 2 (2nd quarter)
ON OFF 4 (3rd quarter)
OFF OFF 6 (4th quarter)
I/O Rack Number
S1-6 thru S1-1
Refer to page 2-9
S2-8
ON Reserved
S2-7 Hold Inputs
ON Hold Inputs
OFF Reset Inputs
S2-6 Last Chassis
1
ON Not last
OFF Last
S2-5 Reply Delay
ON Reserved
Communication Rate
S2-4 S2-3 Bits/s
ON ON 57.6k
OFF ON 115.2k
ON OFF 230.4k
OFF OFF 230.4k
Processor Restart Lockout (PRL)
S2-2 Processor:
ON Restart
OFF Locked out
Hold Last State
S2-1 Processor will:
ON Reset outputs
OFF Hold last state
Flipopen
cover

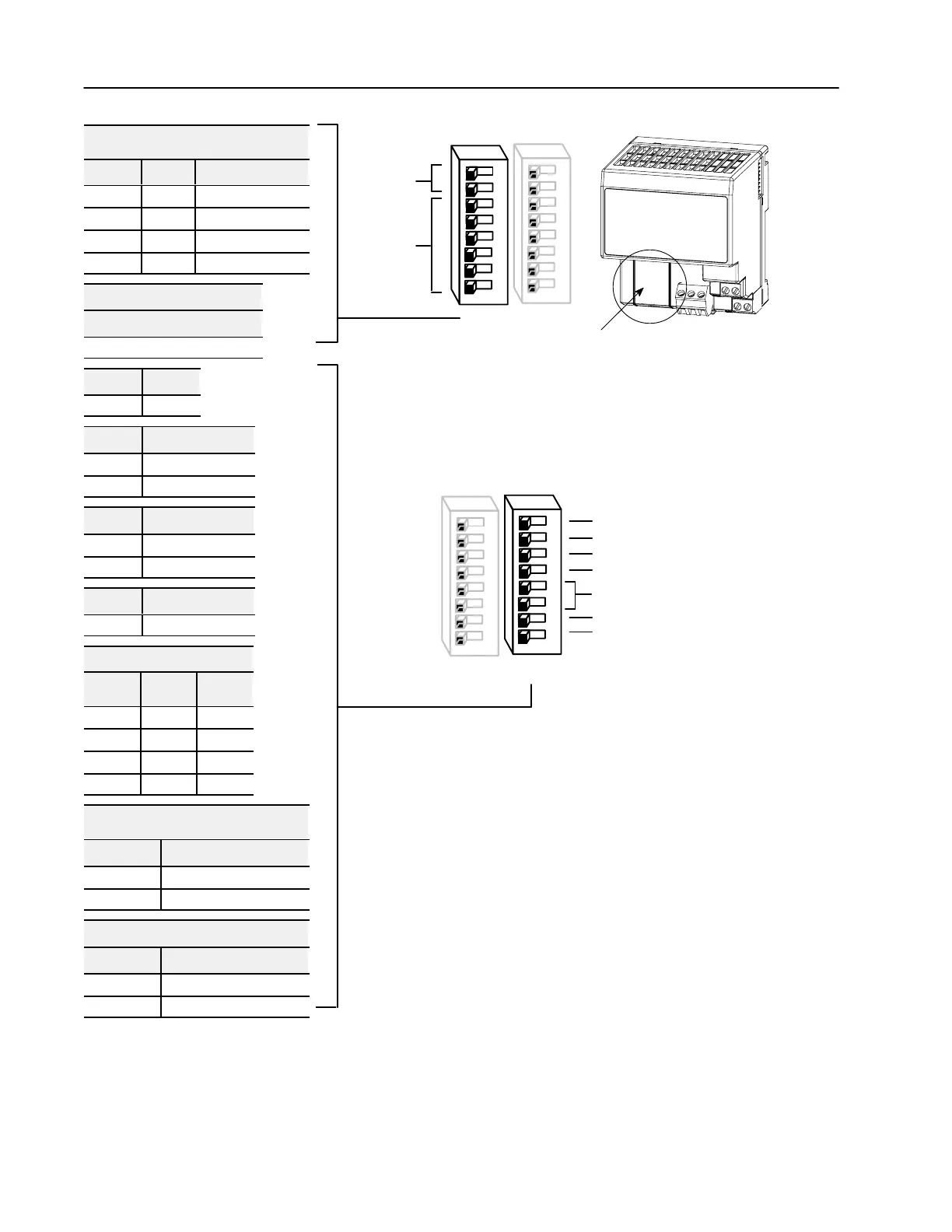

87654321
87654321
ON
ON
S1
S2
Starting I/O
Group
I/O Rack
Number
87654321
87654321
ON
ON
S1
S2
Hold Last State
Processor Restart Lockout
Communication Rate
Reply Delay
Last Chassis
1
Hold Inputs
Reserved
1
For PLC2 Processors only -
OFF - this adapter does contain the highest
numbered I/O group for the associated rack number .
ON - this adapter does not contain the highest
numbered I/O group for the associated rack number .
