Configure Compact 5000 I/O Serial Module Chapter 4

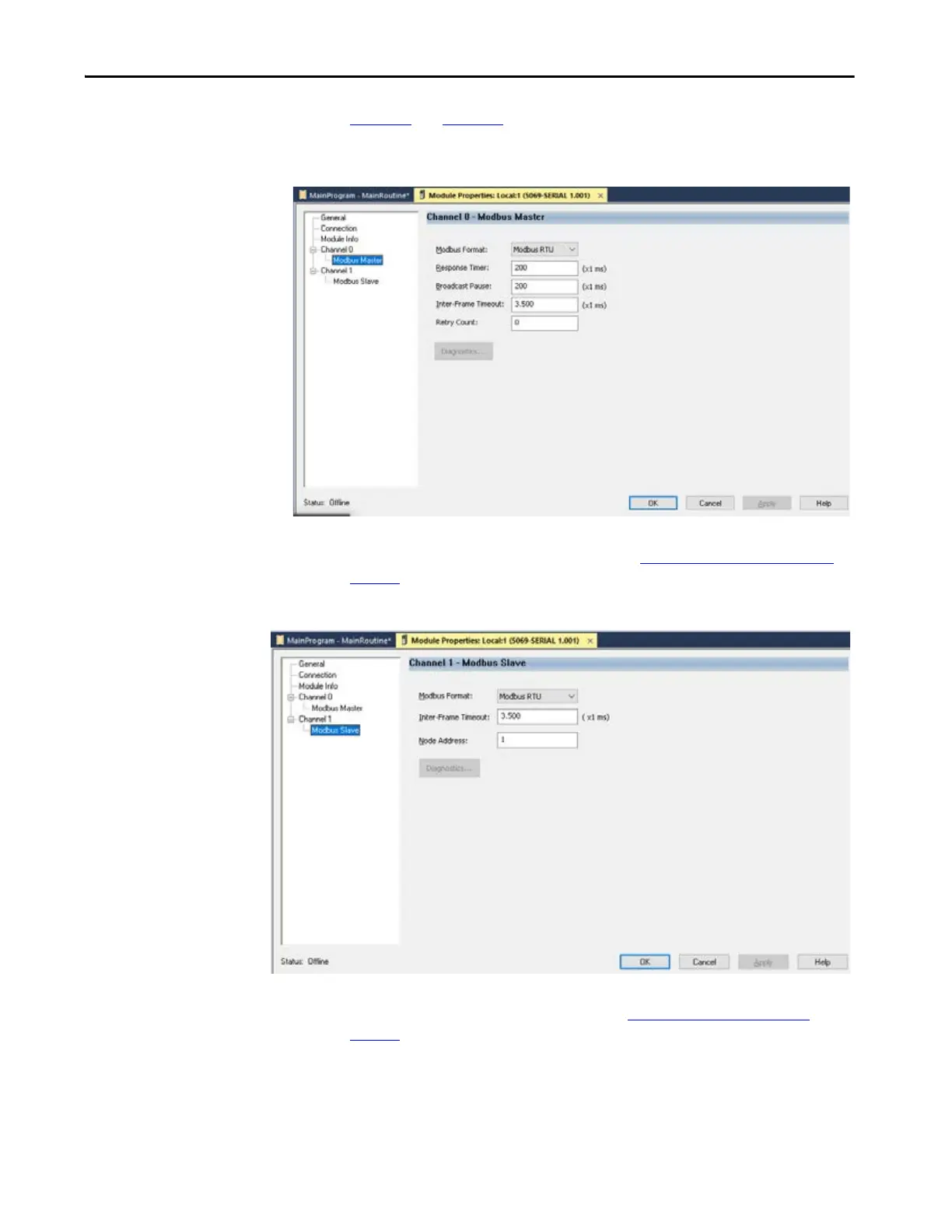

Figure 19 and Figure 20 show the detailed communication settings for
Modbus Master and Modbus Slave.
Figure 19 - Modbus Master Channel Parameters
For Modbus Master function definitions, see Modbus Master Functions on
page 41.
Figure 20 - Modbus Slave Channel Parameters
For Modbus Slave function definitions, see Modbus Slave Functions on
page 42.
