Publication 1756-UM001G-EN-P - January 2007
94 Develop Motion Applications

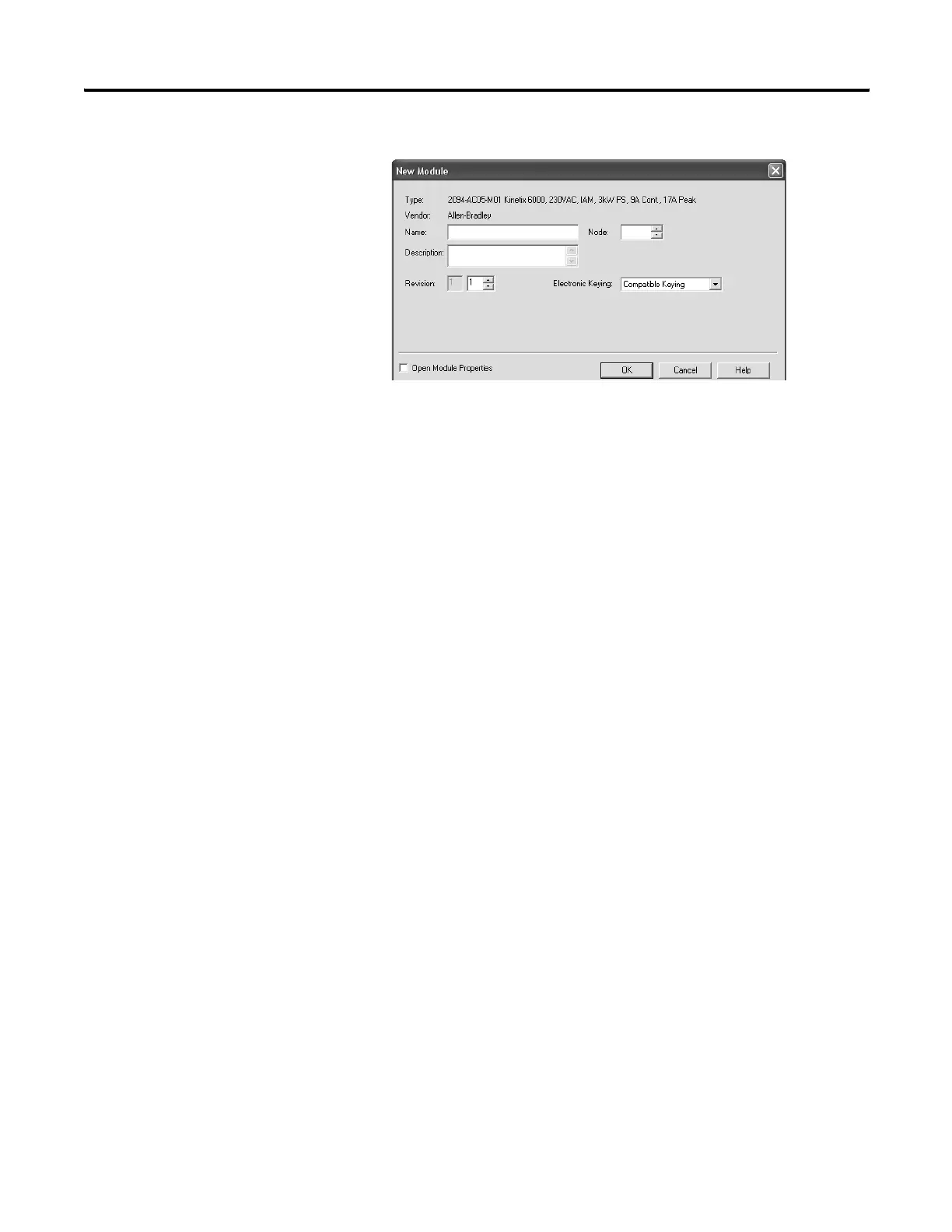

The New Module dialog appears.
5. In the Name box, type the name of the new drive.
6. In the Node box, select the node number of the drive in the
SERCOS ring.
7. Click OK.
Additional Resources
For additional information, consult these publications:
• Motion Analyzer Selection Guide, publication PST-SG003
• ControlLogix Selection Guide, publication 1756-SG001
• Logix5000 Motion Module User Manual, publication 1756-UM006
