Publication 1756-UM001G-EN-P - January 2007
34 Communicate over Networks
6. From the Protocol pull-down menu, choose DF1 Point-to-Point.
7. Specify DF1 system protocol settings.
8. Click OK.
Additional Resources
For additional information, consult these publications:
• Logix5000 Controllers General Instructions Reference Manual,
publication 1756-RM003
• SCADA System Application Guide, publication AG-UM008.
Communicate with ASCII Devices
When you configure the serial port for user mode, you can use it to:
• read ASCII characters from a weigh scale module or bar code
reader.
• send and receive messages from an ASCII-triggered device, such
as a MessageView terminal.
To communicate with ASCII devices, perform this procedure.
1. In the Controller Organizer of RSLogix 5000 programming
software, right-click your controller and select Properties.

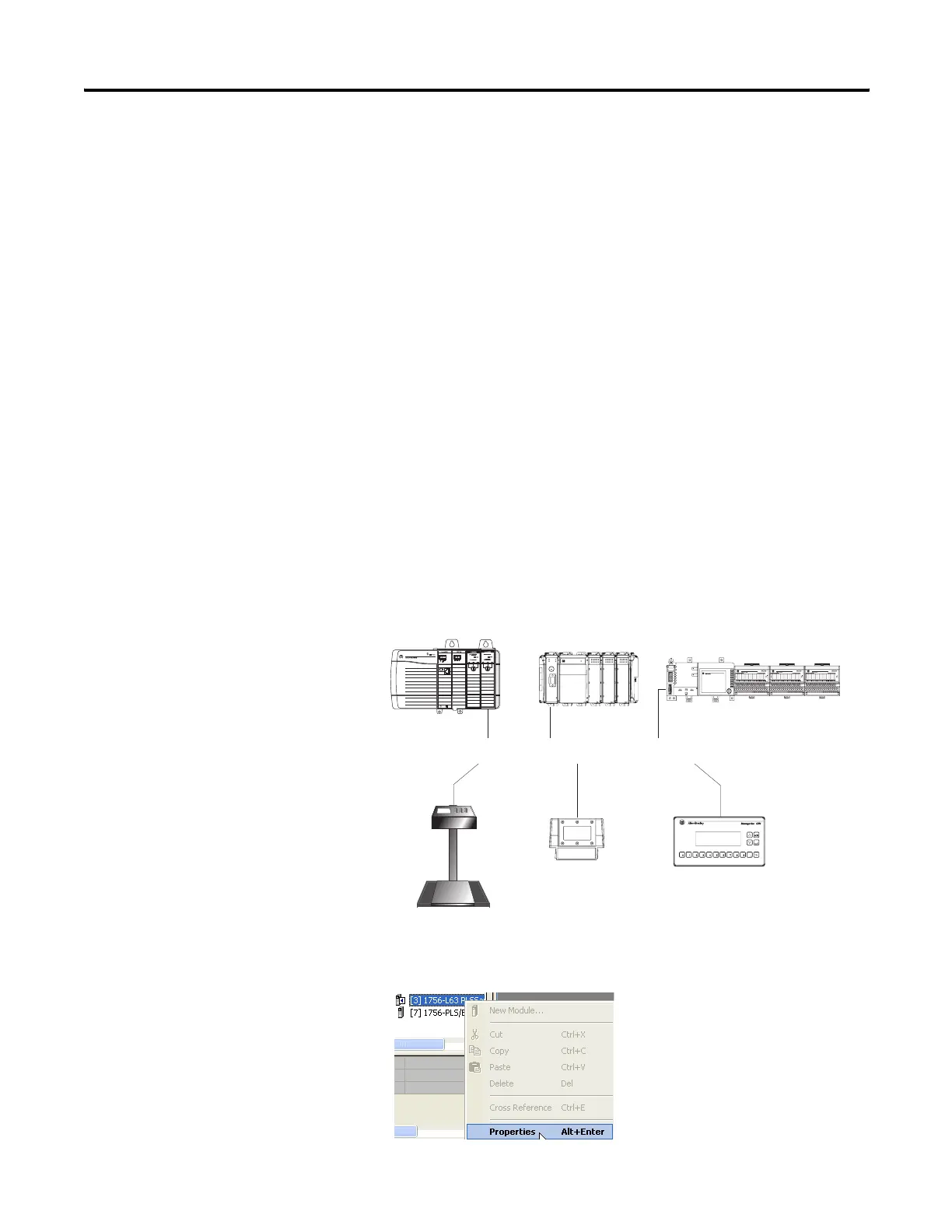

Connection from the Controller’s Serial Port to the ASCII Device
