Publication 1747-UM655B-EN-P - June 2007
Hardware Setup 33
Chassis Install
Establishing Data Highway Plus Communication
For the examples using the Data Highway Plus (DH+) network in
Chapters 5 and 6 of this manual, we installed a 1784-PKTX
communication card in the host platform and an SLC 5/04 processor
with these default Channel 1 DH+ configurations:
• DH+ node address = 1
• Communication rate = 57.6 Kbps
Connect Channel 1 of the SLC 5/04 processor to the DH+ network by
using the three-pin connector on the front of the module.
IMPORTANT

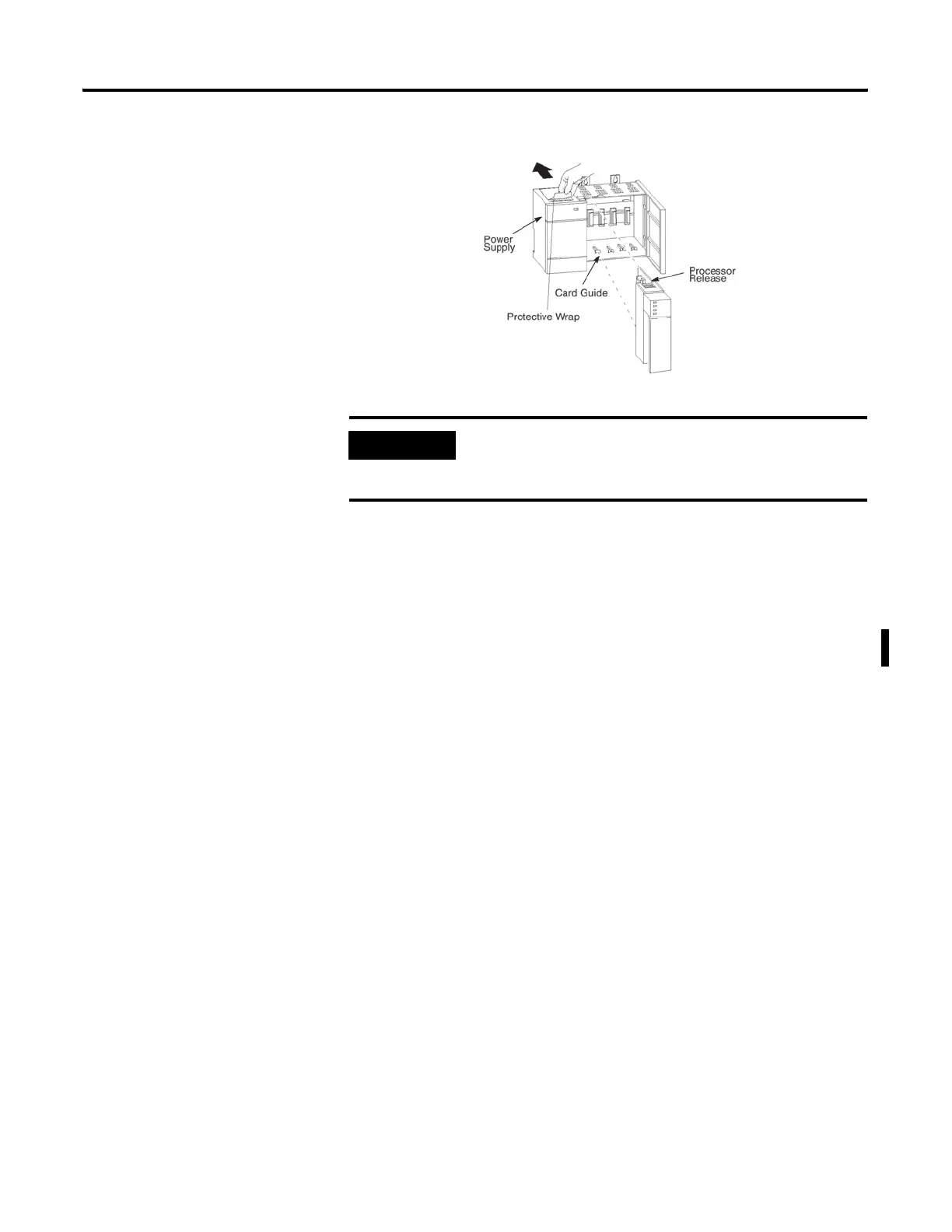

Insert the SLC 500 processor into the left slot (slot 0), as shown
above. Remove the protective wrap after installing the
processor.
