Publication 1747-UM655B-EN-P - June 2007

Communicating with the DeviceNet Network from Another Network 73

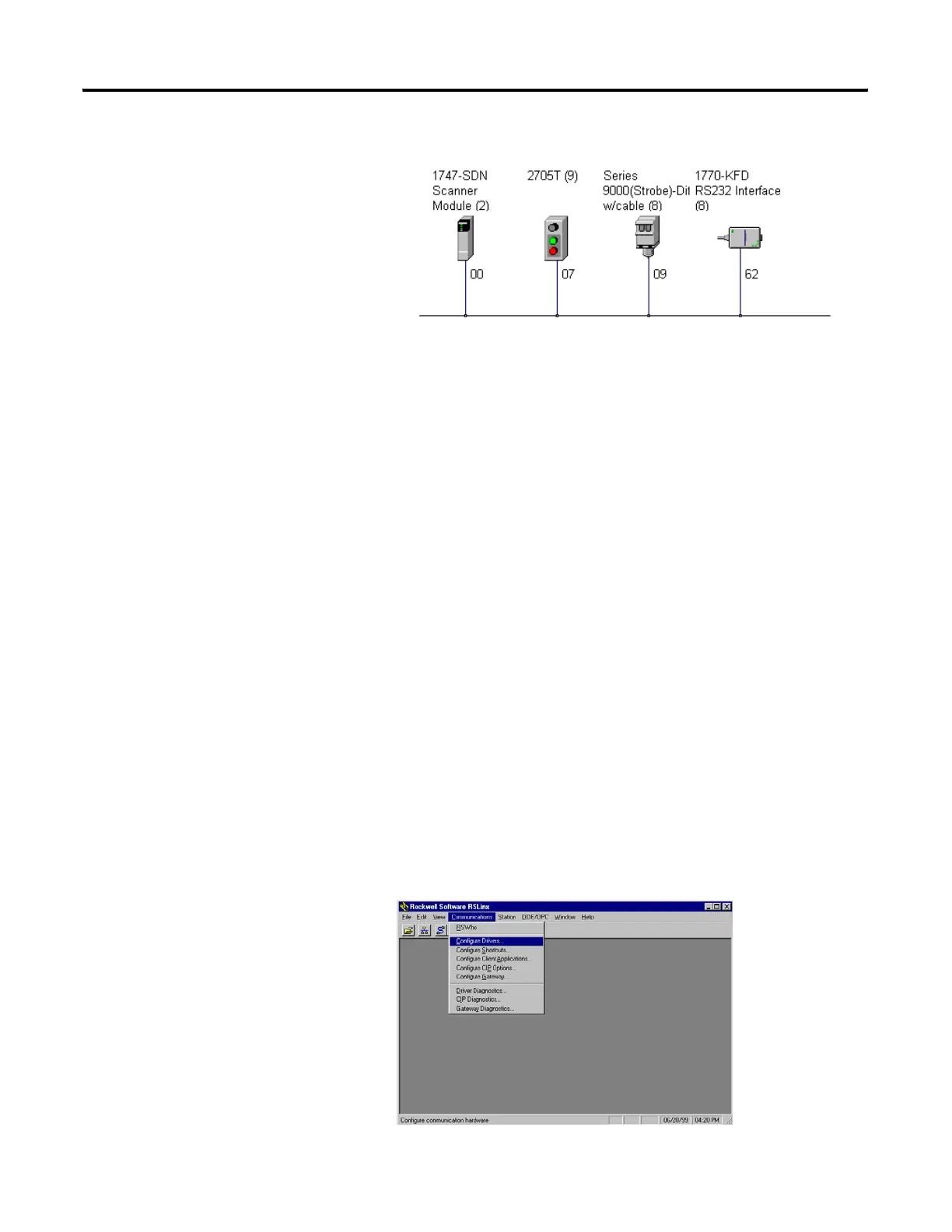

You are now online to the DeviceNet network via the Ethernet

network.

See pages 55…62 of this manual for examples of how to use

RSNetWorx for DeviceNet software to adjust network

parameters.

Communicate with the

DeviceNet Network via a

DH+ Network

Before performing this example, the DH+ network must be

configured and running. This example uses a SLC 5/04 processor. The

SLC 5/04 processor lets you operate DH+ communication protocol by

means of DH+ communication channel 1.

Configure the DeviceNet Pass-through Driver

You must first configure the DeviceNet pass-through driver (catalog

number 1747-SDNPT) with a DH+ port by using RSLinx software,

version 2.10 or later, before you can communicate with the 1747-SDN

module via a DH+ network.

Follow these steps to configure the DeviceNet pass-through driver.

1. Start RSLinx software.
