Configuring the DeviceNet Network 59

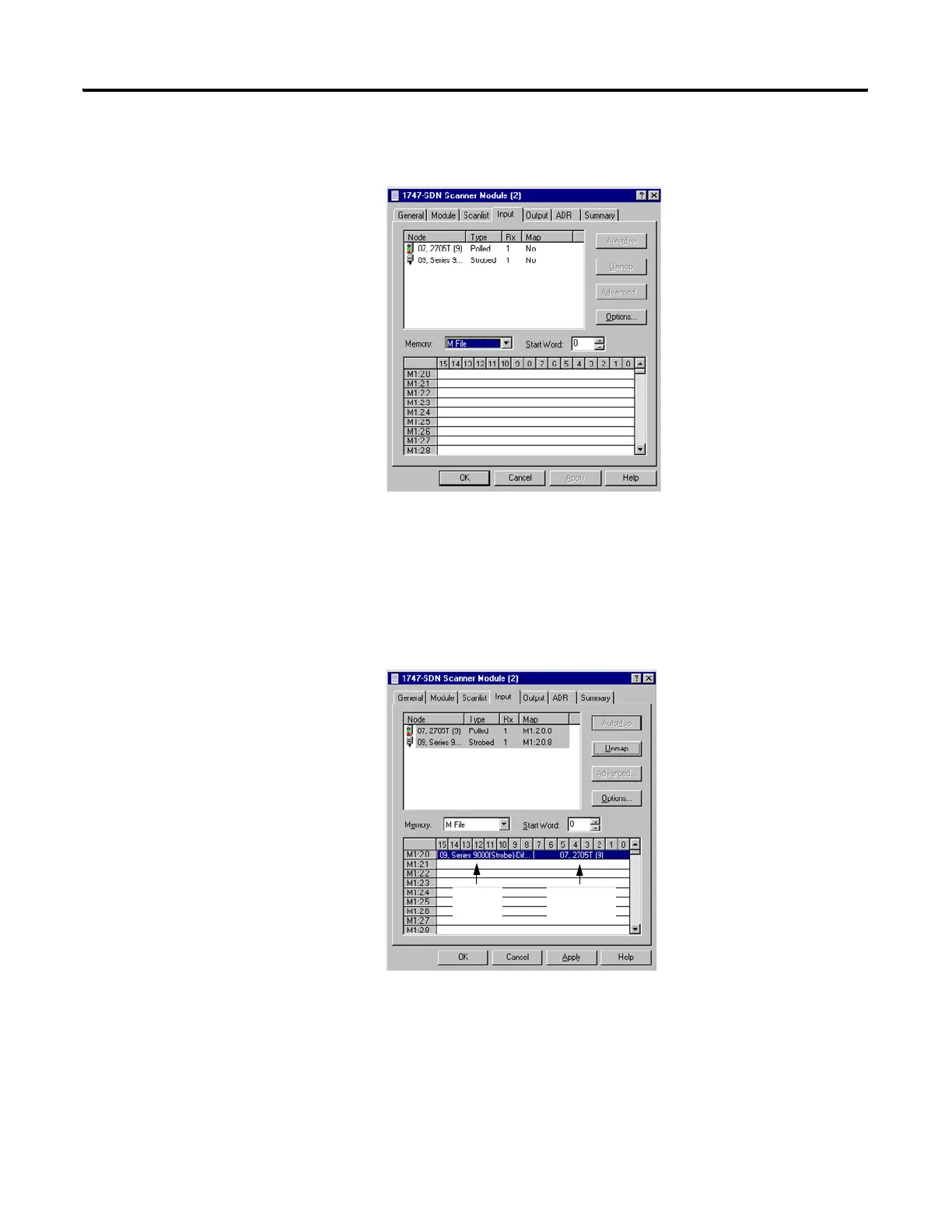

1. Double-click the 1747-SDN module icon and select the Input
tab.
2. Select M File in the Memory field.
3. Highlight the RediSTATION operator interface and the photoeye
and click AutoMap.
The resulting device mapping appears in the lower panel.
In this example, the inputs from the RediSTATION operator
interface appear in the M1 file for the device in slot 2 as word 0,
bits 0…7.
RediSTATION
inputs
Photoeye
inputs
