Publication 1747-UM655B-EN-P - June 2007
Creating and Running the Example Application Program 81
2. From the File menu, choose New.

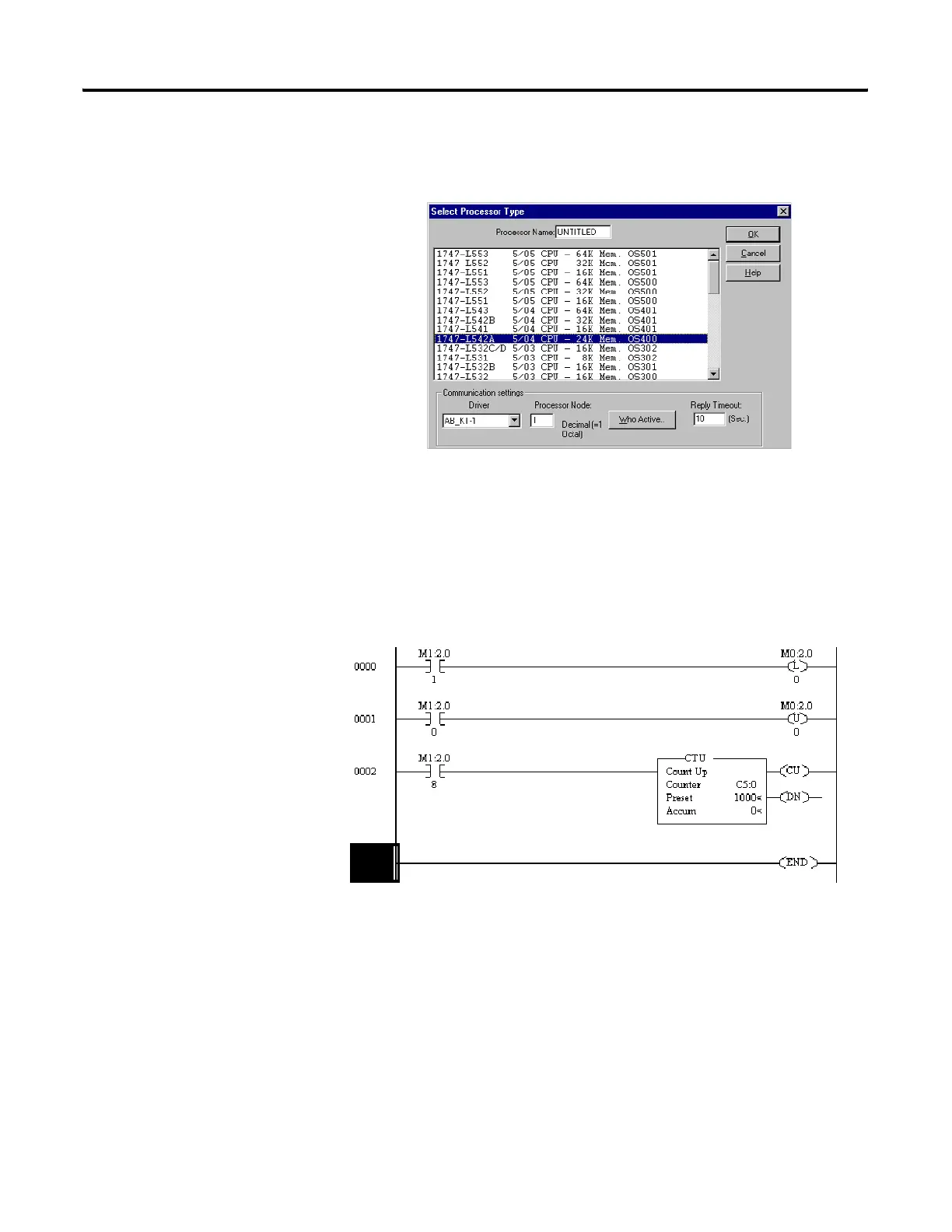

The Select Processor Type dialog opens.
3. Select your processor type from the list (for example,
1747-L542A) and click OK.
4. Enter the following ladder program.
Note that the program uses the addresses mapped to the devices
by RSNetWorx for DeviceNet software in chapter 4.
5. Save the program by using an appropriate name, for example,
1747-SDN.
