C-4 Connector Descriptions

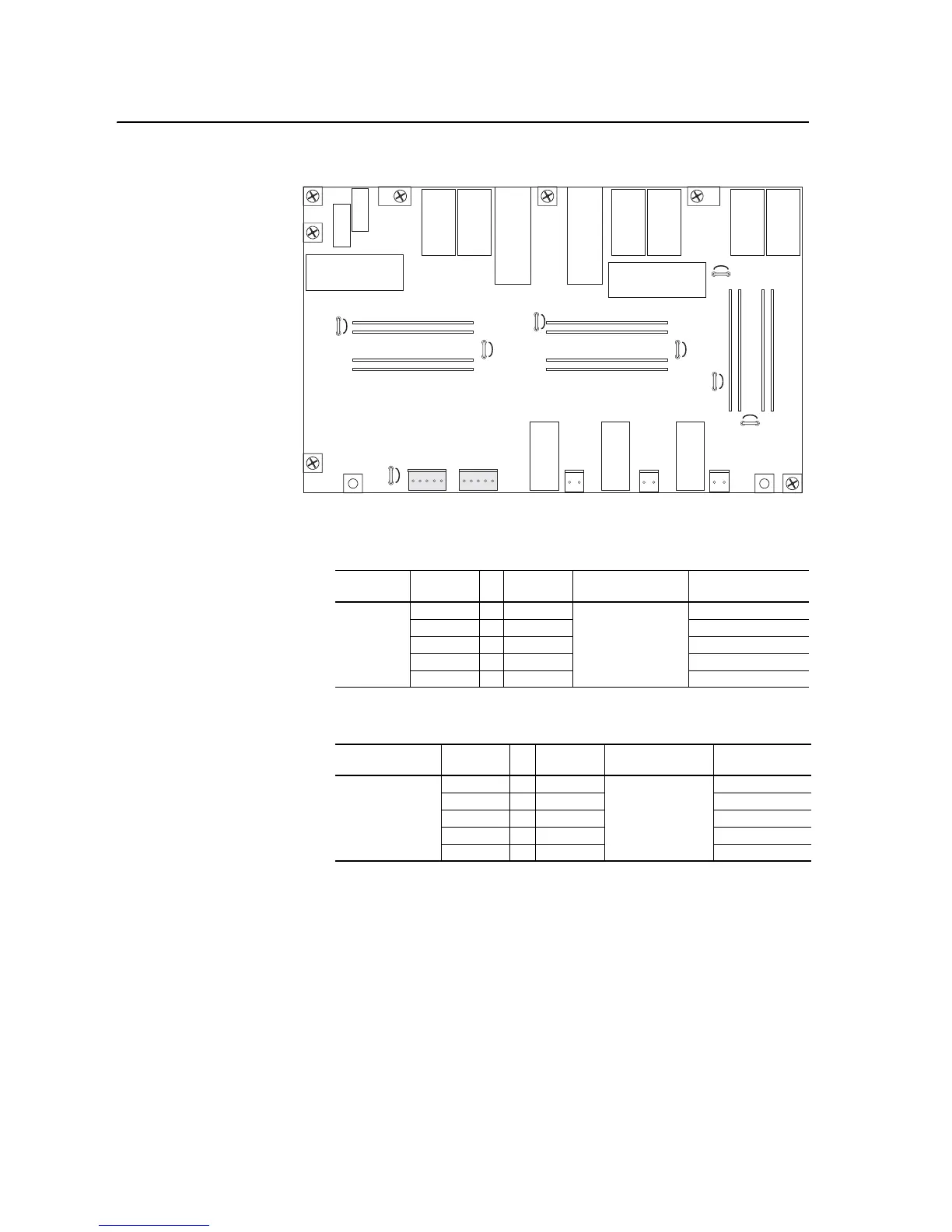

Figure C.3 Rectifier/Precharge Circuit Board Connectors
Table C.D ASIC Board to Rectifier/Precharge Circuit Board Phase V Connections
Table C.E Rectifier/Precharge Circuit Board Phase V to Rectifier/Precharge Circuit
Board Phase W Connections
X13 X6 X10 X11
X12
X9X100
X3
X2
X1
X4
X41
X8
X101
X50
J3
J7
J11
J1
J5
J9
J11
ASIC Board
Connector Pin Number to Pin Number
Rectifier Board Phase
V Connector Description
X2 1 . . . 1 X13 SWTS_DRV
2 . . . 2 SWTS_FB
3 . . . 3 DC -
4 . . . 4 Mains Fault
5 . . . 5 +24V
Rectifier Board
Phase V Connector Pin Number to Pin Number
Rectifier Board
Phase W Connector Description
X6 1 . . . 1 X13 SWTS_DRV
2. . . 2 SWTS_FB
3. . . 3 DC -
4. . . 4 Mains Fault
5 . . . 5 +24V
