Allen-Bradley PowerFlex 700H Service Manual

Connector Descriptions C-5

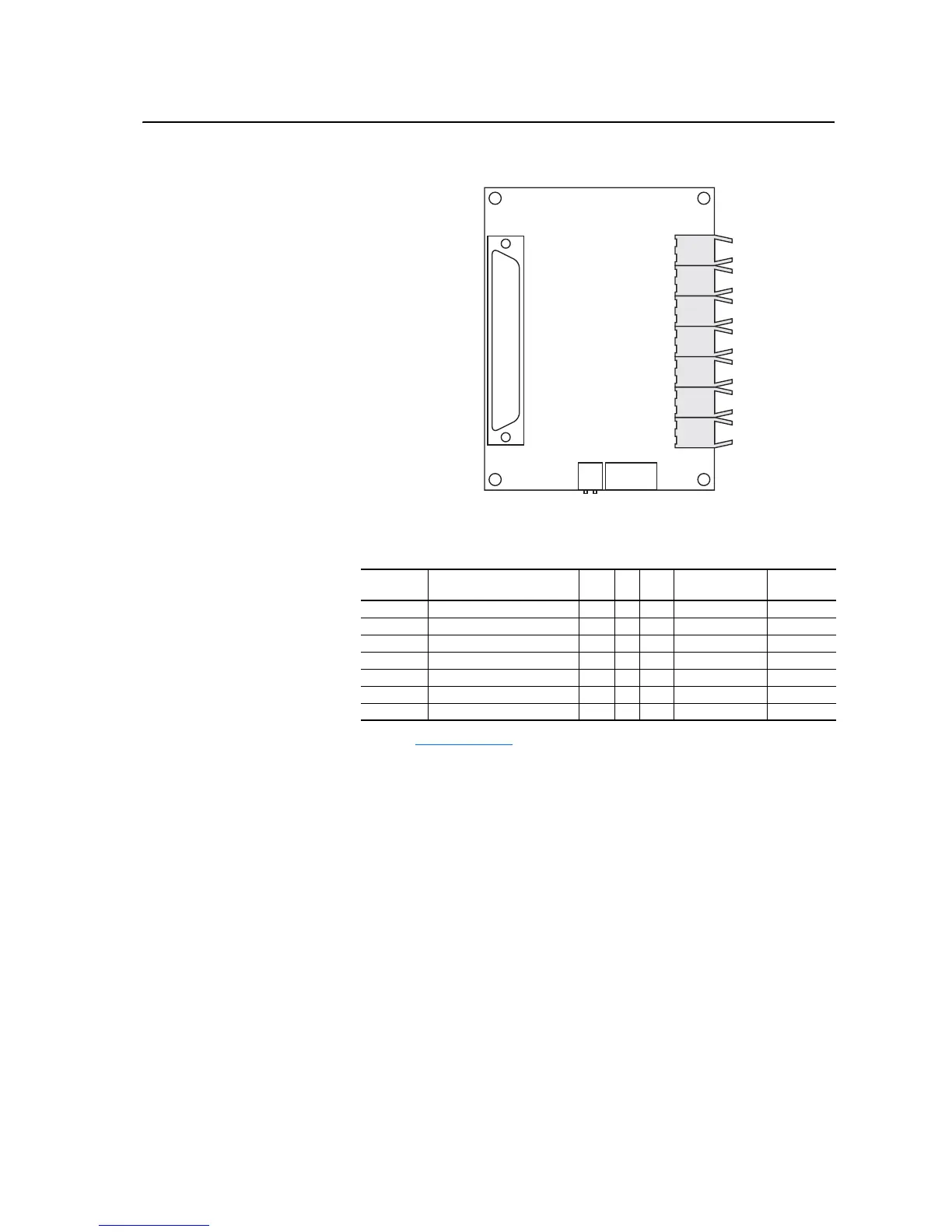

Figure C.4 PowerFlex 700H Fiber Optic Adapter Circuit Board Connectors
Table C.F PowerFlex 700H Fiber Optic Adapter Circuit Board to ASIC Board Fiber
Optic Connections
Description
700H Interface Board Fiber
Optic Connector Type to Type
ASIC Board Fiber
Connector
(1)
(1)
Refer to Figure C.1 on page C-2 for ASIC board fiber-optic connectors.
Description
ENA Out H1 TX . . . RX H1 Gate_Enable
UH H2 TX . . . RX H2 U_Gate
VH H3 TX . . . RX H3 V_Gate
WH H4 TX . . . RX H4 W_Gate
A/D Convert H5 TX . . . RX H5 A/D Convert
VBUS_TX H6 TX . . . RX H6 VBUS_RX
VBUS_RX H7 RX . . . TX H7 VBUS_TX
H1
H2
H3
H4
H5
H6
H7
