C-6 Connector Descriptions

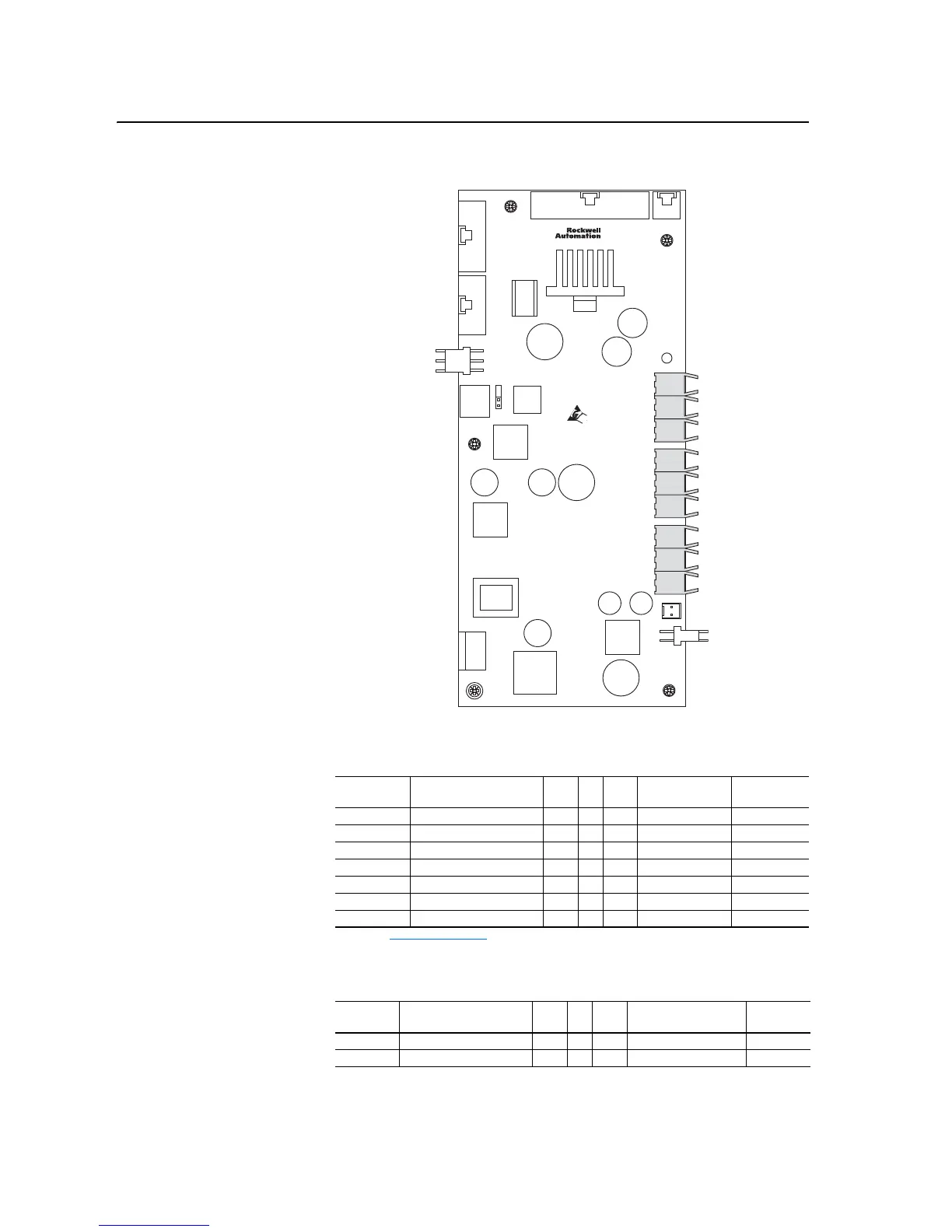

Figure C.5 PowerFlex 700S High Power Fiber Interface Circuit Board Connectors
Table C.G PowerFlex 700S High Power Fiber Optic Interface Board to ASIC Board
Fiber Optic Connections
Table C.H PowerFlex 700S High Power Fiber Optic Interface Board to Voltage
Feedback Board Fiber Optic Connections
Description
700SInterface Board
Fiber Optic Connector Type to Type
ASIC Board Fiber
Connector
(1)
(1)
Refer to Figure C.1 on page C-2 for ASIC board fiber-optic connectors.
Description
Gate_Enable J8 TX . . . RX H1 Gate_Enable
U_Post J9 TX . . . RX H2 U_Gate
V_Post J10 TX . . . RX H3 V_Gate
W_Post J11 TX . . . RX H4 W_Gate
A/D Convert J12 TX . . . RX H5 A/D Convert
VBUS_TX J14 TX . . . RX H6 VBUS_RX
VBUS_RX J13 RX . . . TX H7 VBUS_TX
Description
700SInterface Board
Fiber Optic Connector Type to Type
Voltage Feedback
Board Connector Description
TX J6 TX . . . RX J5 RX
RX J7 RX . . . TX J4 TX
J13
J14
J12
J11
J10
J9
J8
J6
J7
