Disassembly / Assembly Diagrams D-3

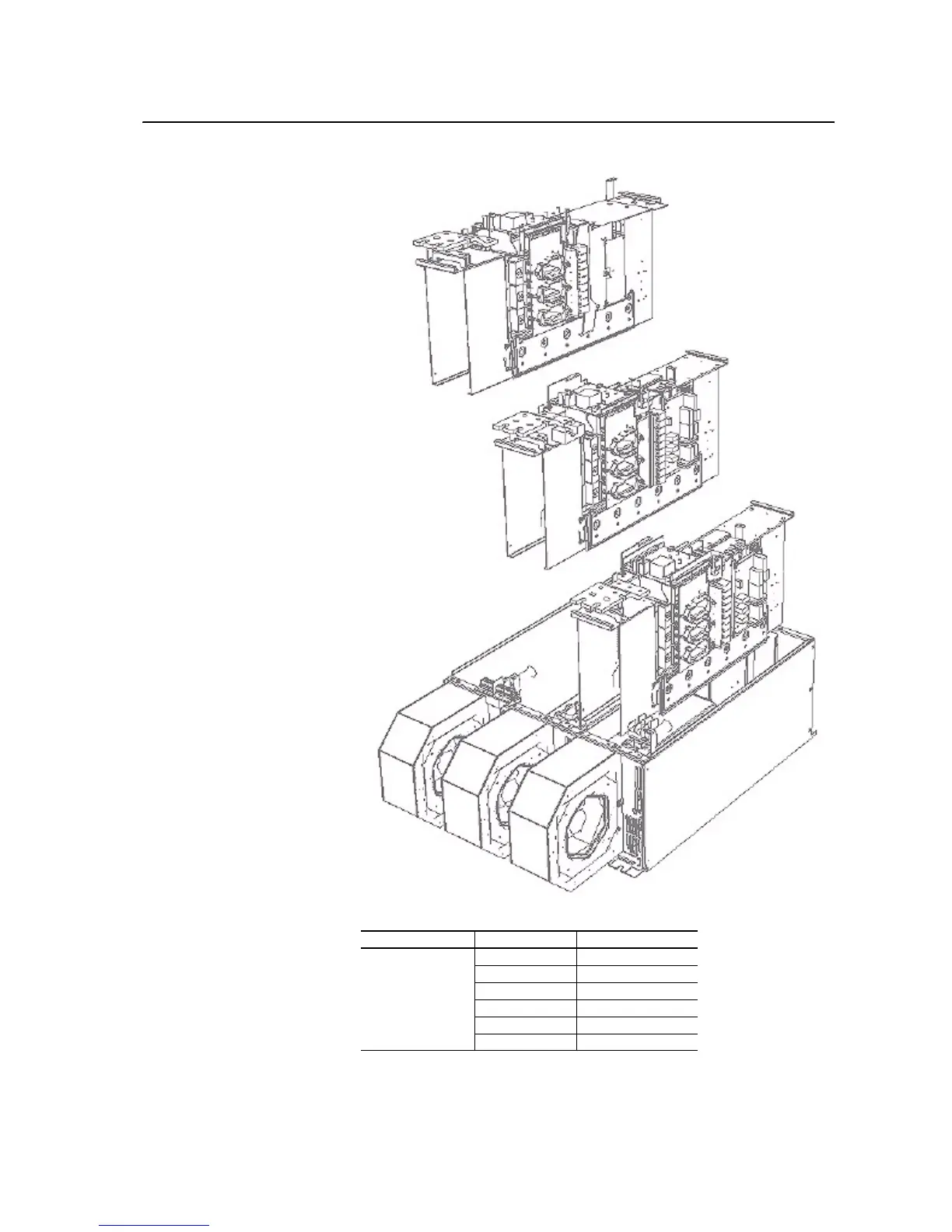

Figure D.2 Power Structure
Table D.B Power Structure Part Numbers
Part Name Rating Spare Part No.
Power Structure 400/480V, 590A SK-H1-PWRMOD-D590
400/480V, 650A SK-H1-PWRMOD-D650
400/480V, 730A SK-H1-PWRMOD-D730
600/690V, 460A SK-H1-PWRMOD-E460
600/690V, 502A SK-H1-PWRMOD-E502
600/690V, 590A SK-H1-PWRMOD-E590
Power Structure
