D-4 Disassembly / Assembly Diagrams

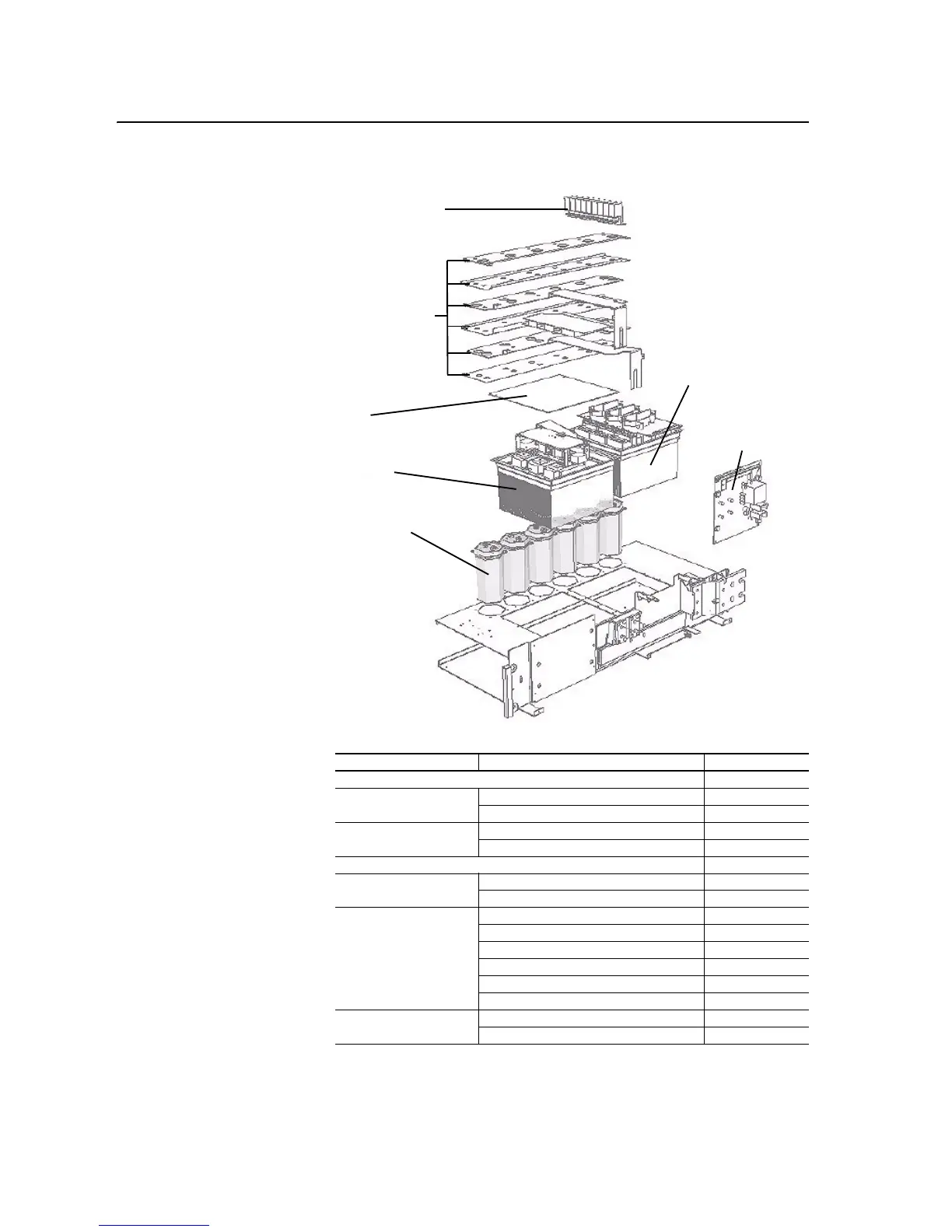

Figure D.3 Phase U Power Structure Components
Table D.C Phase U Power Structure Components Part Numbers
Snubber Capacitor Assembly
DC Link Bus Bar Kit - 500V
Cover Plate
Rectifying Module
Output Power Module
Gate Driver Board
Electrolytic Capacitor
480V Shown
Part Name Spare Part No.
Cover Plate NA
DC Link Bus Bar Kit 500V NA
690V NA
Electrolytic Capacitor ELKO 3300Pf 420V Bus Capacitor - 400/480V 20-PP01005
ELKO 5600Pf 420V Bus Capacitor - 600/690V 20-PP01099
Snubber Capacitor Assembly 20-PP10019
Gate Driver Board - 480V SK-H1-GDB1-F11D
690V SK-H1-GDB1-F11E
Output Power Module 400/480V SK-H1-QOUT-D590
400/480V SK-H1-QOUT-D650
400/480V SK-H1-QOUT-D730
600/690V SK-H1-QOUT-E460
600/690V SK-H1-QOUT-E502
600/690V SK-H1-QOUT-E590
Rectifying Module 400/480V 20-FR10820
600/690V 20-FR10821
To Next Page
