3-22 Access Procedures

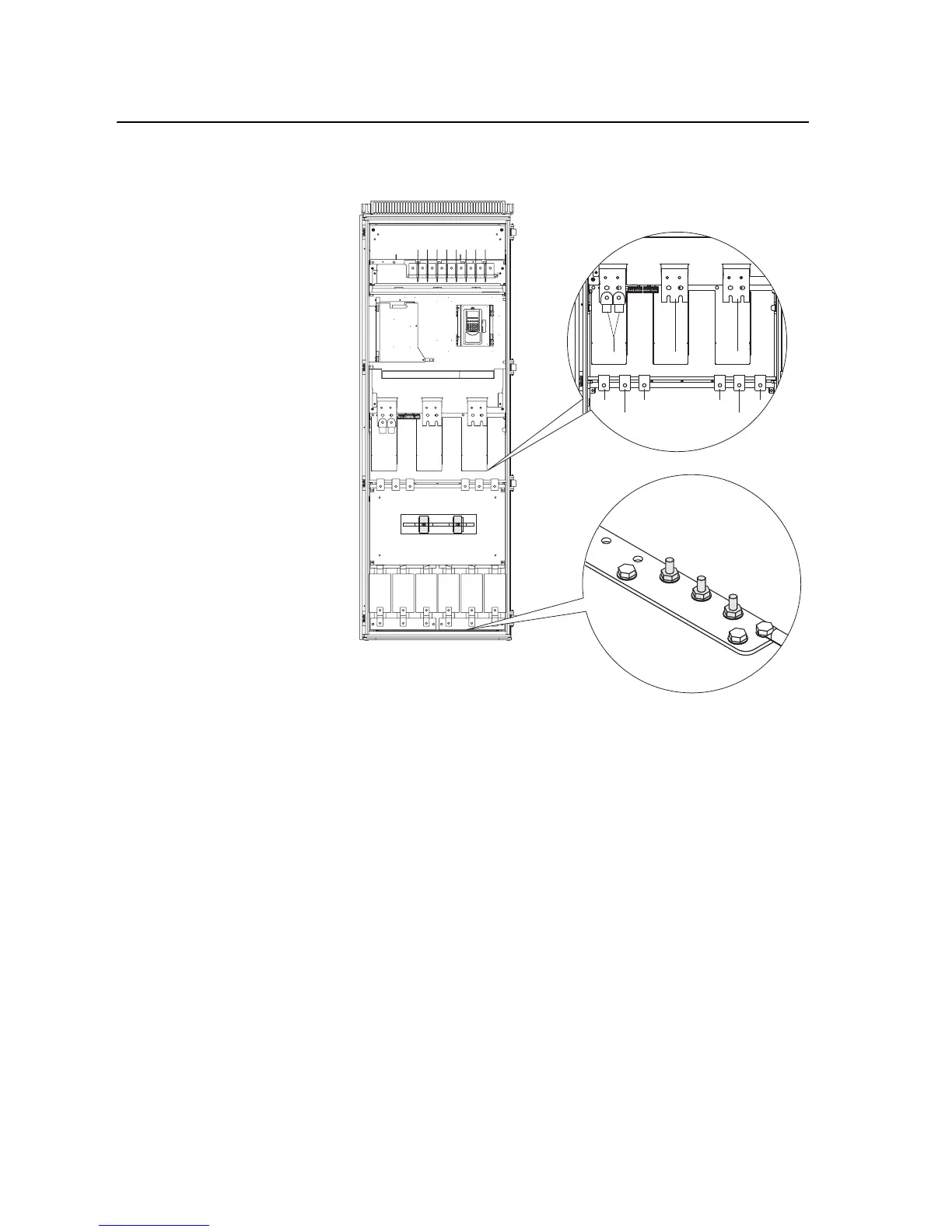

5. Remove the input (AC or DC) and brake wiring (if equipped) from the
incoming terminals at the top of the power structure.
2L1
2L2
2L31L1
1L2
1L3
U/T1 V/T2 W/T3
PE
Motor Connection
Terminals
AC Power
Terminals
Ground
Connection
