Allen-Bradley SLC 500 BASIC User Manual

Publication 1746-UM004A-US-P
Module and Development Software Overview 1-11
Figure 1.8 also shows the module interfaced with a DH485 network through a
1747-AIC link coupler. The link coupler also provides an interface to the DH485
network for a personal computer with the BASIC Development Software. In this
configuration, a 1784-KR DH485 Interface Card must be installed in the personal
computer.

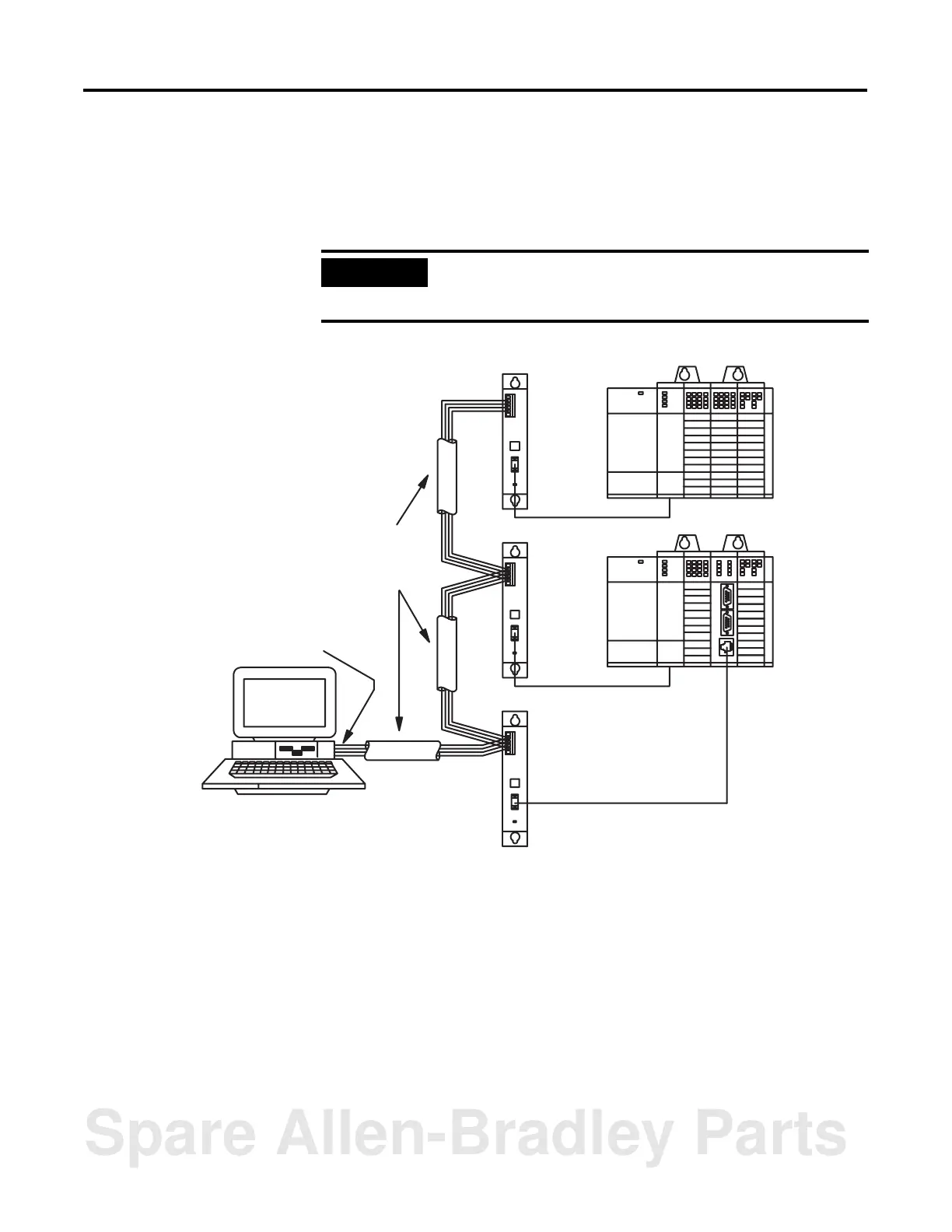

Figure 1.8 DH485 Network Configuration Using a 1747-C10 Cable
IMPORTANT
Typ e
PBASE/KR to select the driver software. This allows you to
interface directly to the DH485 network when using a 1784-KR
DH485 Interface Card in your personal computer.
Personal Computer with BASIC
Development Software
1784-KR DH485
Interface Card
SLC 500
Controller with
BASIC or
BASIC-T
DH485 Communication
Cable
(Belden #9842)
SLC 500
Controller
1747-C11 Cable
1747-C11 Cable
1747-C10 Cable
Link Coupler
1747-AIC
Link Coupler
1747-AIC
Link Coupler
1747-AIC
