Produce and Consume Tags (interlock controllers)
Chapter 5
Rockwell Automation Publication CNET-UM001F-EN-P - February 2018 85

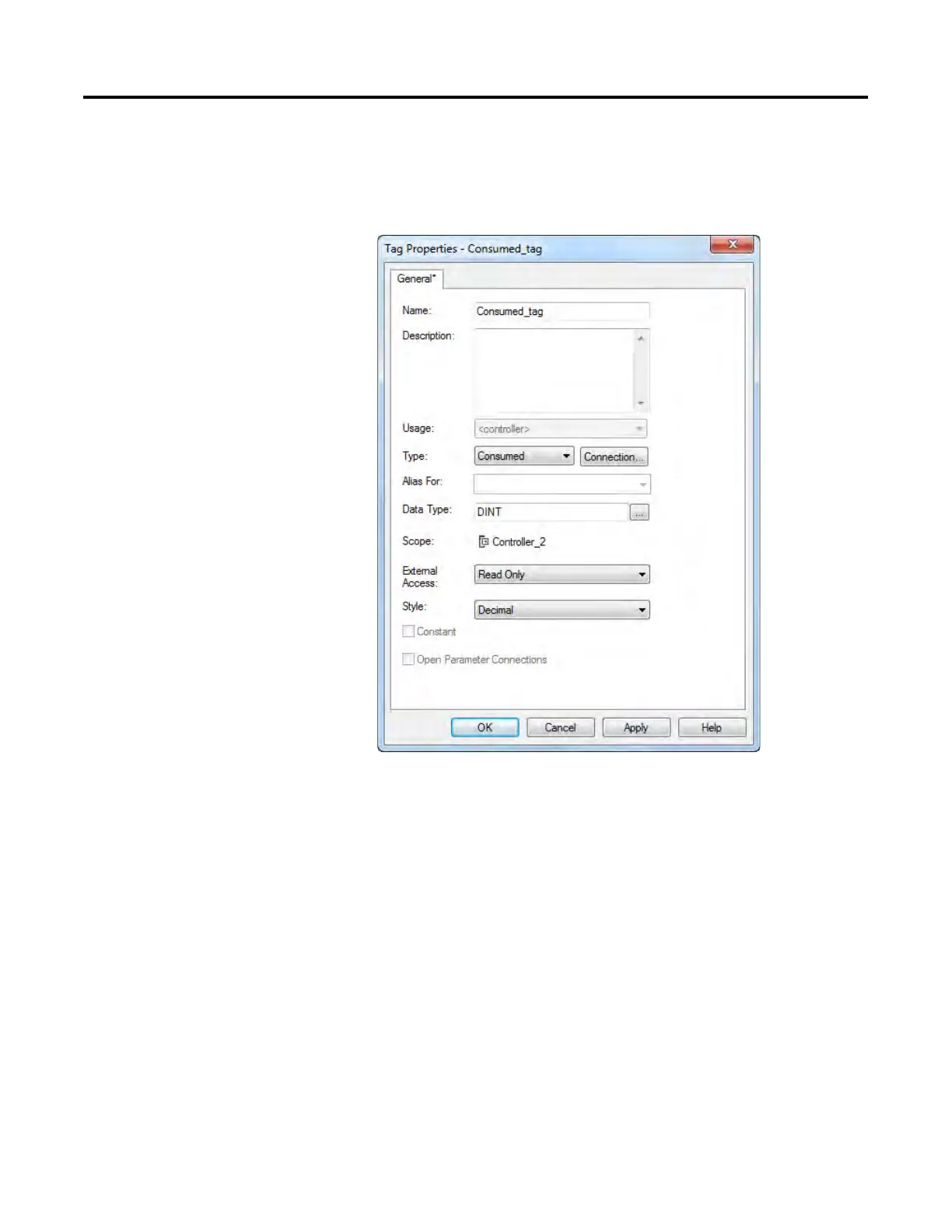

• From the Type pull-down menu, choose Consumed.
• In the Data Type field, type a data type that the controller can
produce. A controller cannot produce a tag by using the MSG or
INT data types.
8. Click Connection.
