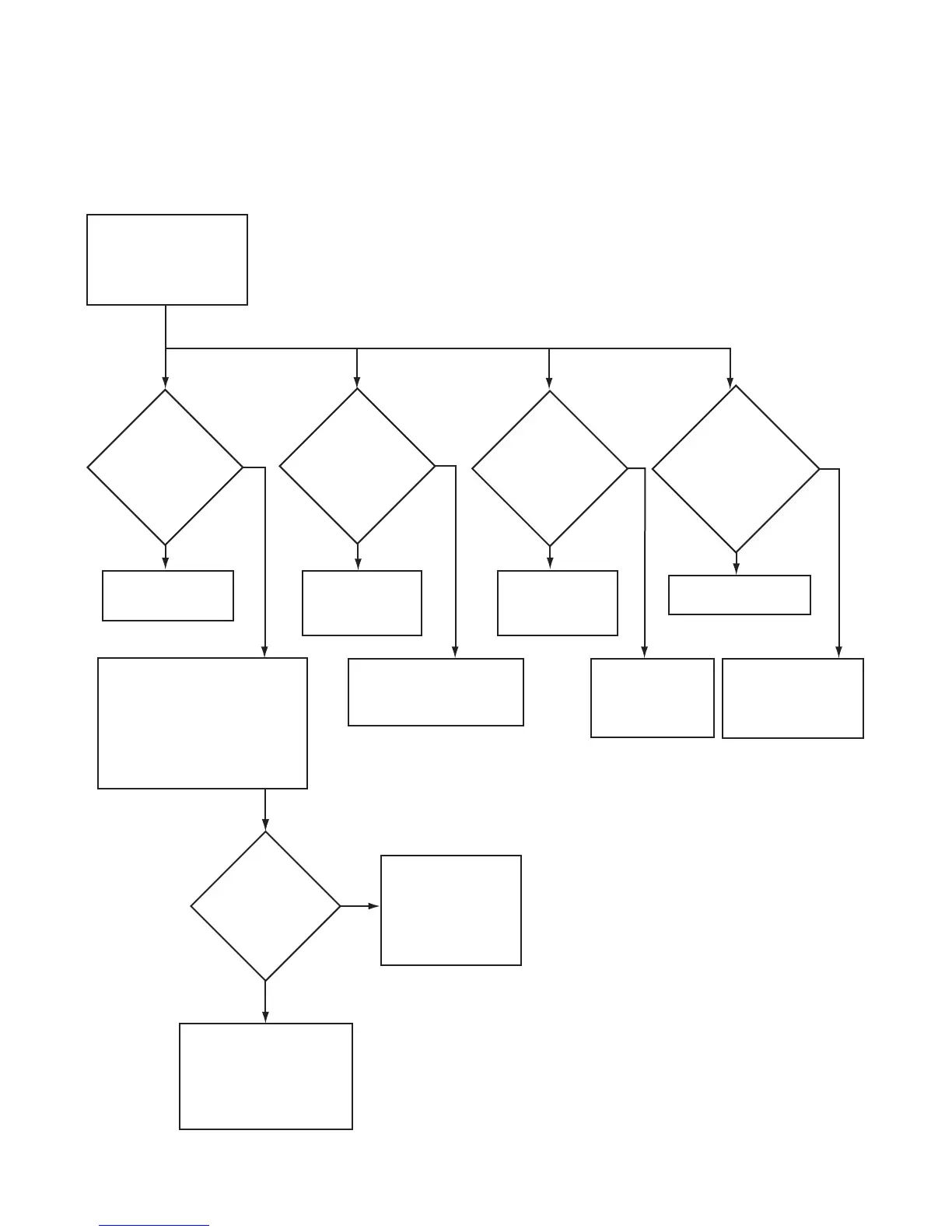

39. Audit Switch Function Analysis
NO
NO
Incorrect audit counts:
Coin drop.
Service door.
Coin vault.
Cycle.
Investigate
–Tampering.
– Service door and mach
cycle var reports.
NO
NO
Check for proper wiring
and connections.
After wiring has been
confirmed correct, replace
electronic control board.
YES
YES
Coin drop
diagnostic test
"Coin Drop Input Test"
does the drop
pass the
test?
Coin vault
diagnostic test
"Coin Vault
Opening Test"
does the vault
pass the
test?
Service
door
diagnostic test
"Service Door
Opening Test"
does the door
pass the
test?
YES
Is the
audit coin
counter
advancing?
YES
Investigate
– Tampering.
– Service door and
mach cycle var
reports.
Investigate
– Tampering.
– Coin vault and
service door
opening reports.
– Machine/cycle
var reports.
Investigate
– Tampering.
– Coin vault and
collection
reports.
Run a
complete
wash cycle and
review the manual
audit or Micro-wand
"Display Counts"
does the cycle
counter
advance?
Check wiring and
connections.
Replace coin drop.
The audit coin count will
not advance in the diagnostic
cycle.
Micro-wand or manual EC
control audit will have to be
accessed to determine whether
audit counters are advancing.
Check wiring and
connections.
Replace service
door switch.
Check wiring and
connections.
Replace coin
vault switch.
Replace electronic
control board.
YES
NO
NOTE: Usually review two consecutive audit reports
before sending service personnel to investigate.
Remember, the audit system may be detecting
tampering of the EC unit.
In audit report analysis, the EC computer operator
will have to determine, from the audit reports, what
the servicer should examine on the EC units.
If the servicer cannot find a particular problem,
consult the appropriate audit reports for further analysis.
Cycle
test
Exit diagnostic test
NOTE: In the cycle audit test, the cycle count will not
advance on a "rapid advance" cycle. The manual
control audit or Micro-wand "show counts" will
have to be accessed to determine whether audit
counters are advancing. Also, the cycle count
does not activate until the end of the cycle.
D216S
