Allied Systems Freeman 370 - Page 29

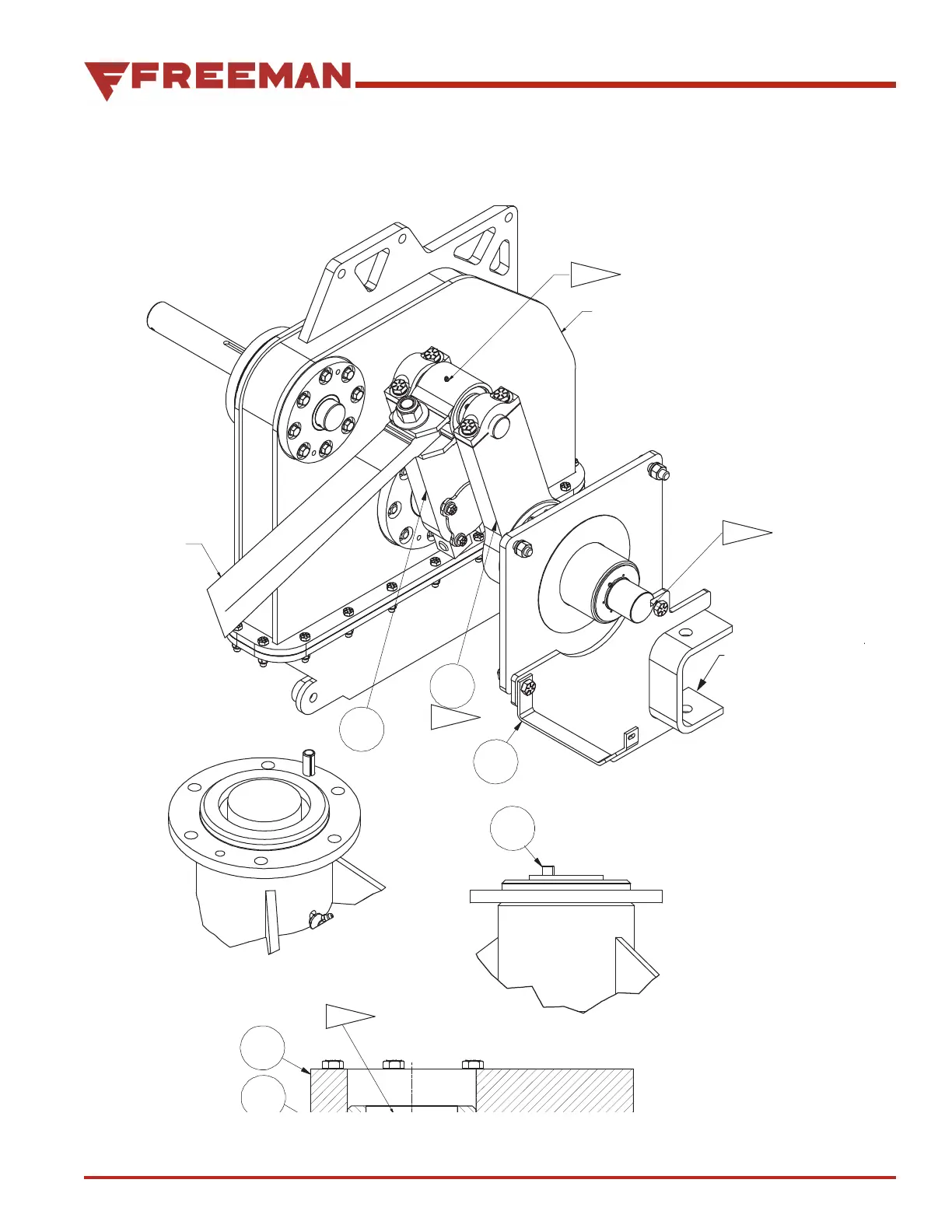

Gearbox Installation (16" Frame)
Page 4 of 5
DETAIL C
ROLL PIN INSTL
DRIVE ARM NOT SHOWN
PLUNGER
ROD
33
4
3
GEARBOX
35
2-5
2-5
DRIVE ARM/SHAFT TIMING SETUP
DRIVE ARM
KEY
KEY FACES FORWARD
(FRONT OF BALLER SHAFT)
SECTION D-D
2-3
8
3
NOTES:
TORQUE BOLT TO 750-755 FT LBS.
INSTALL ITEM 33 AT THIS LEVEL, IT IS CALLED OUT
IN THE SHIELD GROUP.
DRIVE ARM IS TO BE ASSEMBLED TO THE RIGHT-HAND SIDE
PLATE WITH THE CHAMFER ON THE DRIVE ARM FACING THE
SIDE PLATE.
ADD 221771W FLAT WASHERS AS NEEDED BETWEEN KEEPER
PLATE AND CRANK ARM SO THAT KEEPER PLATE IS BOLTED
FLAT TO CRANK ARM AND NOT PUSHING ON END OF
GEARBOX OUTPUT SHAFT.
REFER TO DRIVE ARM SETUP VIEW FOR ORIENTATION OF
SHAFT TO DRIVE ARM
GREASE CONNECT
ING ROD HOUSING UNTIL
GREASE IS SEEN ON BOTH SIDES OF HOUSING
WHEN VIEWED FROM ABOVE AND BELOW THE HOUSING.
2-1
2-2
2-3
2-4
2-5
2-6
2-6
DRAWBAR MOUNT
(RIGHT HAND)
CRANK ARM & DRIVE ARM
C
D
D
17 18
23 21
20 22
2-1
2-3
33
FASTENER COME WITH ITEM 3
P/N:221659W
6
FASTENER COME WITH ITEM 4
P/N:221659W
4
5
21
2-4
2-4
2-4
36
36
DRAWBAR MOUNT
(RIGHT HAND)
29
89-096Rev: 11-2016
