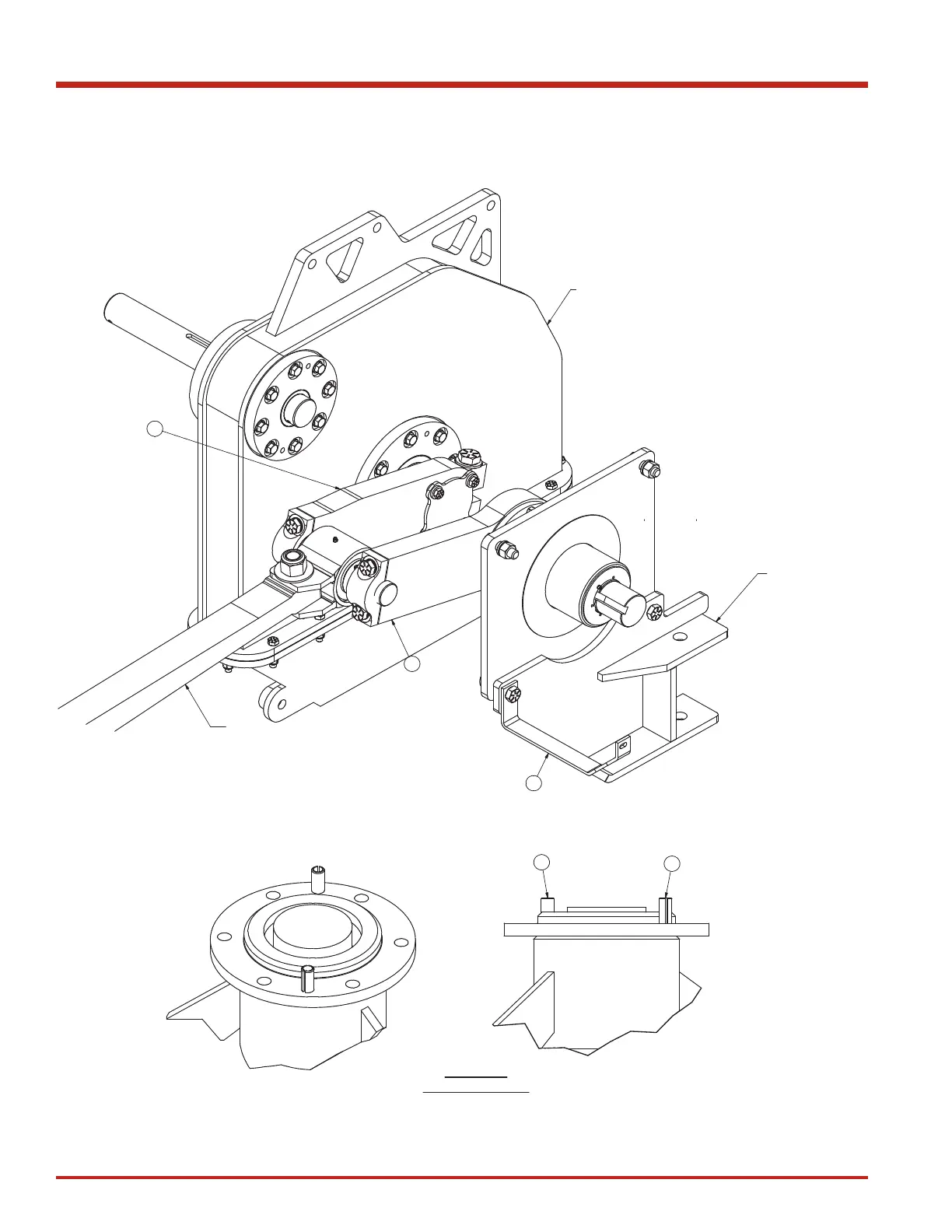

Gearbo
x Installation 14”X21”KTD (16”
Frame)
Page 4 of 5
DETAIL C
ROLL PIN INSTL
DR
IVE ARM NOT SHOWN
REF:
DR
AWB
AR MOUNT
(RIGHT HAND)
REF:
PLUNGER ROD
33
REF
4
3
REF: G
EA
RBOX
35
35
44
89-096
Re
v:
11-2016
43
45
Table of Contents
Table of Contents
2
Safety Symbols
3
General
3
Intended Use Statement
3
Safety
3
Operation Warnings
4
Hydraulic Hazards
5
Maintenance Safety
5
Safety Equipment
6
Electrical Hazards
6
Hot Oil Hazards
6
Compressed Air Hazards
6
Fire Suppression
7
Fire Safety
7
Fire Fighting Equipment
7
Reduce the Risk of Fire
7
Baler Serial Number
9
Power Unit Serial Number
9
Serial Number Location
9
Check Oil Level Daily
10
Connecting Rod/Crank Arm
10
Gearbox Lubrication
10
Maintenance
10
Parts Lists
11
Illustrations
11
Gearbox Baler Parts
11
Front End Installation, Gearbox Baler
12
Front End Installation, Gearbox 37X
12
Front End Assembly, Gearbox 37X
14
Engine Installation, 37X
16
Air Cleaner Assembly
24
Gearbox Installation (16" Frame)
26
Gearbox Installation 15”KTD (16” Frame)
31
Knotter Drive Installation, Gearbox Baler
49
Shield Installation, LH
50
Plunger Assy, 16”X22”
54
Plunger Assy, Kittted for 15"X22
56
Plunger Assy, Kittted for 14"X22
61
Plunger Assy, Kitted for 14"X21
65
Connecting Rod Assy, Gearbox Baler, 15/16" 3-Tie
67
Connecting Rod Assy, Gearbox Baler, 14" 3-Tie
68
Tensioning/Rear Mnt Inst, 37X - 16
69
Tensioning/Rear Mounts Inst - 16” Frame Ktd 15”
73
Tensioning/Rear Mnt Inst, 37X - 16” Frame Ktd-15”
73
Tensioning/Rear Mnt Inst, 37X - 16" Ktd - 15
74
Tensioning/Rear Mnt Inst, 37X - 16" Ktd - 14
74
Tensioning/Rear Mnt Inst, 37X - 16" Ktd - 14"X21
81
Tensioning/Rear Mnt Inst - 380/385, 14" Kitted
85
Frame & Axle, 16”; Gearbox Baler
87
Frame & Axle, 14X21”; Gearbox Baler
88
Chamber Inst, 14X21 Gearbox 3 Tie
89
Chamber Inst, 14X21 Gearbox 3 Tie
93
Chamber Installation Gearbox 3 Tie 14X22,15X22,16X22
97
