Allied Systems Freeman 370 User Manual

Gearbox
Page 2 of 2
47
89-096Rev: 11-2016
1-1
1-2
5
6
2
1
1-3
1-4
1-5
RH SIDE
FRONT
LH SIDE
NOTES
SHIM THIS SIDE AS REQUIRED. SHIM UNTIL THERE IS THE LEAST
AMOUNT OF ENDPLAY (.003" OR LESS) WITH THE SUPPLIED SHIMS
(ITEM 28 THRU 37, 41 THRU 44) PRIOR TO APPLICATION OF ANY SEALANT.
USE SEALANT (ITEM 38) ON SURFACES BETWEEN ITEM 4 & SHIMS,
ITEM 1 & SHIMS, ITEM 1 & 4, AND INDIVIDUAL SHIMS.
USE ITEM 39 ON THREADS OF ITEM 47.
POSITION CLEARANCE HOLE FOR JACKING BOLT IN LINE WITH
JACKING TAP ON BEARING CARRIER.
PLACE MAGNET (R525293) IN A LOCATION INSIDE THE BOTTOM
WE
LDMENT WHERE IT DOES NOT MAKE CONTACT WITH THE
GEAR. REFER TO SHEET 3 FOR PREFERRED
LOCATION.
DO NOT PAINT EXPOSED SURFACE OF SHAFTS.
1-6
47
4
46
28
29
30
31
32
41
42
27
14
15
2
20
17
9
13
19
48
4
47
46
27
1
6
17
1-5
1-2
1-4
1-1
1-1
1-4
1-2
1-6
1-2
1-4
1-2
1-1
1-4
1-1
1-2
1-1
1-2
1-4
1-2
1-4
1-1
1-4
1-2
1-1
1-2
1-3
1-3
1-2
SENSOR
PLUG
DRAIN
16
8

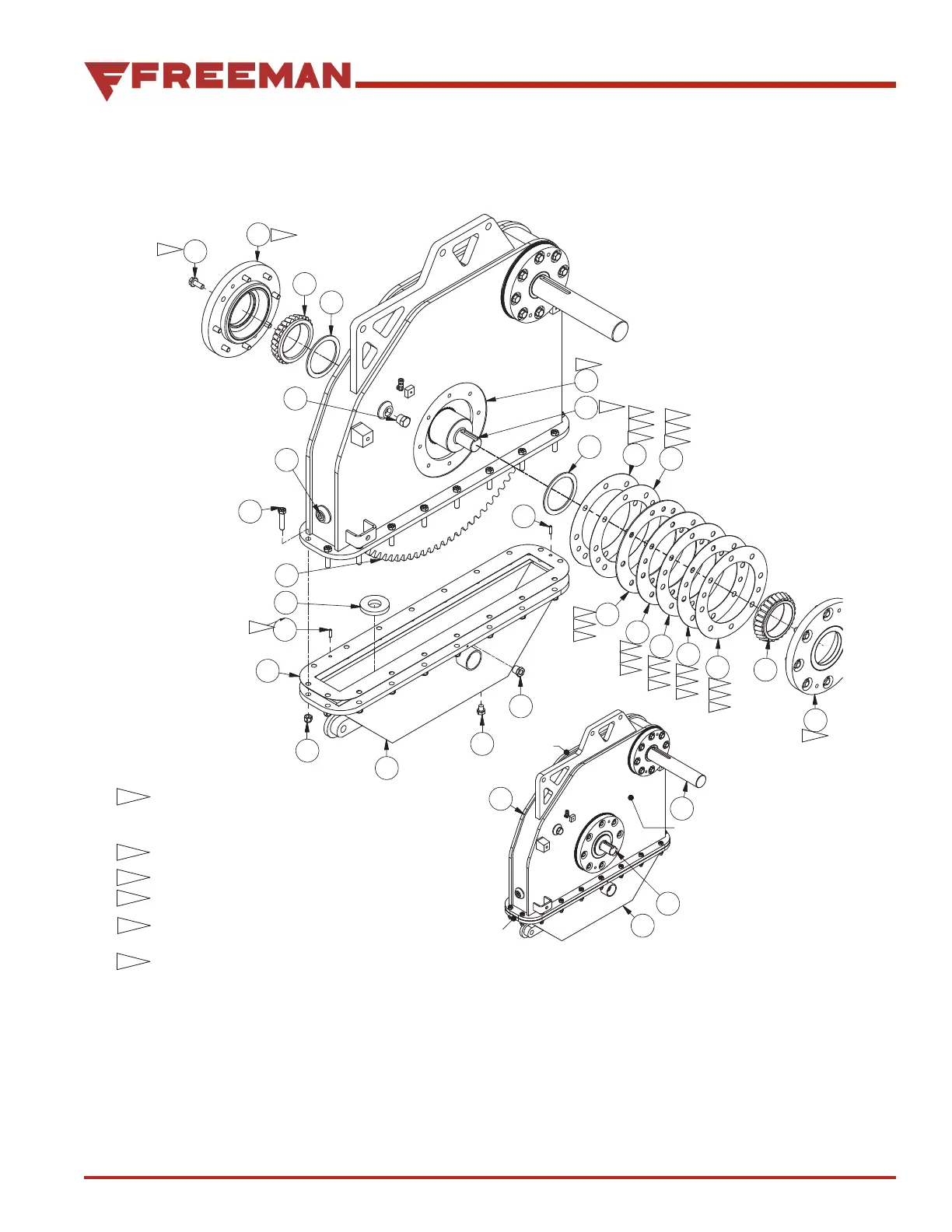

Gearbox Assembly
Page 2 of 3
