Gearbox
Page 1 of 2
46
89-096 Rev: 11-2016
Item Part No. Qty Description Item Part No. Qty Description
906765 Gearbox Assy
1 906774 1 . Top Weldment
2 906781 1 . Bottom Weldment
3 906772 2 . Carrier Assy
4 906770 2 . Carrier Assy
5 906767 1 . Shaft, Pinion
6 906766 1 . Shaft, Gear
7 906769 1 . Pinion
8 906768 1 . Gear
9 906792 1 . Gasket
12 21420W 1 . Breather
13 R525293 1 . Magnet, Ceramic
14 253208 1 . Glass, Sight
15 256829 1 . Plug, Drain
16 209918 1 . Fitting
17 222703W 2 . Pin, Dowel
18 SMS0000404 32 . Screw
19 221574W 18 . Capscrew
20 223587 18 . Nut, Esna
26 906788 2 . Shim, Pinion Shaft
27 908260 2 . Shim, Gear Shaft
28 908248 1 . Shim, Carrier
29 908249 1 . Shim, Carrier
30 908250 1 . Shim, Carrier
31 908251 1 . Shim, Carrier
32 908252 1 . Shim, Carrier
33 908253 1 . Shim, Carrier
34 908254 1 . Shim, Carrier
35 908255 1 . Shim, Carrier
36 908256 1 . Shim, Carrier
37 908257 1 . Shim, Carrier
38 244260 1TB . Sealant, Anaerobic
39 246037 1BTL . Threadlock
40 FT00000171 1 . 1/8 Std Blk Pipe 90* Elbow
41 909506 1 . Shim, Carrier
42 909542 1 . Shim, Carrier
43 909543 1 . Shim, Carrier
44 909544 1 . Shim, Carrier
45 906795 2 . Cone, Roller Bearing
46 1314686W 2 . Bearing Cone
47 2301597W 16 . Screw, Ser Flg
48 R13801764 1 . Fitting
Rev H

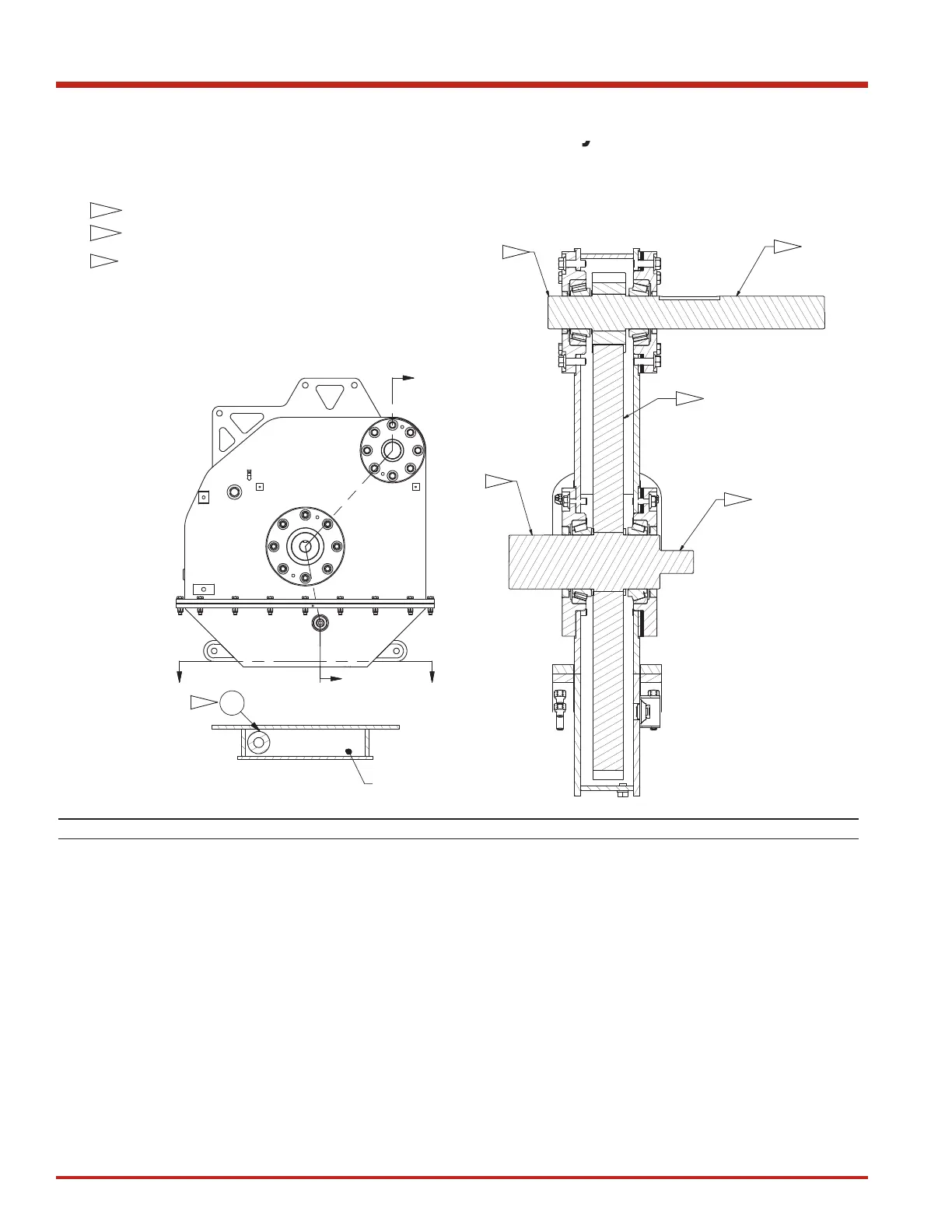

SECTION B-B
SECTION C-C
B
B
CC
13
DRAIN PLUG
3-1
NOTES:
PLACE MAGNET (R525293) IN A LOCATION INSIDE THE BOTTOM WELDMENT
WHERE IT DOES NOT MAKE CONTACT WITH THE GEAR.
DO NOT PAINT EXPOSED SURFACE OF SHAFTS.
PRIOR TO INSTALLATION OF PINION SHAFT, MEASURE THE MOVEMENT OF
THE GEAR TO CONFIRM IT MEETS THE FOLLOWING CRITERIA
END PLAY: .005" OR LESS
RUNOUT : .015" OR LESS
WOBBLE : .007" OR LESS AFTER
END PLAY REMOVED
PROCEDURE TO MEASURE THESE VALUES ARE LOCATED UNDER
THE "DOCS" TAB IN THE VIEW
ER.
3-1
3-2
3-2
3-2
3-2
3-2
3-3
3-3
