AT-MMC6000 Series Installation Guide
41

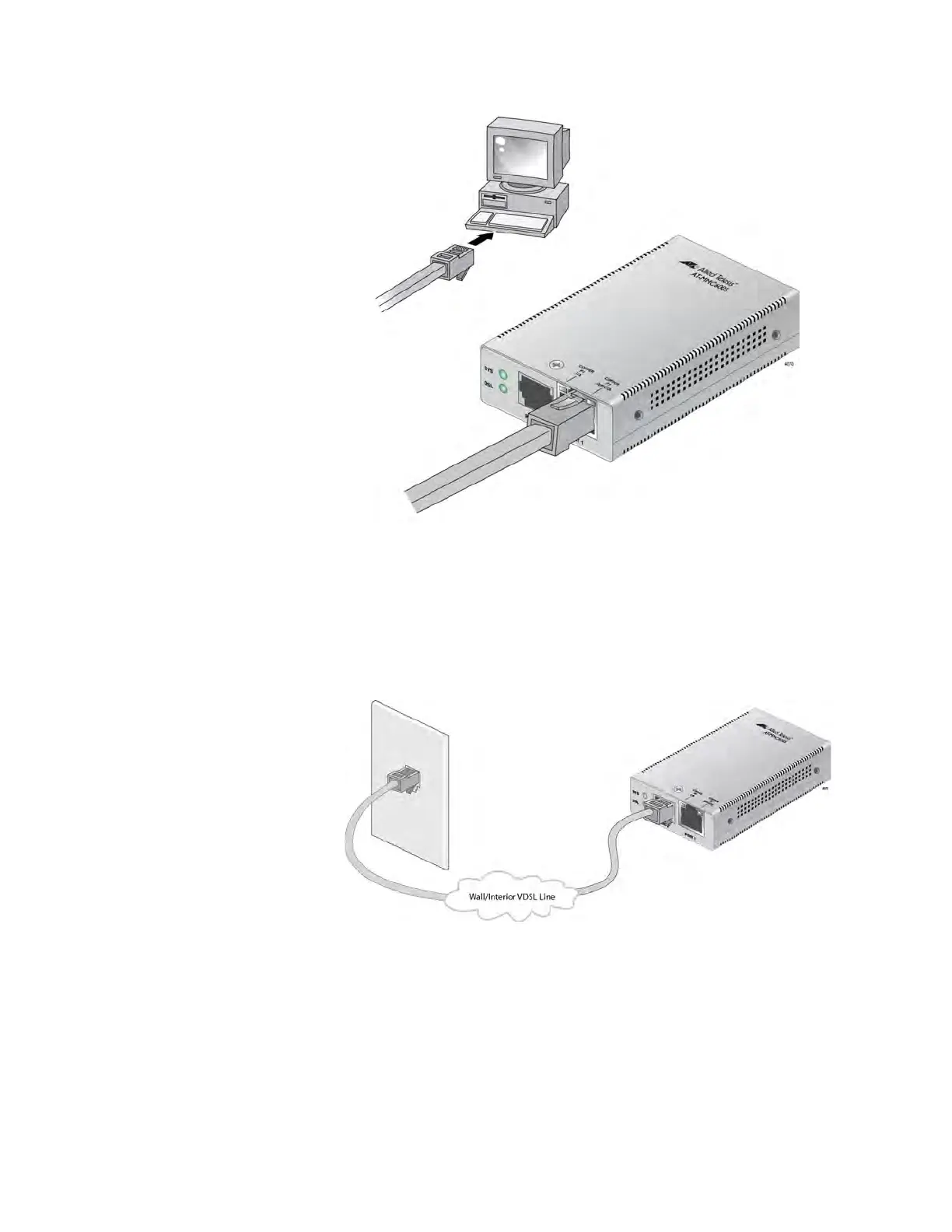

Figure 12. Subscriber Unit Ethernet Port to Computer
2. Connect the DSL port on the Subscriber unit to the VDSL wall jack or
the interior VDSL line in the building with either a phone line for the
AT-MMC6005 or a coax cable for the AT-MMC6006 as shown in
Figure 13. This connection allows the Subscriber unit to communicate
directly with the Provider unit.
Figure 13. Subscriber Unit DSL Port to DSL Line in Building
3. Go to “Powering On the Subscriber Unit”.
