AT-MMCWLMT Kit Installation
56

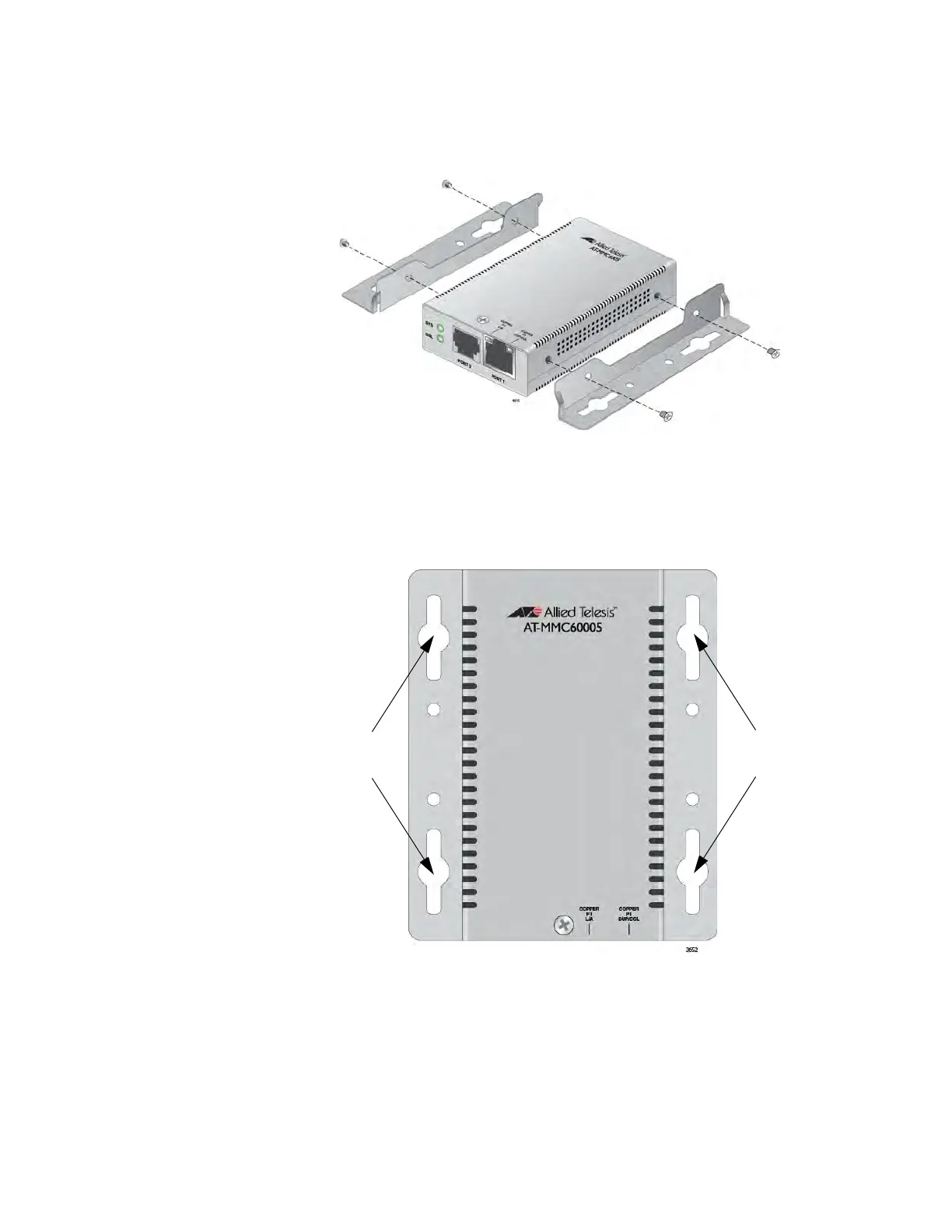

4. Orient the brackets against the sides of the unit, as shown in Figure
21, and secure them to the unit with the four of the brackets screws
included.
Figure 21. Attaching the Brackets to the Media Converter
5. Position the unit and its brackets on the wall. Use a pencil or pen to
mark the wall with the locations of the four holes in the brackets. The
unit should be oriented as shown in Figure 22.
Figure 22. Marking the Screw Hole Locations
6. Install four plastic anchors included with AT-MMCWLMT Kit into the
wall, at the locations marked in the previous step.
Mark locations Mark locations
