Allied Telesis AT-MMC6005 - Powering On the Provider Unit

Installation
48
Powering On the
Provider Unit
To apply power to the Provider unit, perform the following:
1. Plug the DC of the external power adapter to the power receptacle
connector labeled 12VDC on the back panel of the unit and turn the
cord clockwise one-quarter turn to lock, as shown in Figure 14 on page
42.

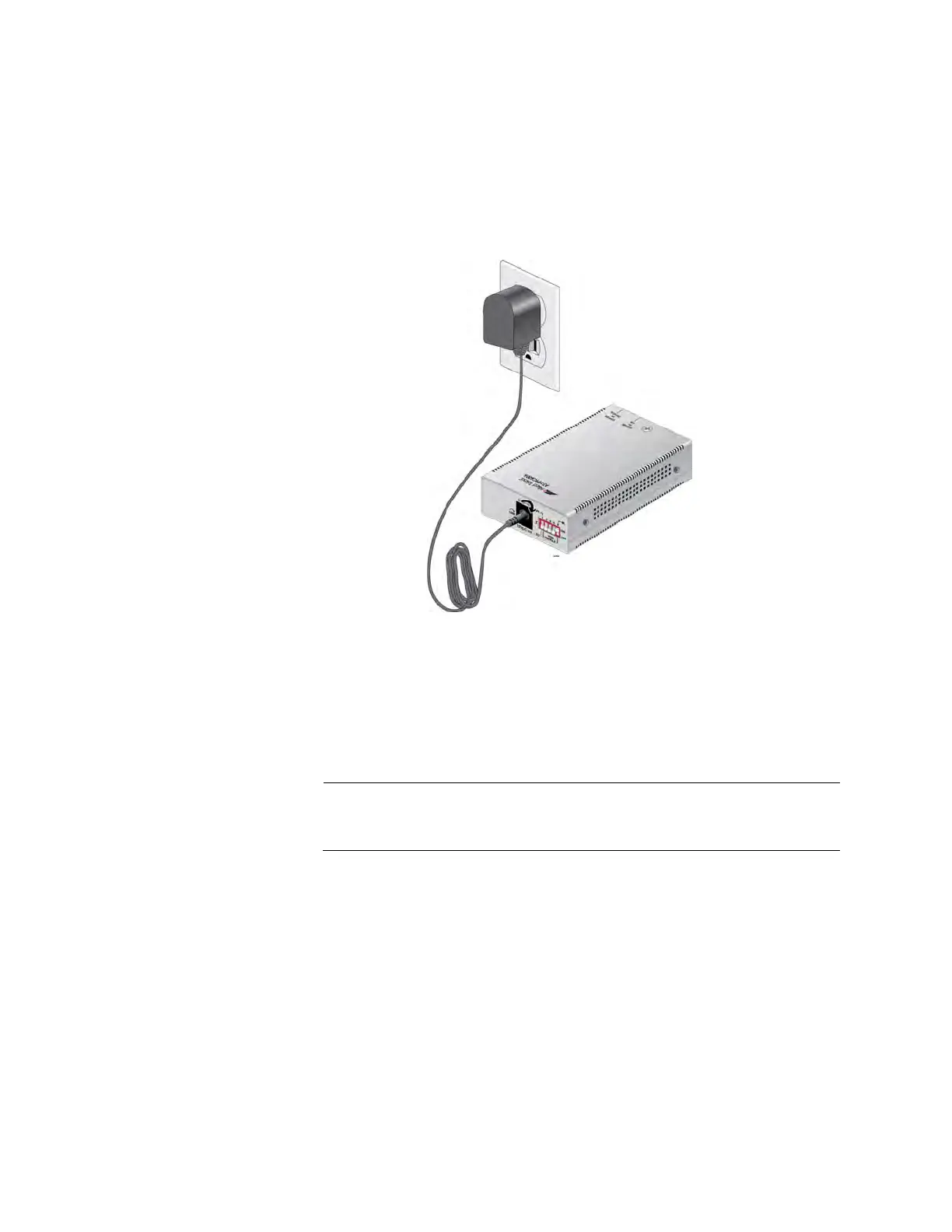

Figure 19. Provider Unit - Connecting 12VDC Power Adapter
2. Plug the power adapter to a power outlet. Refer to “Power
Specifications” on page 52 for power requirements.
3. Verify that the SYS LED is solid green with a brief heartbeat blink. If
the SYS LED is off, refer to “Troubleshooting” on page 49.
Note
To power the unit OFF, disconnect the power adapter from the
power outlet
