In the load balance mode for Assigned Routing, the first WAN port (WAN1) will be saved for the traffic of
the IP addresses or the application service ports that are not assigned to other WANs (WAN2). Therefore, in this
mode, we recommend assigning one of the connections to the first WAN. When other WANs (WAN2) are
broken and connection error remove (Remove the Connection) has been selected for the connection detection
system, traffic will be shifted to the first WAN (WAN1). In addition, if the first WAN (WAN1) is broken, the traffic
will be shifted to other WANs in turn. For example, the traffic will be shifted to WAN2.
6.2.3 Protocol Binding
Interface Configuration
Router allows maximum two WAN interface, the bandwidth and real connection of every WAN will impact the
load balance mechanism; therefore you need to set the Bandwidth and the Network service detection by each WAN
Port correctly.

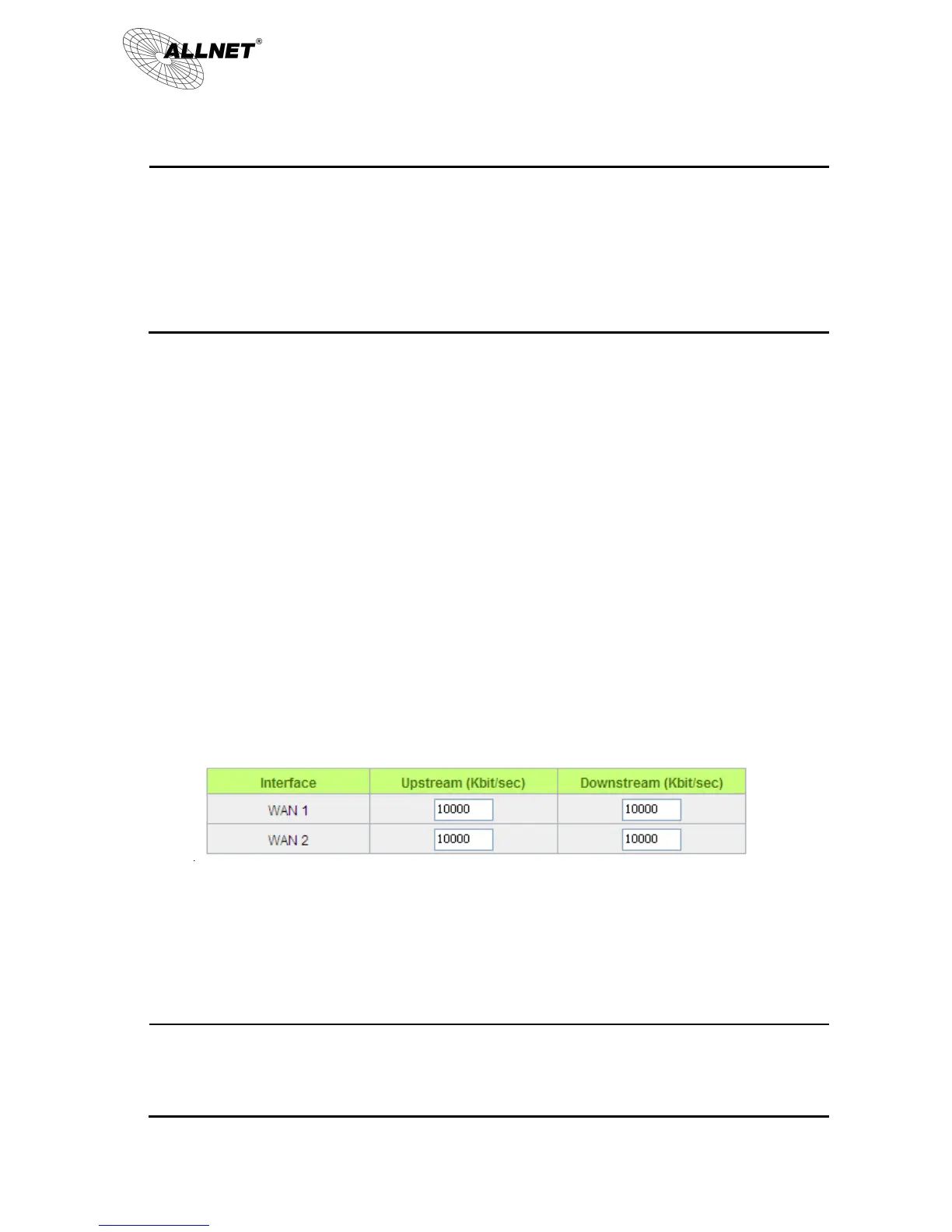

Bandwidth Configuration
When Auto Load Balance mode is selected, the device will select sessions or IP and the WAN bandwidth will
automatically allocate connections to achieve load balancing for external connections. The network bandwidth is set
by what users input for it. For example, if the upload bandwidth of both WANs is 512Kbit/sec, the automatic load ratio
will be 1:1; if one of the upload bandwidths is 1024Kbit/sec, while the other is 512Kbit/sec, the automatic load ratio
will be 2:1. Therefore, to ensure that the device can balance the actual network load, please input real upload and
download bandwidths. The section refers to QoS configuration. Therefore, it should be set in QoS page. Please refer to
8.1 QoS bandwidth configuration.
Protocol Binding
Users can define specific IP addresses or specific application service ports to go through a user-assigned WAN for
external connections. For any other unassigned IP addresses and services, WAN load balancing will still be carried out.
Note！
In the load balance mode of Assigned Routing, the first WAN (WAN1) cannot be assigned. It is to be saved
for the IP addresses and the application Service Ports that are not assigned to other WANs (WAN2) for external
