Chapter 5 Detailed Function Introductions
Setting Function Setting Function
62 Reserved 63 Reserved
64 Reserved 65 Reserved
66 Reserved 67 Reserved
68 Reserved 69 Reserved
70 Reserved 71 Reserved
72 Reserved 73 Reserved
74 Reserved 75 Anti rotor-blocking command (reserve)
76 Zero servo command(reserve) 77 PID output is forced to 0
78 PID integral time reset 79
Command channel switch to Keypad
control
80 PUL: Pulse input 81
Single phase speed measurement pulse or
double phase speed measurement A phase
pulse input
82
Double phase speed measurement B
phase pulse input
Notes to functions listed in Table 5-3-1:
0: NULL: No defined
The defined terminal is invalid. The inverter does not detect the status of the terminal nor response to the
terminal. In other words, the function of terminal is forbidden. To avoid disturbance or mistake action
effectively, define the terminals that are not in use as this function
1~ 5: Operation mode
See P3.15 operation mode setting
In fault state, the inverter can be reset by keypad by pressing “STOP/RESET ” or by terminal on or off, if the
terminal has been set as RST function. In running state, it can stop the inverter according to selection of stop
mode. RST function is active at the rising edge, so it must be operated as “disabled-enabled-disabled”, shown
in Figure. 5-3-1.

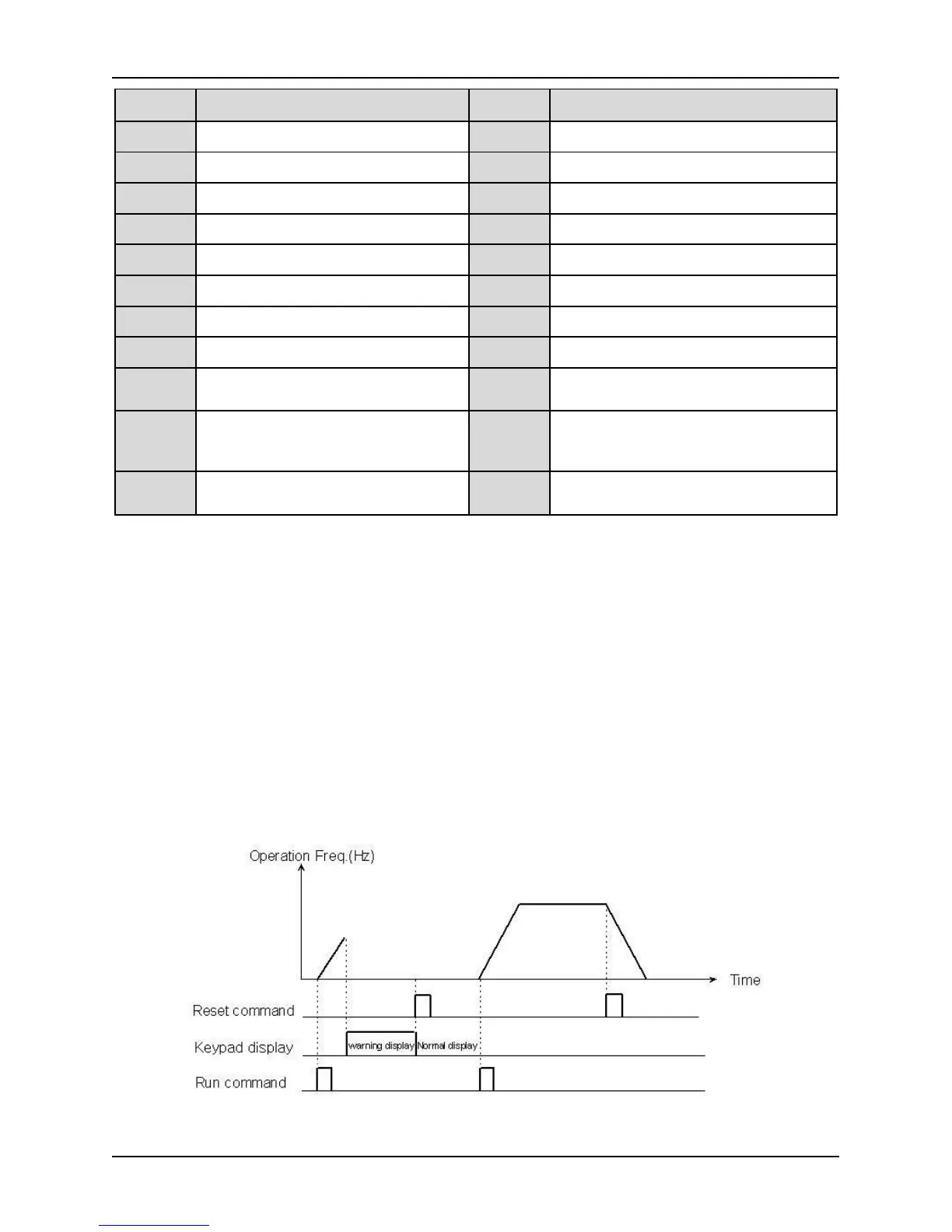

Figure. 5-3-1 Terminal reset
