Alpha 6000S series - 380 V 160-355 KW Standard Inverter Dimensions (Wall Mount)

Appendix 1 External Dimension and Installation Dimension(Unit: mm)
190

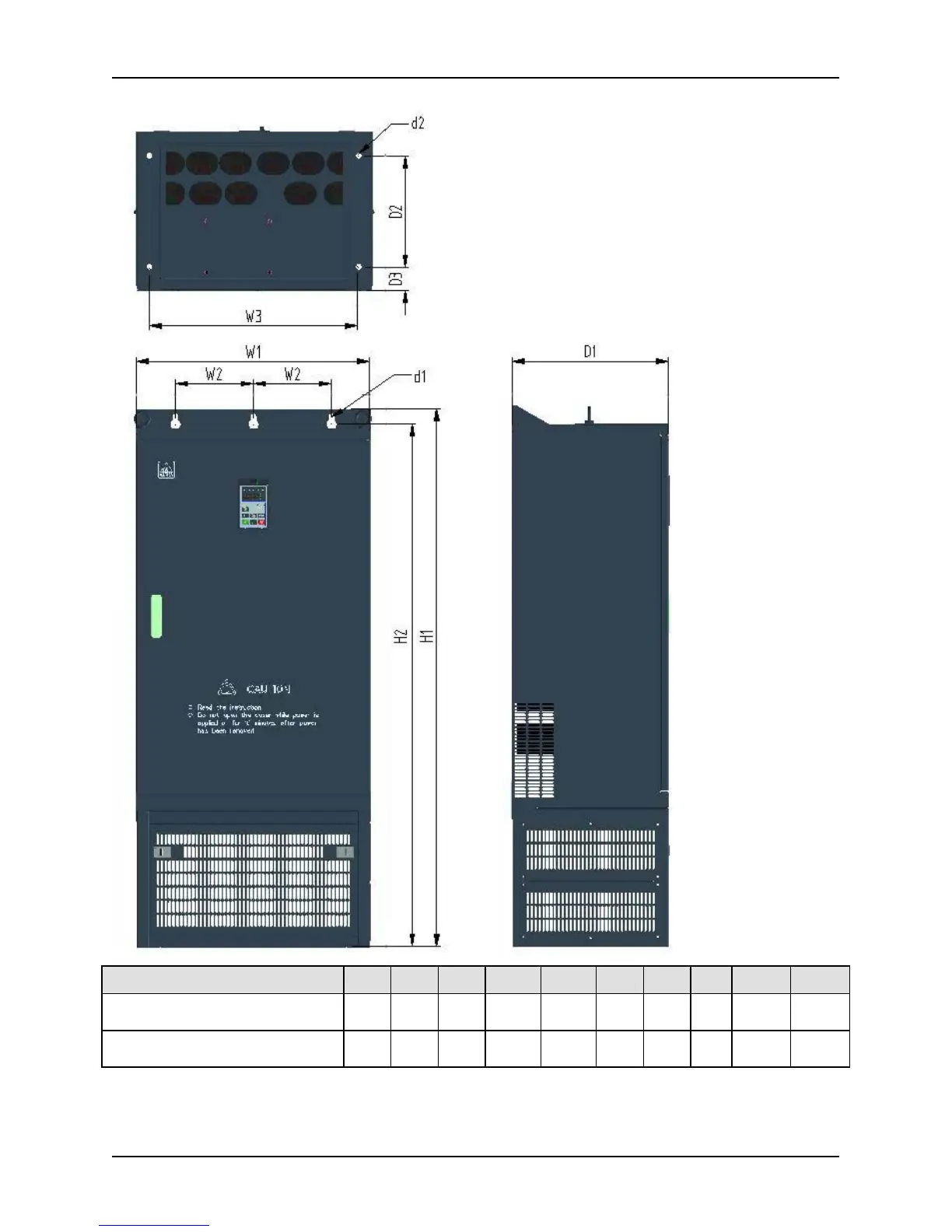

Installation dimension for three-phase 380V 160-355KW standard inverter (with the base):
Specifications W1 W2 W3 H1 H2 D1 D2 D3 d1 d2
3160G-X, 3185G-X, 3200G-X,
3220G-X
600 200 530 1380 1360 400 280 60
3-φ1
4
4-φ1
4
3250G-X, 3280G, -X
3315G-X, 3355G-X
800 300 730 1535 1515 410 288 60
3-φ1
4
4-φ1
4
