Appendix 1 External Dimension and Installation Dimension(Unit: mm)
191

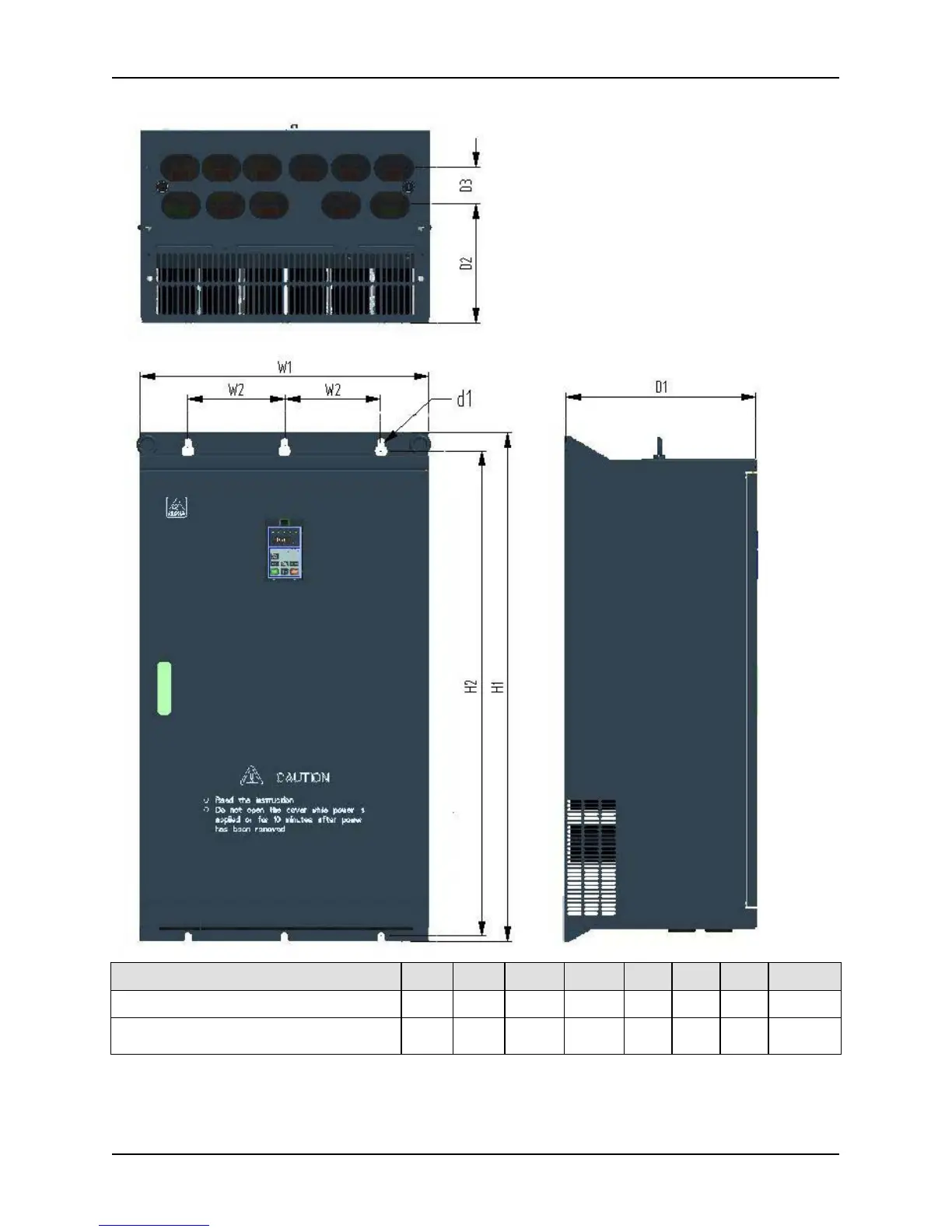

Installation dimension for three-phase 380V 160-355KW standard inverter (wall type):
Specification W1 W2 H1 H2 D1 D2 D3 d1
3160G-V, 3185G-V, 3200G-V, 3220G-V 600 200 1056 1026 400 245 77 6-φ14
3250G-V, 3280G-V,
3315G-V, 3355G-V
800 300 1210 1180 410 250 88 6-φ14
