Alpha PowerBay BDFB - Quad-Bus Input Connections; With Internal RTN; Without Internal RTN

11
C048-740-30 R02, Rev. C (01/2020)
4.4.3 4.4.3 Quad-Bus Input Connections (with Internal Quad-Bus Input Connections (with Internal
RTN)RTN)
The hot and return buses on the quad-bus conguration are
equipped with interconnection jumpers between hot/return positions
1-4 and positions 5-8, thus hot/return input cables are to be
installed only on hot/return positions 1-2 and positions 5-6 on this
conguration (see Figure 12). For more detailed information, refer to
Appendix B and C for input bus and cable layout.
Step 1. Remove the input bus plastic safety covers (see Figure 5 on
Page 9).
Step 2. Install the hot input cables/lugs to hot input positions 1-2 and
5-6 (see Figure 8 on Page 9).
Step 3. Install the return input cables/lugs to return input positions 1-2
and 5-6 (see Figure 9 on Page 9).
Step 4. Bolt all lugs to the bus bars using a at and lock washer.
Tighten all of the hardware and ensure that the lugs are
straight and parallel with each other as they mount to the bus
bars.
Step 5. Reattach the input bus plastic safety covers.
4.4.4 4.4.4 Quad-Bus Input Connections (without Internal Quad-Bus Input Connections (without Internal
RTN)RTN)
The hot buses on the quad-bus conguration are equipped with
interconnection jumpers between hot positions 1-4 and positions 5-8,
thus hot input cables are to be installed only on hot positions 1-2 and
positions 5-6 on this conguration (see Figure 13). For more detailed
information, refer to Appendix B and C for input bus and cable layout.
Step 1. Remove the input bus plastic safety covers (see Figure 5 on
Page 9).
Step 2. Install the external return input connections.
Step 3. Install the hot input cables/lugs to hot input positions 1-2 and
5-6 (see Figure 8 on Page 9).
Step 4. Bolt all lugs to the bus bars using a at and lock washer.
Tighten all of the hardware and ensure that the lugs are
straight and parallel with each other as they mount to the bus
bars.
Step 5. Reattach the input bus plastic safety covers.

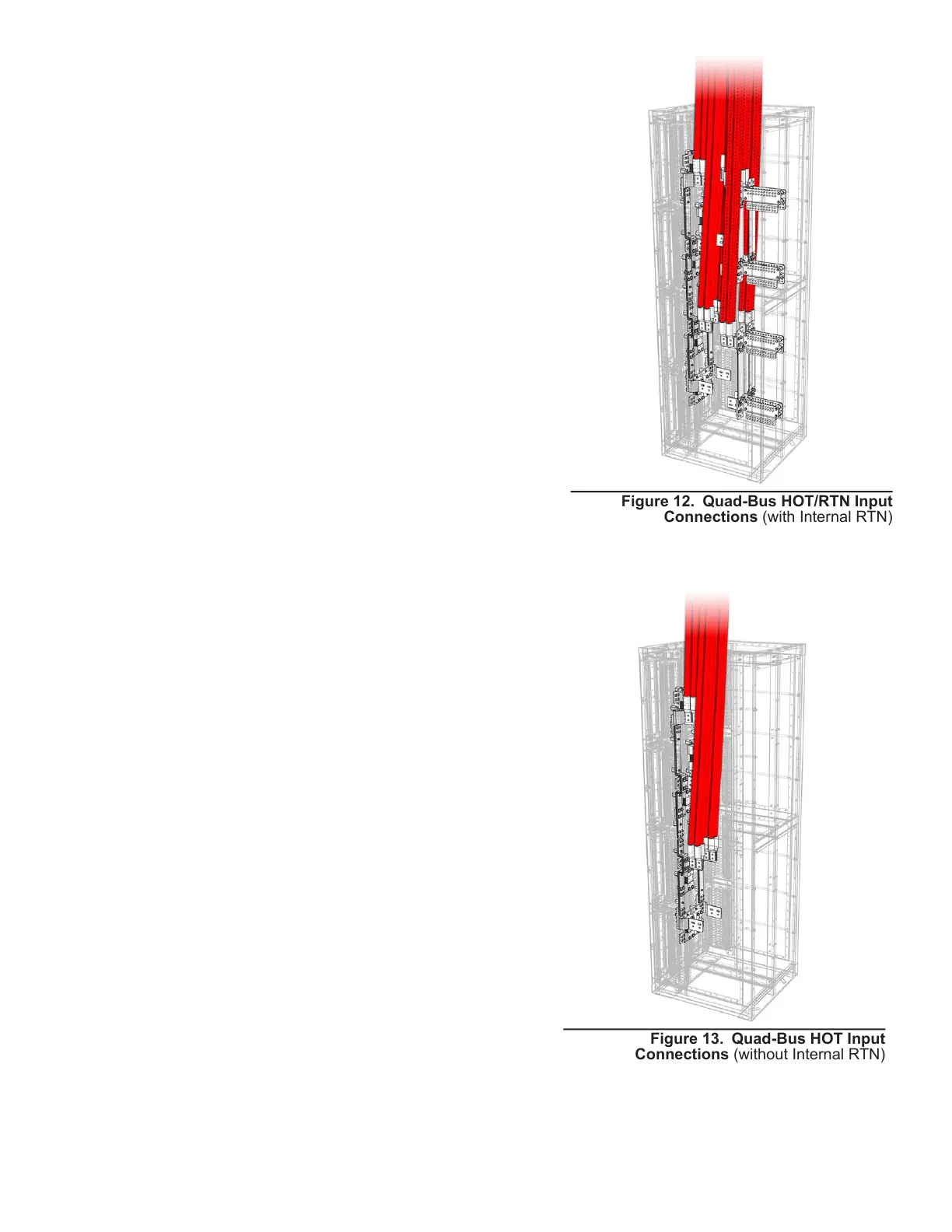

Figure 12. Quad-Bus HOT/RTN Input
Connections (with Internal RTN)
Figure 13. Quad-Bus HOT Input
Connections (without Internal RTN)
